Fujifilm FinePix S4200 LCD Screen Replacement

Turn the camera off.

Turn the camera upside down so that the battery compartment is showing.

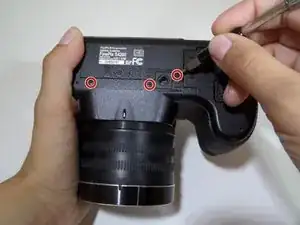

Remove the three 4 mm screws from the bottom of the camera with a Phillips #000 screwdriver.

Rotate camera to the side where the speaker ports are located.

Remove the three 4 mm screws with a Phillips #000 screwdriver.

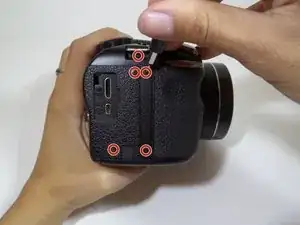

Turn the camera to the opposite side where the HDMI port is located.

Remove all five 4 mm screws with a Phillips #000 screwdriver.

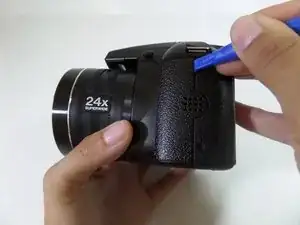

Utilize the plastic opening tool to pry in between the back casing of the camera from the front casing.

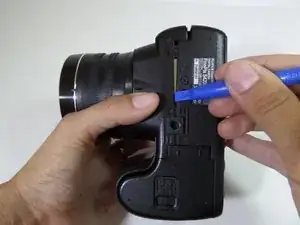

Continue this motion around the camera to create a wedge between the front and back casing of the camera.

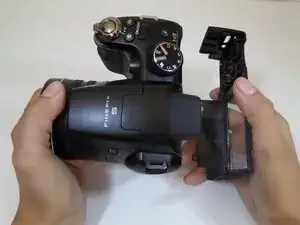

Use force to pull apart the back casing from the camera.

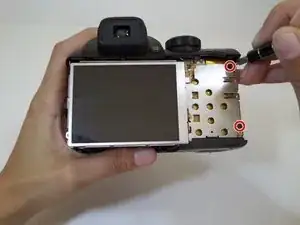

Remove the two 4 mm screws that hold the motherboard and metal plate in place.

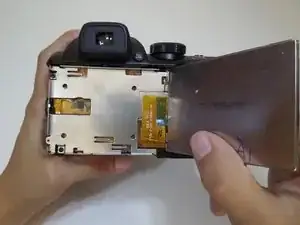

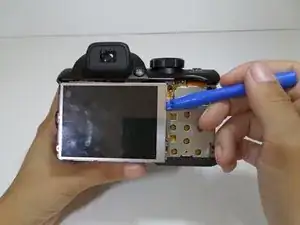

Utilize the plastic opening tool to gently lift the LCD screen away from the metal plate.

Flip over LCD screen so that the left side of the metal plate is visible.

Use a Phillips #000 screwdriver to remove the two 4mm screws that are located on the metal plate under the LCD screen.

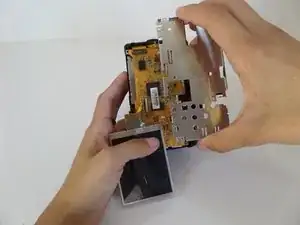

Detach the metal plate from the motherboard.

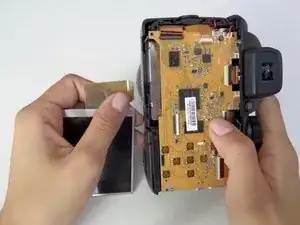

Pull back the small black latch connecting the orange ribbon cable to the motherboard.

Gently remove the LCD screen from the motherboard.
