Fujifilm FinePix S4800 Battery Compartment Door Replacement

Geschrieben von: Lairhe Barreto Paez
  • Kommentare: 2
Fujifilm FinePix S4800 Battery Compartment Door Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

35 Minuten

Einleitung

In this guide, we will give you step-by-step instructions on how to replace the battery compartment door of the Fujifilm FinePix S4800. This involves taking off the rear plastic case of the camera by removing screws and using a plastic removal tool to separate the rear case from the rest of the camera.

  1. Tww2KLZG5q55y5uv

    • Make sure that the camera is powered off before continuing.

    • Rotate the camera so that the label on the base of the camera is facing up.

    • On the battery compartment door, there is a slider that says "open". Slide it down and push the door to the right to release the door.

  2. NWnbm6qTL6wW3ax3
    NWnbm6qTL6wW3ax3
    ZiaVLgHMYI2EFtXu
    WkpSsx2jKjsdJePP

    • Remove all four batteries and set them aside.

    • When replacing the batteries, be sure to note the markings on the face of the battery compartment. These markings let you know which side of the battery ("+" or "-") needs to be facing up in each slot.

    I chose kazino vulkan for myself https://vulkanvegas-102.com/ru I seem to win often. And you can play in this game club not only for fun, but also to earn money. Already got all my friends hooked on gambling. I recommend to come here!

    Denis -

  3. ZYRZ4RFV3IHacVDX

    • Remove the three 5.0 mm JIS #000 screws on the bottom of the camera.

  4. 6mex6lALBpLjnmMo

    • Rotate the camera so that the HDMI port is facing up.

    • Remove the two 5.0 mm JIS #000 screws.

  5. nWKrAfDZPcMmRQFv

    • Rotate the camera so that the text "30x superwide 24-720mm" is facing up.

    • Remove the two 5.0 mm JIS #000 screws.

  6. IKNPka5ZoAc3LFVU
    IKNPka5ZoAc3LFVU
    DEQoR33xGRiGCK5l
    iRXsoJdNYgwTnHtT

    • Press the pop-up button highlighted in the picture to release the flash mechanism.

    • Remove the two 5.0 mm JIS #000 screws highlighted in the picture.

  7. 2HB1W6xKm4IrcB2a
    2HB1W6xKm4IrcB2a
    qRCfZ4LHuMxC4uPS
    Mp533T2Be4YRROM5

    • Use a plastic opening tool to separate the rear case from the camera on each of the sides until the panel is completely separated.

    • The plastic case is fragile, so take your time on each side making sure to pry each side evenly as you continue around the camera with the tool.

  8. 6hw16DTGFbmXiUPH
    6hw16DTGFbmXiUPH
    RNPGVmCZRLDYqIlm

    • Gently, remove the rear case from the camera and set it aside.

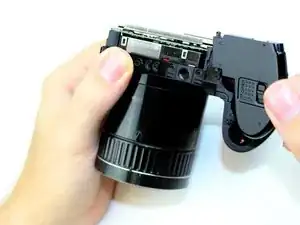

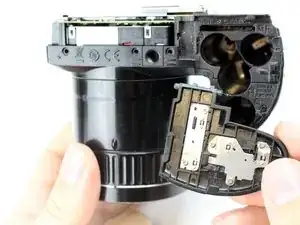

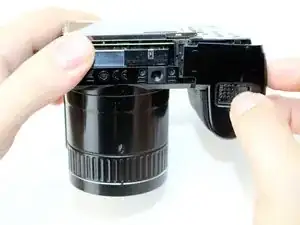

  9. ibAc14TZgpYwOlUQ
    ibAc14TZgpYwOlUQ
    kEhLJtg4DHXqVx2M
    pVa2anNS3ES4Xuhx

    • Once the rear case is removed, gently separate the battery compartment door from its position.

    Great photoapart that can be used not only for portrait photos. It can also be used for research on geography homework assignment .

    SueBeard -

Abschluss

To reassemble your device, follow these instructions in reverse order.
