Fujifilm FinePix XP70 Back Button Replacement

Geschrieben von: sandino santos
  • Kommentare: 0
Fujifilm FinePix XP70 Back Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will enable the user to replace the back panel buttons in the FujiFilm FinePix XP70.

  1. DXK4eETrcZcI1NTB

    • Power off the camera.

    • Leaving the camera on while removing presents the risk of electrical shock or permanent data loss.

  2. pSFQyXJRIa52bnPk
    pSFQyXJRIa52bnPk
    EBLulJFh1oXhLUlW

    • Push down on the center button and turn the dial on the side counterclockwise to open the battery compartment.

  3. q4QODmbP3T2KBVXp

    • Pull the orange tab towards the hinge to release the battery.

  4. XB1JyiicnVhCYgKB
    XB1JyiicnVhCYgKB
    iGA4s4Q4mrbyIouD

    • Pry the black button plate off using a plastic opening tool.

    • Buttons can fall out easily.

    • It's easiest to start from the side exposed by an open battery compartment.

    • When putting this plate back on, orientate the buttons as shown to properly fit back into the plate.

  5. VuOI3aYFhA45wbyq

    • Pull the three buttons out.

  6. HN2BZPGVlRGC4BMg

    • Remove one Phillips screw with a Phillips head 0 screwdriver

    • Remove one hex head screw with a hex 1.3 screwdriver bit.

  7. Zx5KYofO4mVetxmJ

    • Unscrew two 4.0mm long hex head screws with a hex 1.3 screwdriver bit.

  8. NTTKXehFYncYqoko

    • Unscrew five 4.0mm screws with a Phillips head 0 screwdriver

  9. dul1cygZGXQyFYXQ

    • Pry the black bottom plate off using a plastic opening tool.

    • It is easier to start on the side of the open battery compartment.

  10. USc3eFs2mEcXBQRd
    USc3eFs2mEcXBQRd
    P6Q1rSjr1ZUBLILj

    • Pry the front plate off using a plastic opening tool.

    • It's recommended to start at the ridge on the top or bottom side.

  11. RyMoc21b5ZkCEAm2

    • Lift off the front plate.

  12. MoJSZ4h6DlemHyVP
    MoJSZ4h6DlemHyVP
    nEAEAhQS1ePlsPXy
    mskgIRwCvfsK1GFG

    • Pry the back plate off with a plastic opening tool

  13. iLDUBclr3tu2cHVq

    • Pry the two latches off using a spudger.

    • It takes some force to pry the latches off, so be careful to not break them.

  14. PtxV3mfMwFo4DT1S
    PtxV3mfMwFo4DT1S
    6VQC6PNhrJXv1eGl
    uAKmrlcKjf5tOSmM

    • Pry the remaining latches with a plastic opening tool.

    • It's best to start on the opposite side. Then pry off the top and end at the bottom.

    • It may take some force to remove this, but be careful to not break the latches off.

  15. LtVUGlqypuiFcZFu

    • Pull the two halves apart.

    • Reattach the LCD ribbon cable into the slot before closing the halves when reassembling.

  16. QiCMdtLApQBJyBwZ
    QiCMdtLApQBJyBwZ
    ZSqxyAFaCP5WmEZQ

    • Unscrew seven 4.0 mm screws with a Phillips 00 screwdriver.

    • Unscrew four 3.0 mm screws with a Phillips 00 screwdriver..

  17. BlAMCTOXXkgARUDW

    • Lift of the metal panel using a plastic opening tool.

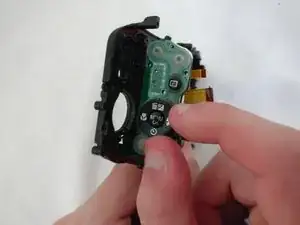

  18. aQpFfPSVNKgEWPiy

    • Remove the desired button(s).

    • Handle the buttons with care since they easily fall off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
