The optical lens is frequently reported as 'not working' or broken. This guide will take you through the steps of removing the malfunctioning lens and installing a new one.

  1. 2FWxewnsRSDXy3bo
    2FWxewnsRSDXy3bo
    CcsjUYJwdvTNtxLX
    mB2ruR3LsDFWZwhW

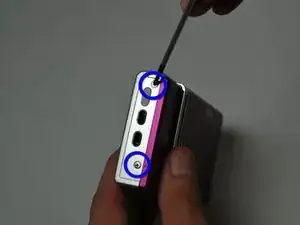

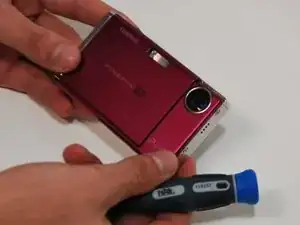

    • Remove the two screws from the right side of the camera and the two screws from the left side.

    • Use a small #00 Phillips flat head screwdriver.

    • Keep all the screws in a container and the two different types separate.

  2. bKprPG1DmRBkKqM2

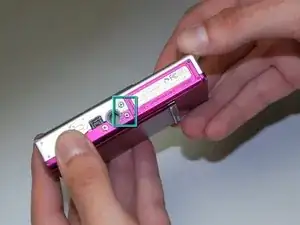

    • Remove the three screws from the bottom of the camera.

    • Use a three-prong screwdriver for two of the three screws; keep these screws separate.

  3. DAppcCVukNOFiheH
    DAppcCVukNOFiheH
    yOnjklhRLfBWnnLb
    DuHcWwOnPRwiIQWM

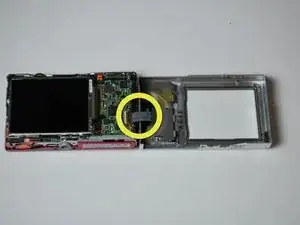

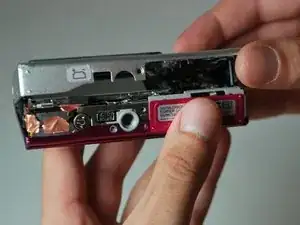

    • Remove the back by carefully flipping it open to the right side.

    • There will be a ribbon cable attaching the front panel to the motherboard, be sure not to tear this.

  4. XM36kCHJxJJnxpv1
    XM36kCHJxJJnxpv1
    wFSObcSUq3mVowKO

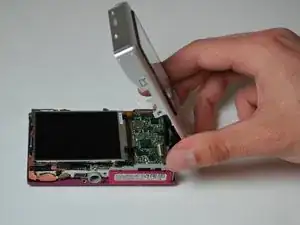

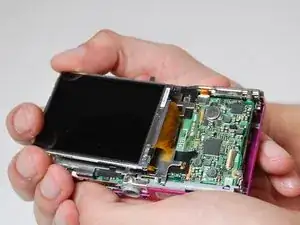

    • Pull the LCD screen to the left slightly, then lift and flip it open to the right.

    • There is an orange ribbon cable attaching the LCD screen to the motherboard, be careful not to tear it.

  5. clsgdBLEQMUpdpZH
    clsgdBLEQMUpdpZH
    nxCkPei4oNdLwkHv

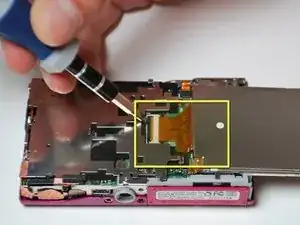

    • Using a plastic opening tool to flip open the black lever to release the ribbon cable.

    • Gently slide the cable out of the lock; the LCD screen is now free to be removed.

  6. CsPO35DESWSgPIJw
    CsPO35DESWSgPIJw
    ccZLMY2yPmBLWMJX
    5Hlabmi5W6mSMoTS

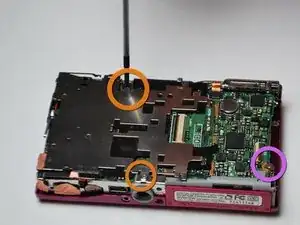

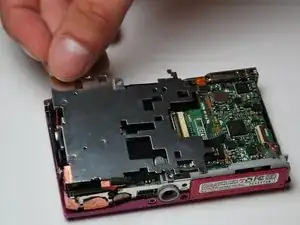

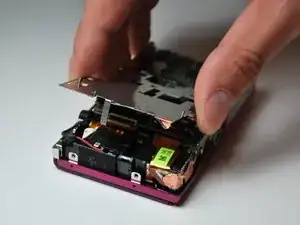

    • Remove the two screws that are holding the silver paneling on.

    • There is a gold foil which will tear upon removal of the silver paneling, this is normal.

    • Remove the screw anchoring the motherboard on the right.

  7. vIXH5S1PkDQOSfYj
    vIXH5S1PkDQOSfYj
    IxjlWck6rcAaXBgw
    wZw2TkvgQXvyCE1O

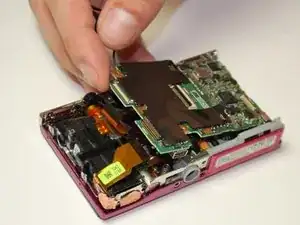

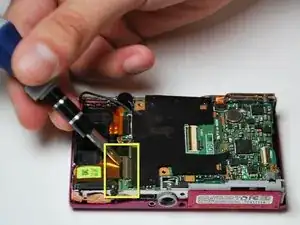

    • Detach the two ribbon cables on the left side of the camera the same way the LCD cable was detached.

    • Detach the gold ribbon cable on the top middle of the camera as well.

  8. ZmVFbTHS1IyR1kTj
    ZmVFbTHS1IyR1kTj
    VsCSDxYtX5FDEZYG
    SFoZfPDIVxvfSGfi

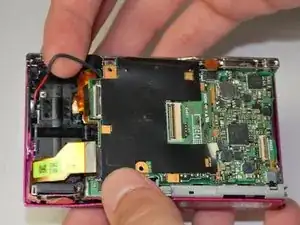

    • Hold wires on the left with an index finger, to keep them out of the way.

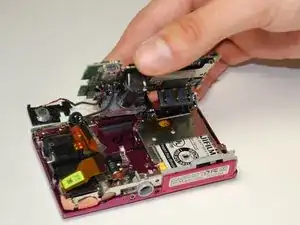

    • Carefully wiggle out the motherboard. The flash and the speaker will come with it.

    • Make sure you have a motherboard that includes the flash and the speaker; these items are both soldered onto the motherboard.

  9. wTHDJmhFjtgxPdrL
    wTHDJmhFjtgxPdrL
    Wlp6cPwlmdRKLace
    AcaNevsCb6ValElW

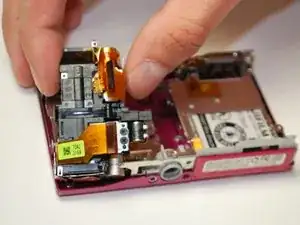

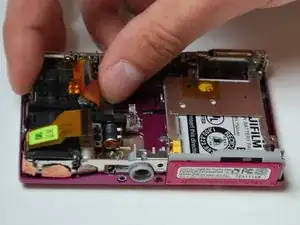

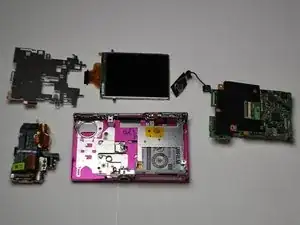

    • Lift the lens off of the camera base (there is nothing anchoring it down).

Abschluss

To reassemble your device, follow these instructions in reverse order.
