Fujifilm Finepix F10 6.3 MP Lens Filter Set Replacement

Geschrieben von: Sarah Looper
  • Kommentare: 0
Fujifilm Finepix F10 6.3 MP Lens Filter Set Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

The lens filter set is responsible for the correct color filtering of the pictures taken. To get to the filter set, remove the electrowind tape and remove the screws holding the lens filter set in place.

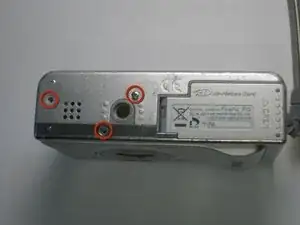

  1. oUf1OCsjs6yPV3rd

    • Remove the screws from the bottom of the camera using the tri-wing screwdriver.

    • Three 5.4 mm tri-head screws.

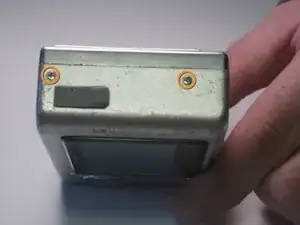

  2. vYvEOCpPE556JBkT

    • Remove screws from charger side of camera using the Phillips 00 screwdriver.

    • Two 3.3 mm Phillips #00 screws.

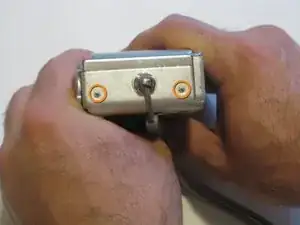

  3. NEmroc6JiBOLIkDP

    • Remove screws from wrist-strap side of camera using the Phillips 00 screwdriver.

    • Two 3.3 mm Phillips #00 screws.

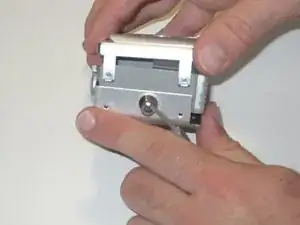

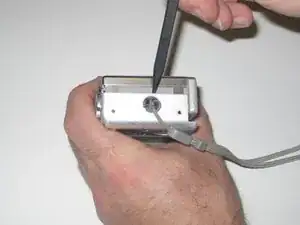

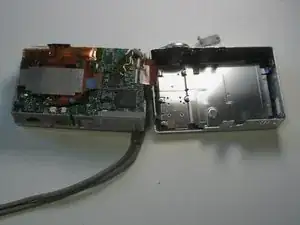

  4. Wy2WfSHwavFCkbKV
    Wy2WfSHwavFCkbKV
    YUrDJoGZRc2rARml
    23BrnBQDqrhbwbCE

    • Separate the front and back casing using the spudger.

    • Gently pull apart the two casings.

    • Pull the back casing away from the camera.

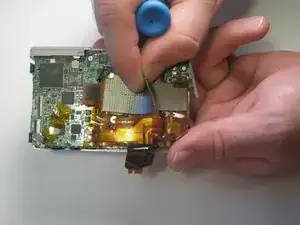

  5. ONDEK1aAYcEbuDLA
    ONDEK1aAYcEbuDLA
    NydXqTvdfeCMgrqP

    • Remove electrowind strip from font cover.

    • The front cover does not have to be separated from the device for this step or the next ones.

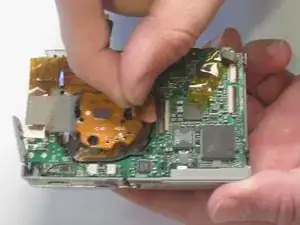

  6. BKOTIx1eTBq4vYxl

    • Remove lens data cable by gently pulling it out.

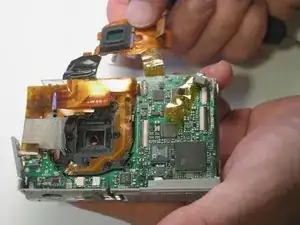

  7. Ee6fnHpimcVXALrX

    • Remove lens filter.

    • There are multiple square pieces, so be sure to remove them all.

Abschluss

To reassemble your device, follow these instructions in reverse order.
