Fujifilm Finepix S1800 Shutter Button Replacement

Geschrieben von: Ryan Rockford
  • Kommentare: 2
Fujifilm Finepix S1800 Shutter Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

Is the button to take a photo on your Fujifilm Finepix S1800 jammed or broken? This guide will show you step by step on how to replace the jammed or broken button.

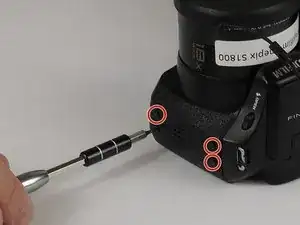

  1. V11CkWYR3HUROEhG

    • Use a J000 screwdriver to unscrew all the four 4mm screws on the left-hand side of the camera.

  2. TMsLQEvHtpTmFiYl

    • Use a J000 screwdriver to unscrew the four 4mm screws on the right-hand side of the camera.

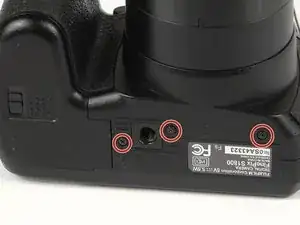

  3. m2qRLxeKBsYSXVFe

    • Use a J000 screwdriver to unscrew three 4mm screws on the bottom of the camera.

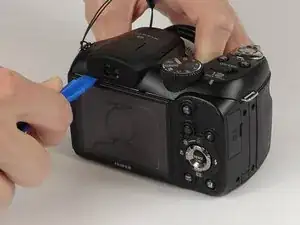

  4. TjkM3xTrySaQxV1S
    TjkM3xTrySaQxV1S
    cBlZUjiRreZnHfGL

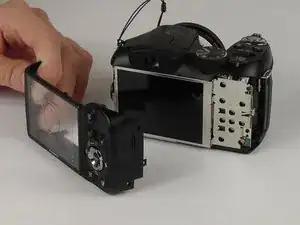

    • After all the 4 millimeter screws are taken out, take plastic opening tool and the cover will pop out.

    • You may have to work the back cover from different sides to get it to pop off.

  5. FvJFRBjZ26mRQg1O
    FvJFRBjZ26mRQg1O
    dhhO2lNcIpSrqa3T

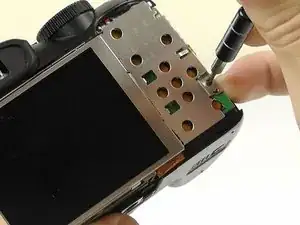

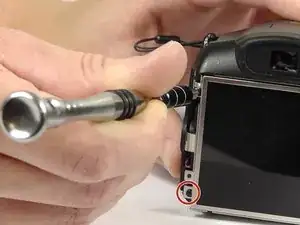

    • Use a screwdriver to remove the three 2 mm screws from the back cover plate.

    • Gently lift the back cover away from the device, but do not pull or yank free.

    • The LCD screen is still connected to the motherboard via a small ribbon cable.

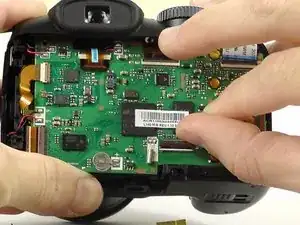

  6. NUDSiRJF6KX5dJuI

    • Move the lever to disconnect the ribbon cable from the circuit board.

    • Avoid ripping the fragile micro ribbon cable.

  7. 5QqNCCRsttHjsaKM

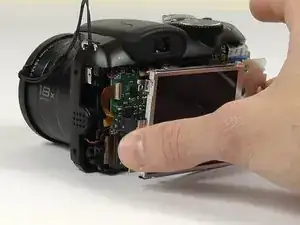

    • Gently remove the LCD screen. Avoid touching it directly.

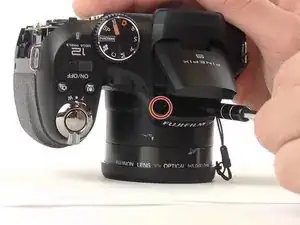

  8. vOZZZ2fdM5SwMvWV

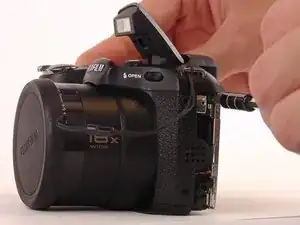

    • Lift the flash.

    • Using a J000 screwdriver, remove the two 4mm screws from the top of the camera.

  9. xpaSaAFGXct2vGix
    xpaSaAFGXct2vGix
    i6duMxq5ZhNK4OGI

    • Remove the 4mm screws from the left and right sides of the camera.

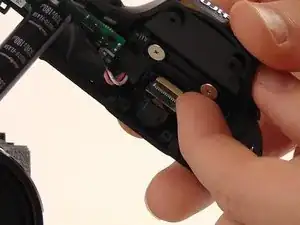

  10. ZVDUkrLlDRUyRXJu
    ZVDUkrLlDRUyRXJu
    IEJo5kONpZuHHMNL

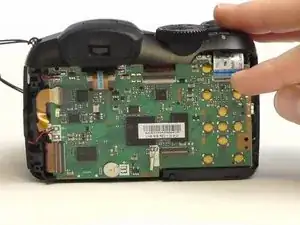

    • Switch the lever to disconnect the micro strip that connects the top plate.

    • Use caution to avoid ripping the micro strip.

    The second photo is after the top cover is removed. I’m repairing a s1600. The lens is stuck. But this guide and inside looks almost 100% the same as my s1600. Only thing is: i can’t remove the top cover. Removed all the same screws but the only difference is the lcd has no screws. Anyway the only screws I haven’t removed are the once inside the battery case (the 2 extra in the flash, not done here are also removed) Anyway the topcover looks stuck. And i’m going to try a plastic prying tool. The battery screws are very short. Maybe they are the problem but they look like they only hold the spring bumpers for battery. It must be difficult to put these bumpers back. But I must say I did 1. And the bumper is not falling out. So try those 3 screws first and then pry open the top.

    Rogier Keller -

  11. k1F3A2DeOa1nsJCX

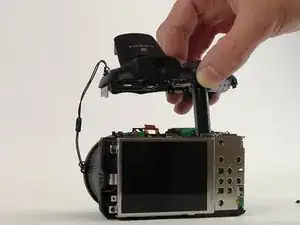

    • Remove the top cover.

  12. cMBhoeQkYAxe5S3b

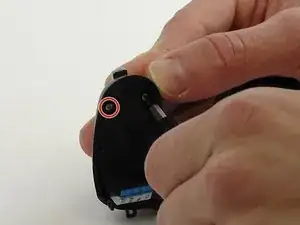

    • Once the top plate cover is taken off, take the screwdriver and unscrew the two 2 millimeters screws underneath the plate.

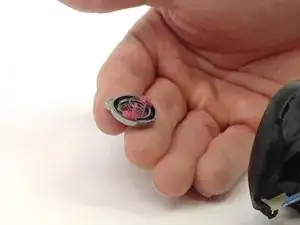

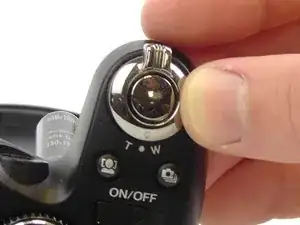

  13. V26m1Hv6s2JMIEph
    V26m1Hv6s2JMIEph
    1HhpnFSTiOB6KWuT

    • Once the two 2 millimeter screws are out the button will fall right out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ryan Rockford

Mitglied seit: 15/02/17

597 Reputation

Ein Kommentar

CAUTION! Different hardware versions! Following this guide might destroy your camera!

My S1800 had LCD not screwed to the body, but glued to the back cover. At the step 4 it came off together with the cover, destroying the ribbon cable, which is really short and fragile.

AntonG -
