Fujifilm Instax Mini 8 Flash Unit Replacement

Geschrieben von: Boyang Wu
  • Kommentare: 12
Fujifilm Instax Mini 8 Flash Unit Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

The main purpose of this page is to assure the owner of a Fujifilm Instax Mini 8 is capable of disassembling the camera in order to remove and replace the flash unit, if there was to ever be any problems with the flash. Before attempting repairs, please take note of certain risks of receiving shock from the camera's flash capacitor. Also make sure to ground yourself before operating on the camera's motherboard or you might discharge static to crucial components.

  1. 2XXxVtITjgAMPUqi
    2XXxVtITjgAMPUqi
    4HydBPlN2tmSrmSj

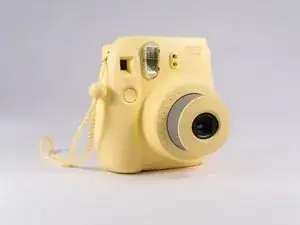

    • You start off with the camera.

  2. TRsDKwuYYZbGmvbU
    TRsDKwuYYZbGmvbU
    thj5VIRVOq4JRghW

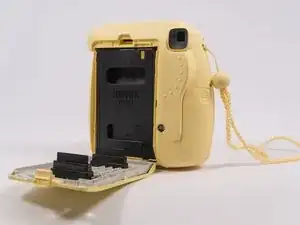

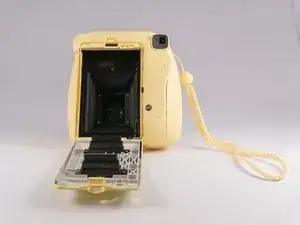

    • Open up the back and remove the film cartridge.

  3. MfZJtNIxHZvFwank
    MfZJtNIxHZvFwank
    fD36nwG5qL2MYVKG

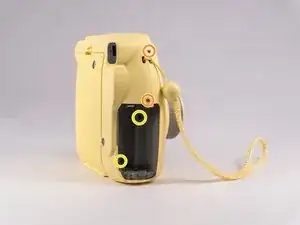

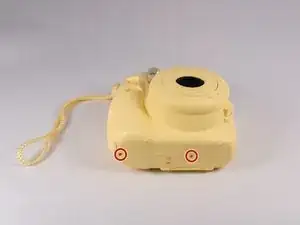

    • Remove the two Phillips #00 screws from the bottom of the camera.

    • Remove the two screws on the side of the camera.

    • Additionally, there are two screws in the battery compartment which also need to be removed.

    There is also a screw underneath the cover for the picture eject slot

    Interessierte Salzgurke -

    I had the same problem with my camera which I have had for about 10 years now all the red lights on my camera came on and I could not use my camera to FIX this problem you need to turn the camera on and replace the batteries with new batteries and this will reset your camera I did this last night and my camera is as good as new now

    Serena -

  4. 6QaPa1jworPEP1IA
    6QaPa1jworPEP1IA
    jPfopBdAuXyfKHDn
    6vb2ARyxogRe4kIE

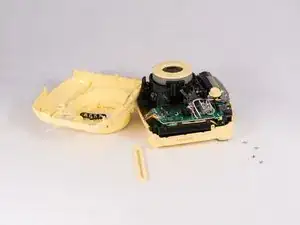

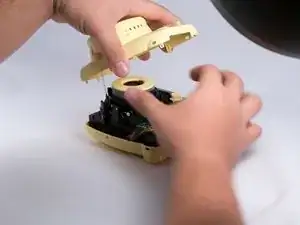

    • Once all screws are removed, gently pry open the front casing with your hands or a prying tool.

    • There will be a spring that attaches the front casing and the main circuit board, so take care as to not break the spring.

  5. 42pOAZyGnQTL4jBG

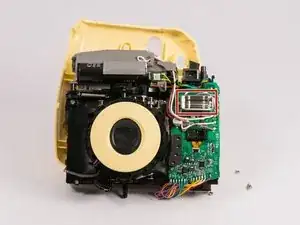

    • You should now be able to see the flash unit. Take care to not touch the large black capacitor on the top. It will still have a charge and will hurt.

  6. u3kfZGSeRUBUKcfb
    u3kfZGSeRUBUKcfb
    VFSiFFy5iwxKXeKZ

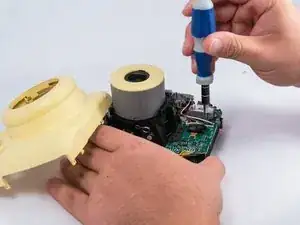

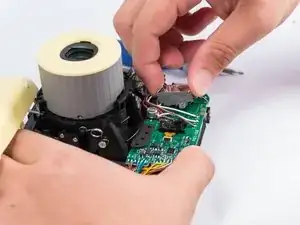

    • Unscrew the two screws attaching the flash to the main circuit board. The flash unit will detach away from the motherboard, now leaving just the connecting wires to remove next.

  7. QD6ePxnpAwQ46jDP
    QD6ePxnpAwQ46jDP
    LR2OmmCQwMbkj5Wo
    wFZqHKDhk1oQWYd1

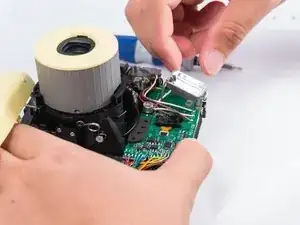

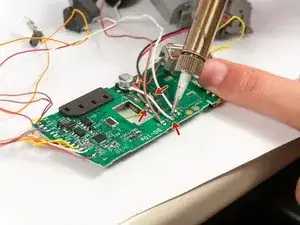

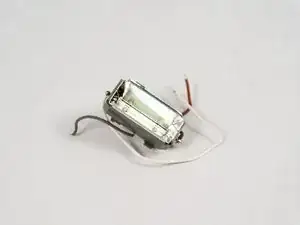

    • With a solder kit, heat the connecting solder points to open the connection, thus removing the connecting wires. There are many ways to do this, depending on the available tools on hand.

    Where can i get a spare flash unit from?

    Jannis Jacob -

Abschluss

To reassemble your device, follow these instructions in reverse order.
