Fujifilm Instax Mini 8 Gehäuse tauschen

Geschrieben von: Boyang Wu
  • Kommentare: 19
Fujifilm Instax Mini 8 Gehäuse tauschen

Schwierigkeitsgrad

Mittel

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

Das Kameragehäuse ist die Außenseite aus Kunststoff des Fujifilm Instax Mini 8; es enthält Kabel, schützt den Film und hält die wichtigsten Teile der Kamera zusammen.

Ist das Gehäuse beschädigt, können auch andere Teile der Kamera nicht richtig funktionieren und könnten ebenfalls kaputt gehen.

  1. CVMfpJGRVTSfiQRX

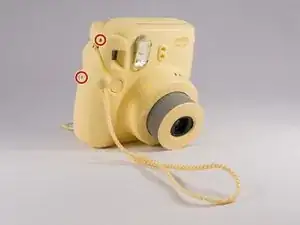

    CVMfpJGRVTSfiQRX

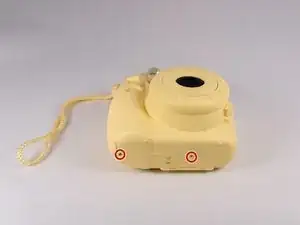

    vRvFGMsDsTY2BU2Q

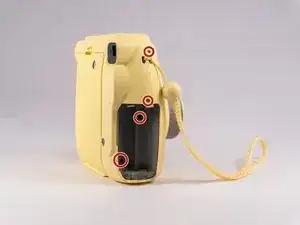

    VhDO2ZXoIwPZwaPu

    • Beginne mit der Reparatur, indem du dir deine Kamera anschaust und alle Schrauben suchst. Es sollten insgesamt 8 Schrauben sein.

    This doesnt show it but there is a screw under a plastic "pop out" cover where the photo comes out at the top

    Margaret Compton -

  2. sE6BCCnTQnevPvuN
    sE6BCCnTQnevPvuN

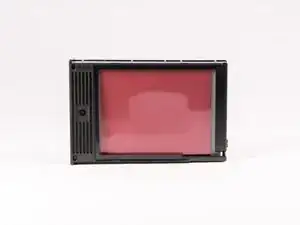

    gPViBE4P1xVjOpbr

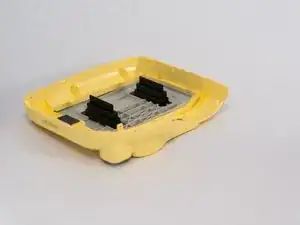

    r2SAKjOwYNUfBKie

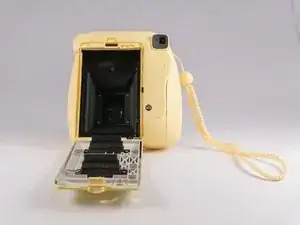

    • Drücke auf die Lasche, um den Verschluss des Filmfachs zu entriegeln.

    • Entferne den Film, falls einer vorhanden ist.

    • Entferne die Abdeckung komplett.

    • Nutze den kleinen Kreuzschlitzschraubendreher #00, um die Schrauben gegen den Uhrzeigersinn zu herauszudrehen.

    How do i remove the compartment cover?

    lucy jane holman -

    With the film door closed, try inserting the opener tool into the seam between the camera front and back plates on the side closest to the film door hinge, and start working your way around the camera.

    Remember there’s another screw under the small oval plate covering where the pictures pop out.

    Robert Foss -

  3. t63uvOCcZbv5XqSG

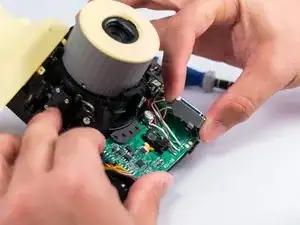

    t63uvOCcZbv5XqSG

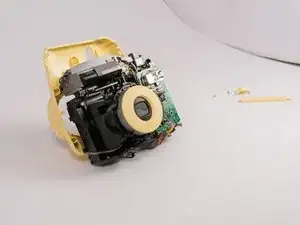

    opZxhSGmIkDHxQDf

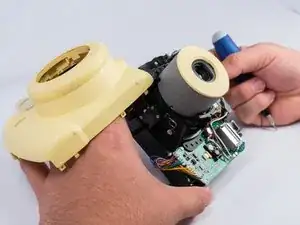

    5nKxbmkb4gPuEcjP

    • Nutze die Öffnungswerkzeuge aus Kunststoff und den Spudger, um das vordere Gehäuse vorsichtig zu entfernen.

  4. 4uhDYfkCsM2xEGJh
    4uhDYfkCsM2xEGJh
    Yrjim3pndPyMV1eb

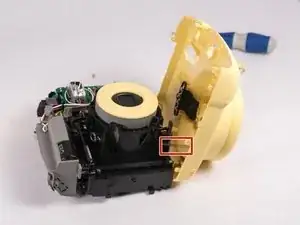

    • Hebe das Vorderteil des Gehäuses vorsichtig hoch. Ziehe nicht zu stark, im Inneren befindet sich eine Feder zwischen dem Gehäuse und dem Inneren der Kamera.

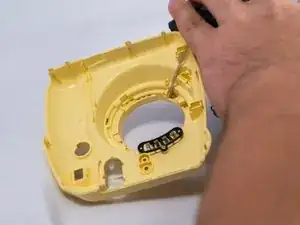

    • Entferne vorsichtig mit einem kleinen Kreuzschlitzschraubendreher die Feder aus dem Gehäuseinneren.

    • Jetzt sollte das Gehäuse komplett geöffnet sein.

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten dieser Anleitung in umgekehrter Reihenfolge.

Tinte & Feder

Boyang Wu

Mitglied seit: 02/10/12

901 Reputation

16 Kommentare

For removing initial screws, there are 9 screws. The 9th screw is under the cover overlying the exit of the Polaroid film area. (hidden under the cover)

princesslsy -

but where near the exit? i cannot find it

Emily Birkler -

It's at the top of the camera where you get picture.

xxx -

I need the circular yellow plastic piece that goes around the lens. How can I obtain that? How do I attach?

jason81173 -

I've drop my instax mini 8 at the airport and it looks perfectly fine at first until I realized that the film compartment has broken and it can't close its 'door', but the instax still can be use just need to press the door against the film everytime I used which is annoying. Does anyone know how to fix it?

Siti Syuhanna hussein -

Did you find the replacement part?

Alber Einstein -

I accidentally got sand under the shutter while I was at the beach, and now the button won't click. How do I fix this?

Julie v -

where do i find the circular plastic piece online how do i find it? what website? what shop?

albert instine -

Lens cover, over front of lens, fall off How do i put back on. Fuji instax mini 8

Marie M -

pls help. battry leak. corrossion. forgot to remove. 1x use palang. what can i do?

Gie Britanico -

you can use vingear and cotton buds to clean the white stuff and then wipe with alcohol; goog;e clean battery leak in youtube then you will know what to do

kit kat -

That final spring is broken on my camera. Do you know what the specs of it are so that I could get a replacement?

Jack Murgatroyd -

HI Jack, I have the same issue, where did you find the spring at the end and what are the specs?

kit kat -

hi i lost the spring to the outershell. where can i buy the replacement and what size of the spring should i get?

kit kat -

The mini 9 has one extra screw. You need to pop off the ‘frame’ at the top around where the picture comes out. There is one more hidden screw there.

Neil -

A few missing parts in the assembly that might help if your camera "explodes" on opening:

- The metal flat spring goes under the shot button. As for the button, there are different diameter holes, so is easy to fit properly. Just test clicking feels

- The "black square" part goes under the strap holes, clipped between shell and chassis (you can place it after fitting the front shell)

- The long spring can "disappear" hidden in the front shell after you unclip it from the lens. No panic, you can easily find it opening from the inside of the shell, the front ring cover with the lettering (it has 3 adhesive pads, plus the tabs). With the cover out is very easy to assemble, fitting the spring first in the lens and letting it go straight into the front (youtube video "FUJIFILM instax mini9./error prob. very easy.").


Please, be very careful manipulating the motherboard. This capacitor has high voltage and keeps charge for ages, it can shock you several times and it is quite unpleasant (don't ask how I found it).

Jose PS -
