Fujifilm Instax Minion Lens Bellow Replacement

Remove the six 4.5 mm #00 Phillips screws from the bottom, left, and right sides.

Use a spudger to remove the film slot guard on the top of the camera.

Remove the one 4.5 mm #00 Phillips screw under the slot guard.

Press the release tab on the back of the camera to open the film compartment.

Remove the film cartridge within this compartment.

Press the battery cover in and down to remove it.

Remove any batteries within.

Use a plastic opening tool to help pry the front and back shells apart.

With the camera facing down, remove only the back shell.

Carefully peel the front side of the shell away.

Using a set of tweezers, detach the spring from the body. The spring will retract into the black and gray ring on the front shell.

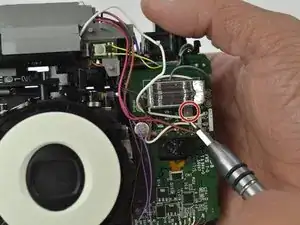

Once the shell is off, remove the two 4.5 mm screws from the circuit board using a Phillips #00 screwdriver.

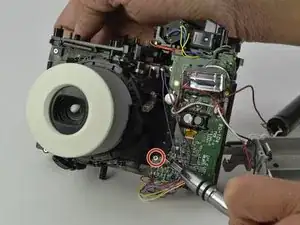

Once the circuit board is off and to the side, remove the four 4.5 mm screws that are around the front lens case using a Phillips #00 screwdriver.

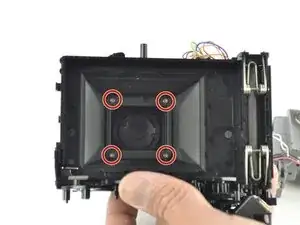

Turn the camera onto its back and remove the four 4.5 mm screws attaching the lens bellow to the case using a Phillips #00 screwdriver.

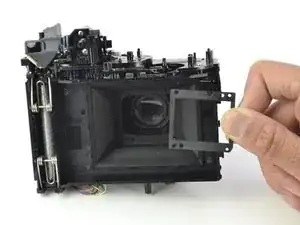

Remove the rectangular screw casing from the back of the camera.

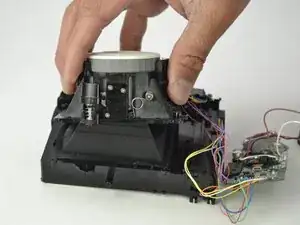

Flip the camera over to its front side again and remove the lens casing by lifting it up and off the camera.

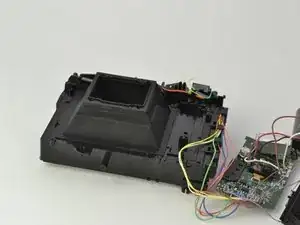

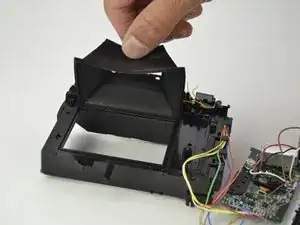

Finally, remove the lens bellow by lifting it up and off the camera.
