Einleitung
If you lens has been damaged, follow these steps to replace it. The lens may be damaged if the camera is dropped or exposed to harsh conditions.
Werkzeuge
-
-

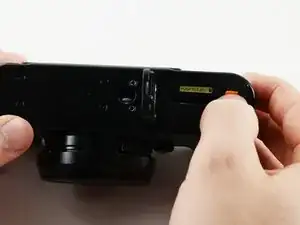

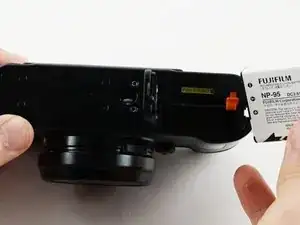

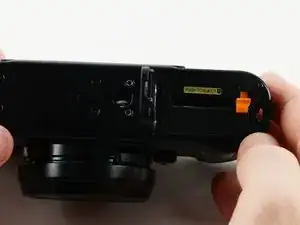

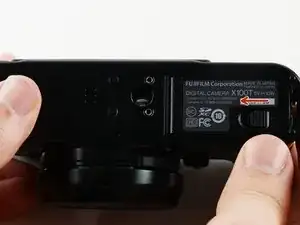

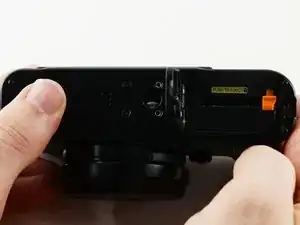

Slide the small black tab on the bottom of the camera to the left to unlock the battery cover.
-
-
-

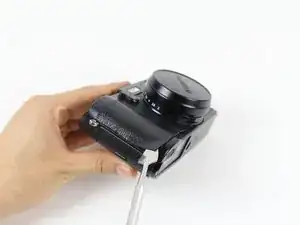

Beginning in one of the corners, use a spudger to pry the leather casing off of the camera.
-
-
-

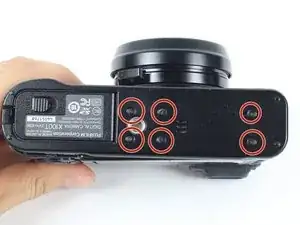

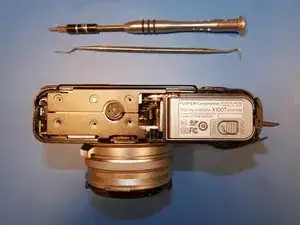

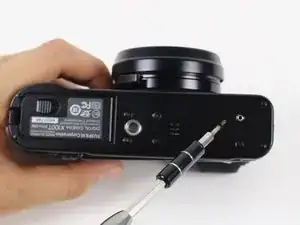

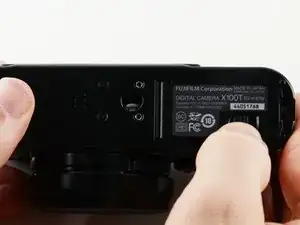

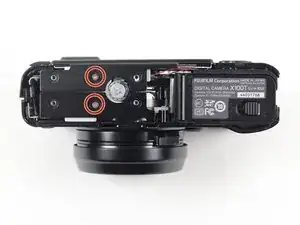

Locate the six 4.0 mm screws on the bottom of the camera.
-
Use a JIS#000 driver to remove these screws.
-
-
-
This is a camera produced by a Japanese camera manufacturer. The Japanese camera industry loves using JIS (Japanese Industrial Standard) screws.
-
Don't be tempted by your Phillips screw driver collection. Although PH#00 will interchange with JIS#00, it is not a perfect fit. Using Phillips will cause more wear on the head of the JIS screws and cause the screws to prematurely strip.
-
Have both JIS#00 and JIS#000 screw drivers available for this teardown. Luckily, both bits are included in the ifixit 64bit kit.
-
-
-

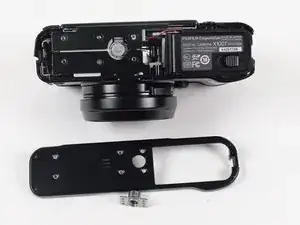

Remove the bottom plate and the tripod mount by lifting them using your hands.
-
The tripod mount is keyed and fits into a series of pegs on the back side of the bottom plate.
-
-
-
Get your picks ready!
-

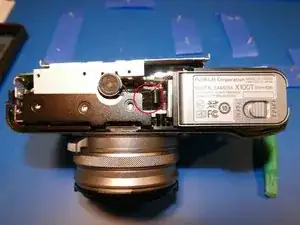

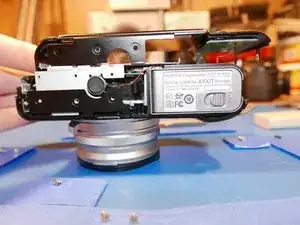

To get any deeper into this camera, the right-hand port cover assembly must be removed first. Once this is removed, you will have access to the screws that secure the other components.
-

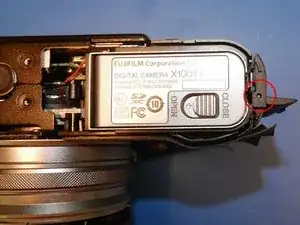

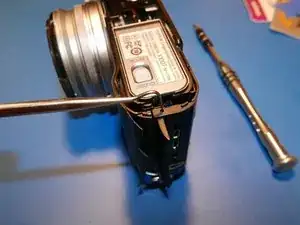

There's a tiny hole toward the bottom right of the battery compartment. Using the pick tool, press into that hole.
-
A plastic rod will release. That plastic rod is the axis the hinge rotates about.
-
-
-
Fuji! What did we tell you about hiding screws behind closed doors! That's pretty under the table Fuji. Don't do it again. Promise?
-

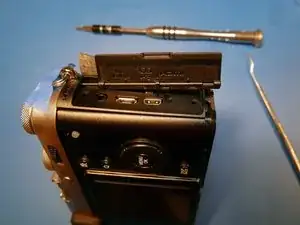

The devil's in the details with this camera. Slide the port cover off the hinge rod.
-

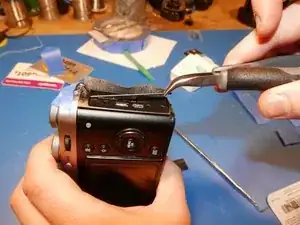

Using a pair of pliers, pull the rod out of the top plate of the camera. Now you'll finally have access to all the screws that need to be removed.
-
-
-

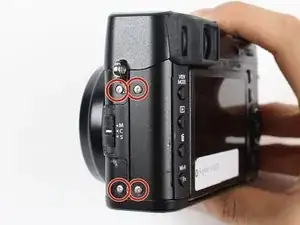

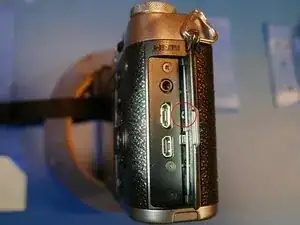

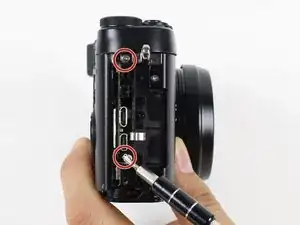

Remove the three 5.0 mm screws by the micro-USB, micro-HDMI and remote ports.
-
Remove the screw hidden behind the port cover hinge.
-

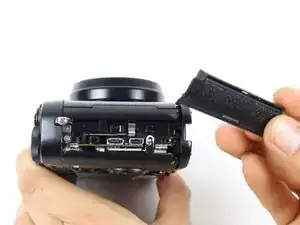

The port cover assembly should come off with ease. If it is stuck, try prying with plastic shims.
-
-
-
Once the electronics are exposed, it is highly recommended that you remain ESD safe. ESD can fry your precious electronics, and pass thousands of volts through components only rated for a few V DC. ESD can sure ruin your day if you are not careful.
-

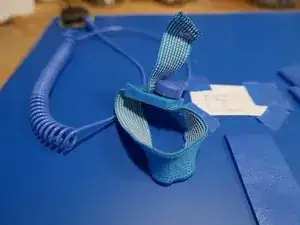

Use an ESD mat and wrist strap, and make sure you are grounded for the remaining of the teardown. Make sure your ESD mat is connected to the ground of a nearby outlet, and make sure your house actually has a ground. Consult an electrician if you are unsure.
-
-
-

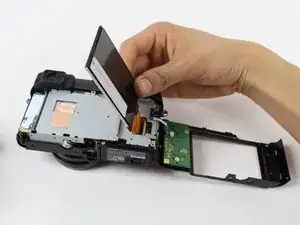

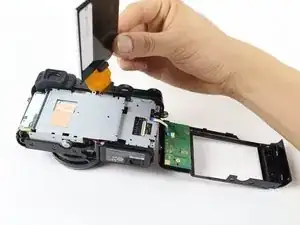

Remove the orange ribbon cable by opening up the ZIF connector with a plastic prying tool or toothpick.
-
-
-
Remove the white/blue ribbon cable from the motherboard by gently pulling with your hands.
-
-
-

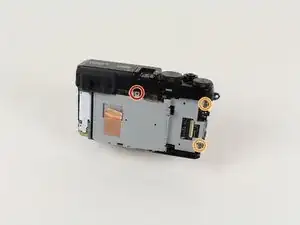

Remove the 2.5 mm screw in the center, above the removed LCD screen.
-
Remove the two 4.0 mm screws on the right.
-
-
-

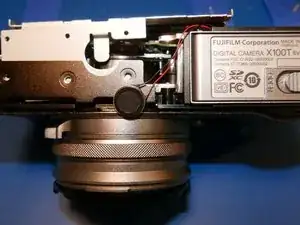

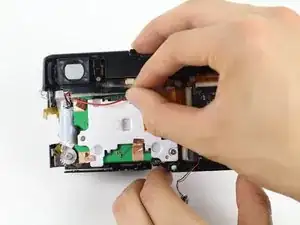

Remove the adhesive tape holding the speaker.
-
The speaker is held into place by double sided tape. Pull it off the steel frame and move it toward the bottom of the camera
-
-
-
Remove these two ribbon cables so they don't get cut or damaged when removing the entire steel frame.
-
-
-

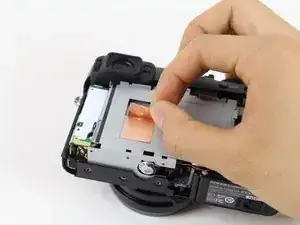

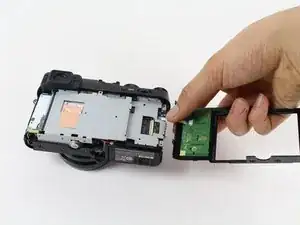

Fold back the steel frame by lifting it off and gently pulling it to the side using your hand.
-

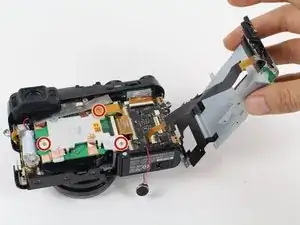

Remove the three 4.2 mm screws on the green chip.
-
-
-
Locate the orange ribbon cable on the side of the camera that has the battery slot.
-

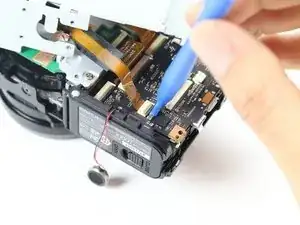

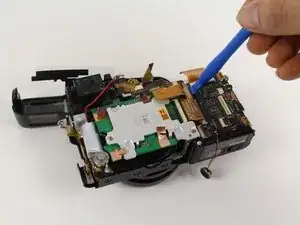

Remove the ribbon cable from the ZIF socket using a plastic opening tool.
-
Remove the ribbon by lifting it off with your hands.
-
-
-
Remove the rubber eyepiece guard by lifting it off with your hands.
-

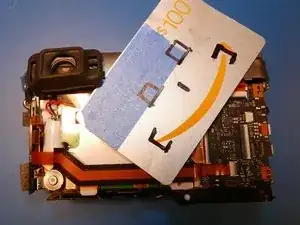

If the rubber eyepiece is being stubborn, an old giftcard won't mind :D
-
-
-

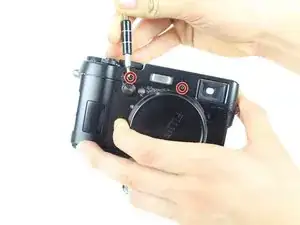

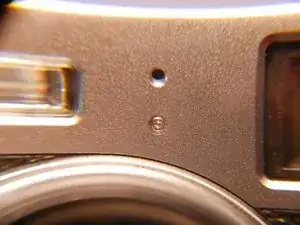

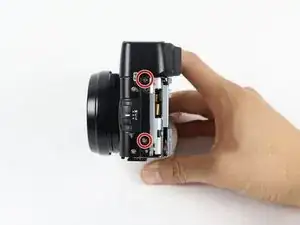

Remove the two 4.0 mm screws from the front of the camera. These are most likely T1 torx screws.
-
I can't stress enough how tiny these screws are. Pencil point sized.
-
The closest bit in the ifixit kit is the star shaped #2 screw head.
-
-
-

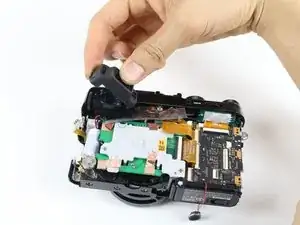

Remove the top frame by lifting it off and pulling it towards the backside of the camera.
-
-
-

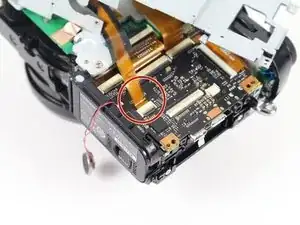

Locate the adhesive connecting the black and red wires above the green board.
-
Remove the adhesive by gently pulling it off with your hand.
-
Remove the copper tape that grounds the sensor heatsink to the sensor PCB.
-
-
-

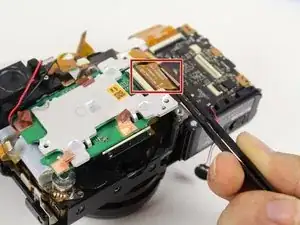

Use a plastic opening tool to pry off the ribbon located next to the top-right of the green sensor board.
-
-
-

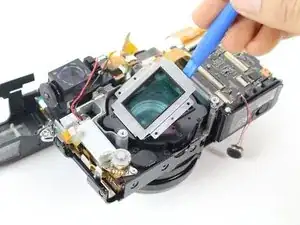

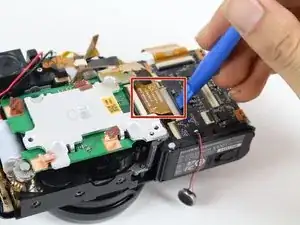

Use a plastic opening tool and metal tweezers to lift up the ribbon located next to the center-right section of the green board.
-

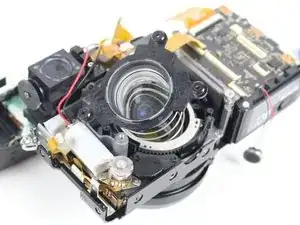

Remove the CMOS sensor aluminum heatsink by lifting it up with your hands. The sensor, PCB and heatsink are integrated into one unit.
-
-
-
You should be wearing nitrile gloves when working with lens assemblies. Oils from fingerprints leave marks on the lens elements and cause major headaches during reassembly.
-

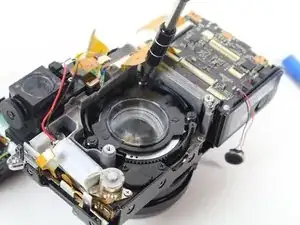

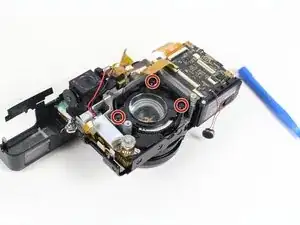

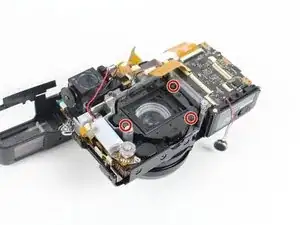

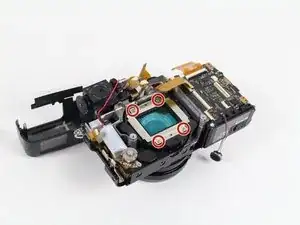

Remove the four 3.2 mm screws on the silver lens cover.
-
To reassemble your camera's lens, follow these instructions in reverse order.
