This guide will show you, how to replace keyboard in your Fujitsu Esprimo Mobile notebook, model V6555. REMEMBER! You're doing it at your own risk! However, it's easy. Just take your time, keep thing organized.
-
-
1. Turn your notebook over.
-

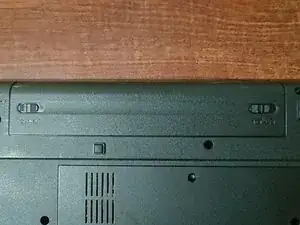

2. For safety reasons, remove your battery. Turn switch on right inwards. Do the same with the one on the left. Hold it, then remove battery pack.
-
-
-
3. Turn your laptop back and open it wide.
-
4. Use plastic card or guitar pick to release plastic from latches. Be gentle, it's only plastic.
-
-
-
5. Keyboard is held in place by two plastic latches. You can gentle push it out.
-

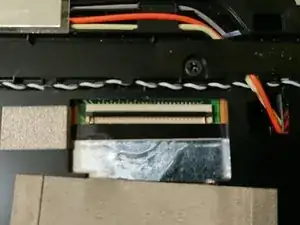

6. When you pull out the keyboard, you have to disconnect it from motherboard. There is a lever-action ZIF (Zero Insertion Force) connector. Simply open black part upwards.
-

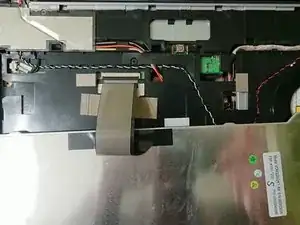

7. With connector opened, gently pull out the ribbon cable.
-
To reassemble your device, follow these instructions in reverse order.
