Fujitsu LifeBook N3510 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Accessing the RAM in this computer is straightforward and requires minimal disassembly.

  1. XvRkNUtKGS2tGYle

    • Locate the two clips on the bottom of the computer that support the battery.

  2. aKlsNFFaynXfcbkJ

    • Using your fingers, push the clips inward and then upward.

    • Lift the battery out of the computer.

  3. LmEnBw2a5rNJ6YHk

    • Locate the RAM cover.

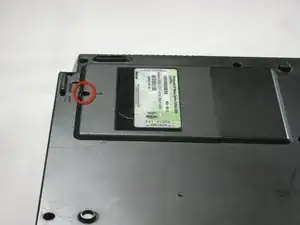

  4. 1ByAacQnsiCTNvuU

    • Remove the screw labeled “3.”

    • The screw is not shown in the picture.

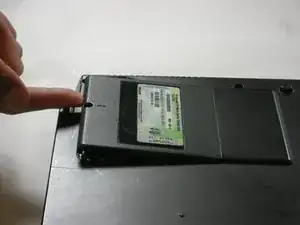

  5. OQyb4CjUpqOPBjYG
    OQyb4CjUpqOPBjYG
    66vLpLHe5AvmJZ1f

    • Remove the RAM cover by lifting it with your finger.

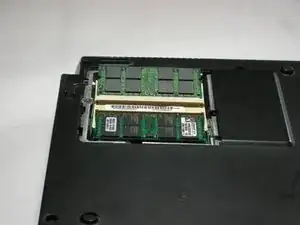

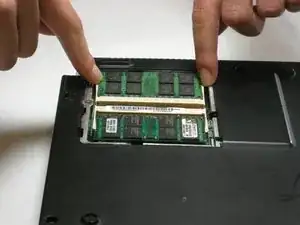

  6. 1oTHhDTsV2Tws5tm
    1oTHhDTsV2Tws5tm
    JXWZFfhnSqai2Owk

    • Remove the RAM module by pushing the securing clips outward.

    • The RAM module will then slightly pop out.

    • When you are installing a new RAM module, carefully insert it into the socket and push downwards.

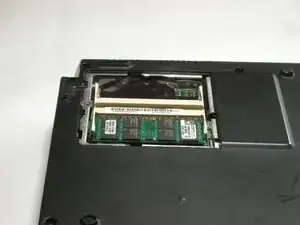

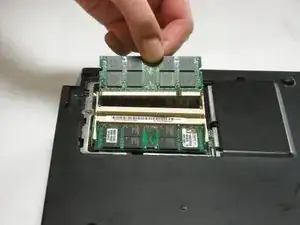

  7. MHTCvZuHXI1Kf1xZ
    MHTCvZuHXI1Kf1xZ
    2ISXACFWRGgDUksM

    • Carefully pull the RAM module from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
