Fujitsu Lifebook A6110 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 5 Minuten

Einleitung

RAM is essential for your Fujtsu Lifebook Model a6110 laptop’s speed and when it begins to slow down or crash without warning, you will need to remove and replace your Random Access Memory (RAM). Whether you are replacing or upgrading your system's memory, this easy to use guide demonstrates the process in six steps.

  1. bQBaHANyeKEQMCee
    bQBaHANyeKEQMCee
    hHPSskgaI4C2Thyf

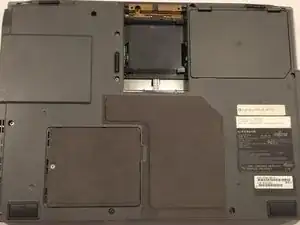

    • The computer should be fully turned off and disconnected from the power source.

    • Before handling electronic components, you should ground yourself. This will prevent damage to the components from a static charge. You can do this by touching any metal object.

    • Flip your laptop so that the bottom of the laptop is facing up and the hinges of the screen are closest to you.

  2. fRZyfr1IKqv2HKMO

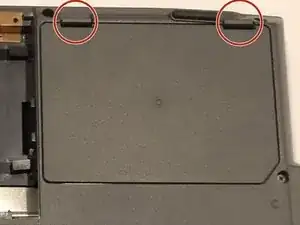

    • Place your fingers under the two clips, and lift them up simultaneously, pulling the cover towards you to remove the battery.

  3. o1jXHocAk4Kp4wSi
    o1jXHocAk4Kp4wSi
    BojNXOtijw5CDn6T

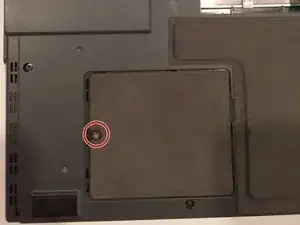

    • The RAM compartment will be located near the bottom-left corner of your lifebook. The compartment is behind the cover held in place by a 6 mm screw.

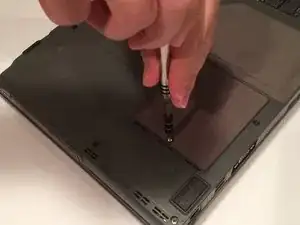

    • Using a Phillips #1 screwdriver, remove the 6 mm screw from the RAM compartment on the bottom-left corner of the rear cover.

  4. 2qPI3uE3EqJaAEQG
    2qPI3uE3EqJaAEQG
    3j2OIEVpHgdu4I5N
    UQALvpCQIChHULTC

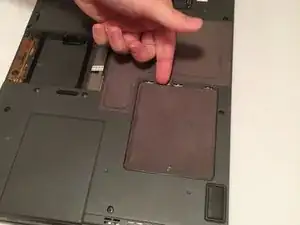

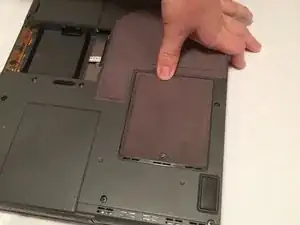

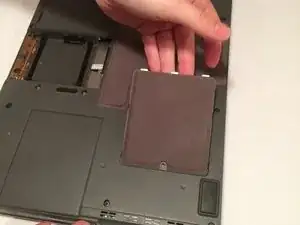

    • Slide the cover towards the screw, and then lift the cover upwards.

  5. dsteWwqfocTK2XYS
    dsteWwqfocTK2XYS
    JYqqvABiNpFRNdUC

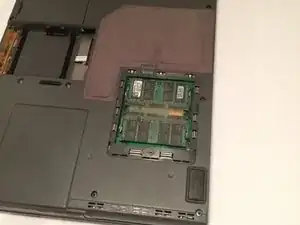

    • There are two RAM cards in this compartment. They look like small green plastic chips with black squares on each of them. These cards are beneath a thin plastic sheet that must be pulled out of the way.

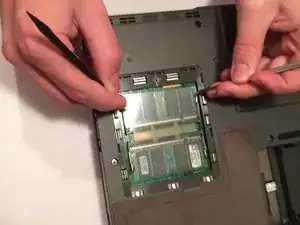

    • Simultaneously pull each metal and plastic clip away from the center of the RAM stick.

    • If done correctly, the RAM card will eject at a 45 degree angle.

  6. PxatI6fgVSyNCJQb

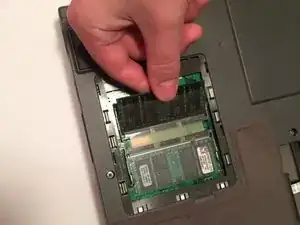

    • Pull the RAM card out while maintaining the 45 degree angle it ejected at.

    • When reassembling, the gold pins on the RAM card must match the corresponding pins found on the motherboard.

    • If you choose to replace the other RAM card, repeat the process in Step 5.

Abschluss

To reassemble your device, follow these instructions in reverse order.
