Fujitsu Lifebook S6120 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

If the keyboard is not responding or inputs incorrectly then your keyboard may need to be replaced, this guide will show you how to remove the keyboard from the Fujitsu Lifebook S6120.

  1. slTsnYQyCQJKH4IG
    slTsnYQyCQJKH4IG
    nawwlcQFCQmJUuxv
    SpWAPvgTJBF2jyPP

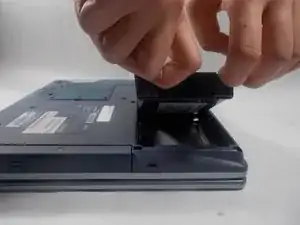

    • To prevent injury, make sure the laptop is unplugged and turned off before removing the battery.

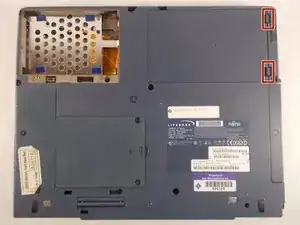

    • Push the two tabs in towards the laptop.

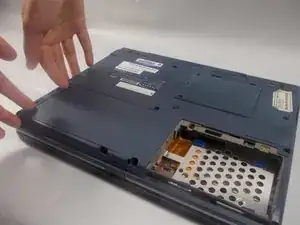

    • Lift the battery up and out from the frame of the laptop.

  2. KPNW6T6phQiNrPSF
    KPNW6T6phQiNrPSF
    lMQodQPCPSR2BdMc

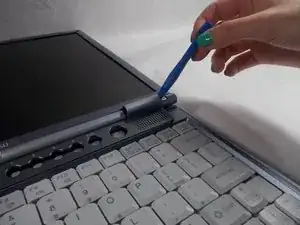

    • Use a plastic opening tool to lift the back of the hinge cover on the left and right sides of the computer.

  3. vivHNIGL1HEvqtpY

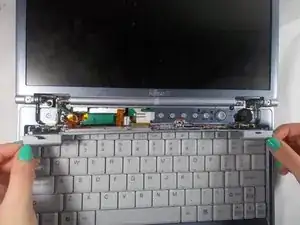

    • Lift the hinge cover.

    • The hinge cover is connected to the motherboard by a ribbon cable. To prevent damage, lift hinge cover slowly.

  4. WB3MeM5kKCtUtuel
    WB3MeM5kKCtUtuel
    OYDSyT5MDELvMnSq
    DsYVQDkI2SGWpQYf

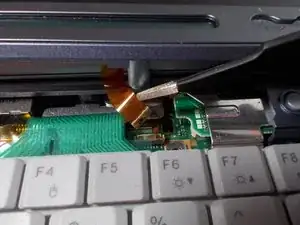

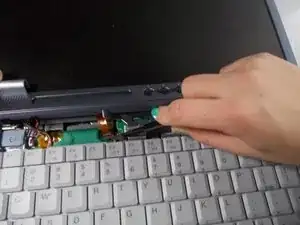

    • Use the tweezers to disconnect the ribbon cable from the motherboard.

  5. 4vUNKHemsGEfY1F2
    4vUNKHemsGEfY1F2
    sM1FiSh3fa4EeOJn
    b2R5sxeONgdbWnwb

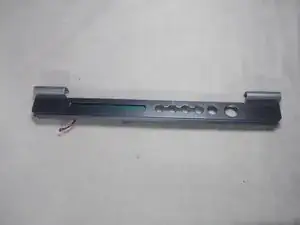

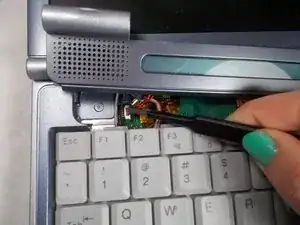

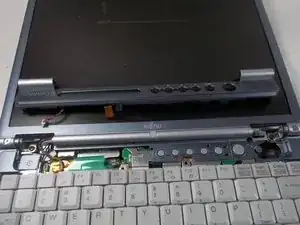

    • With the tweezers detach hinge cover cables from the motherboard.

    • Remove hinge cover.

  6. OThPgTbGRjfesQbo
    OThPgTbGRjfesQbo
    g4EpeF3HZ2yZPsjo
    B3T1NbR2U1qSKJNw

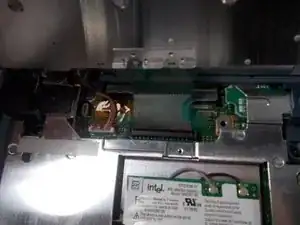

    • Lift keyboard enough to show the ribbon cable.

    • The keyboard has a ribbon cable attached to the motherboard. Lift keyboard carefully to prevent damage.

  7. tarSWQwTKGLp63Eq
    tarSWQwTKGLp63Eq
    1bMOTDL1klOnVhjF
    4S43PUASycMB2XTy

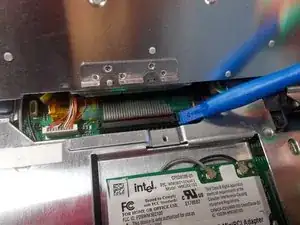

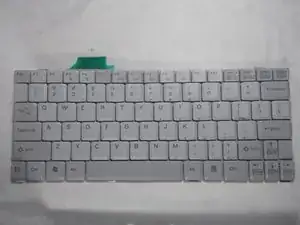

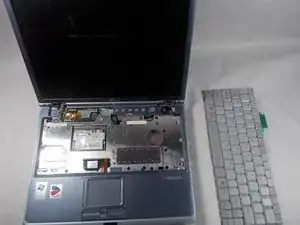

    • Use a plastic opening tool to release the ribbon cable from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
