Fujitsu Lifebook S6120 PCI Adapter Replacement

Geschrieben von: Jaimie Nakamura
  • Kommentare: 0
Fujitsu Lifebook S6120 PCI Adapter Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

If your Lifebook won't connect to a wireless network this guide will show you how to replace a wireless adapter so your Lifebook will get a signal.

  1. slTsnYQyCQJKH4IG
    slTsnYQyCQJKH4IG
    nawwlcQFCQmJUuxv
    SpWAPvgTJBF2jyPP

    • To prevent injury, make sure the laptop is unplugged and turned off before removing the battery.

    • Push the two tabs in towards the laptop.

    • Lift the battery up and out from the frame of the laptop.

  2. KPNW6T6phQiNrPSF
    KPNW6T6phQiNrPSF
    lMQodQPCPSR2BdMc

    • Use a plastic opening tool to lift the back of the hinge cover on the left and right sides of the computer.

  3. vivHNIGL1HEvqtpY

    • Lift the hinge cover.

    • The hinge cover is connected to the motherboard by a ribbon cable. To prevent damage, lift hinge cover slowly.

  4. WB3MeM5kKCtUtuel
    WB3MeM5kKCtUtuel
    OYDSyT5MDELvMnSq
    DsYVQDkI2SGWpQYf

    • Use the tweezers to disconnect the ribbon cable from the motherboard.

  5. 4vUNKHemsGEfY1F2
    4vUNKHemsGEfY1F2
    sM1FiSh3fa4EeOJn
    b2R5sxeONgdbWnwb

    • With the tweezers detach hinge cover cables from the motherboard.

    • Remove hinge cover.

  6. OThPgTbGRjfesQbo
    OThPgTbGRjfesQbo
    g4EpeF3HZ2yZPsjo
    B3T1NbR2U1qSKJNw

    • Lift keyboard enough to show the ribbon cable.

    • The keyboard has a ribbon cable attached to the motherboard. Lift keyboard carefully to prevent damage.

  7. tarSWQwTKGLp63Eq
    tarSWQwTKGLp63Eq
    1bMOTDL1klOnVhjF
    4S43PUASycMB2XTy

    • Use a plastic opening tool to release the ribbon cable from the motherboard.

  8. jLMM5Os1gKKBZCmW
    jLMM5Os1gKKBZCmW
    NWyEx4NNjgFWUgAW
    QDOyFIqQrAMXXvHv

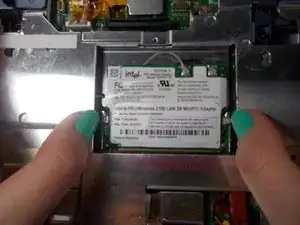

    • Push the secure clips outward.

    • The Adapter should pop up.

  9. XGNsCU4yK4kPBFvA
    XGNsCU4yK4kPBFvA
    KdO2cUDJVtxlP2DR
    dcdwIiimREGCwUNs

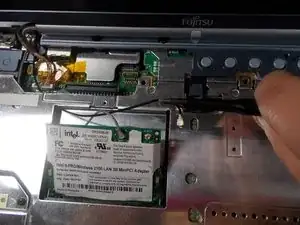

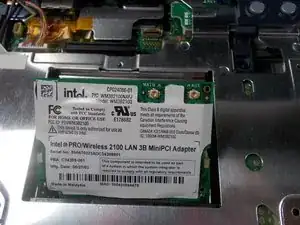

    • Use tweezers to remove the wires from the Adapter.

  10. YN3BbjWxcWuFTLnM
    YN3BbjWxcWuFTLnM
    JWLA4RaPavZCgDkG

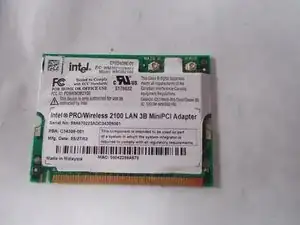

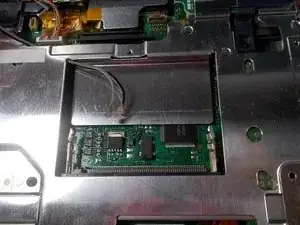

    • Take out the Adapter and carefully pull the wires out from the metal casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
