Fujitsu Lifebook S6120 Screen Replacement

Geschrieben von: Jessi Gallant
  • Kommentare: 0
Fujitsu Lifebook S6120 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

35 Minuten

Einleitung

If the picture on the screen of the laptop is distorted or is blacked out then the screen may need to be replaced, this guide will show you how to remove the screen from the Fujitsu Lifebook S6120.

  1. slTsnYQyCQJKH4IG
    slTsnYQyCQJKH4IG
    nawwlcQFCQmJUuxv
    SpWAPvgTJBF2jyPP

    • To prevent injury, make sure the laptop is unplugged and turned off before removing the battery.

    • Push the two tabs in towards the laptop.

    • Lift the battery up and out from the frame of the laptop.

  2. KPNW6T6phQiNrPSF
    KPNW6T6phQiNrPSF
    lMQodQPCPSR2BdMc

    • Use a plastic opening tool to lift the back of the hinge cover on the left and right sides of the computer.

  3. vivHNIGL1HEvqtpY

    • Lift the hinge cover.

    • The hinge cover is connected to the motherboard by a ribbon cable. To prevent damage, lift hinge cover slowly.

  4. WB3MeM5kKCtUtuel
    WB3MeM5kKCtUtuel
    OYDSyT5MDELvMnSq
    DsYVQDkI2SGWpQYf

    • Use the tweezers to disconnect the ribbon cable from the motherboard.

  5. 4vUNKHemsGEfY1F2
    4vUNKHemsGEfY1F2
    sM1FiSh3fa4EeOJn
    b2R5sxeONgdbWnwb

    • With the tweezers detach hinge cover cables from the motherboard.

    • Remove hinge cover.

  6. OThPgTbGRjfesQbo
    OThPgTbGRjfesQbo
    g4EpeF3HZ2yZPsjo
    B3T1NbR2U1qSKJNw

    • Lift keyboard enough to show the ribbon cable.

    • The keyboard has a ribbon cable attached to the motherboard. Lift keyboard carefully to prevent damage.

  7. tarSWQwTKGLp63Eq
    tarSWQwTKGLp63Eq
    1bMOTDL1klOnVhjF
    4S43PUASycMB2XTy

    • Use a plastic opening tool to release the ribbon cable from the motherboard.

  8. jLMM5Os1gKKBZCmW
    jLMM5Os1gKKBZCmW
    NWyEx4NNjgFWUgAW
    QDOyFIqQrAMXXvHv

    • Push the secure clips outward.

    • The Adapter should pop up.

  9. XGNsCU4yK4kPBFvA
    XGNsCU4yK4kPBFvA
    KdO2cUDJVtxlP2DR
    dcdwIiimREGCwUNs

    • Use tweezers to remove the wires from the Adapter.

  10. YN3BbjWxcWuFTLnM
    YN3BbjWxcWuFTLnM
    JWLA4RaPavZCgDkG

    • Take out the Adapter and carefully pull the wires out from the metal casing.

  11. WWiWmlRmCYSiogrF
    WWiWmlRmCYSiogrF
    Swgh2BLHSWXVQv3w

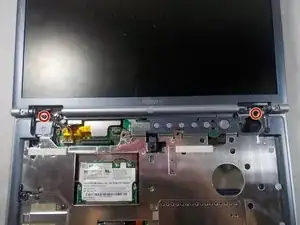

    • Remove the 4mm screws from the laptop with a Philips head #0

    • Remove the 4.5mm screws on the back of the laptop with a Philips #0

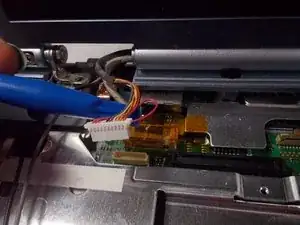

  12. fFTEskyxEXBA5hIJ
    fFTEskyxEXBA5hIJ
    3PPlStBIVG53KRIV
    Ef3HRiTYDCQbMbfx

    • Use a plastic opening tool to lift up both sides of the white tab.

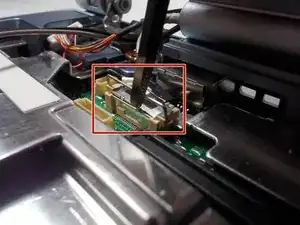

  13. HptYuU6tF4fTmgw4
    HptYuU6tF4fTmgw4
    oTZXix1TuIkMCOEo

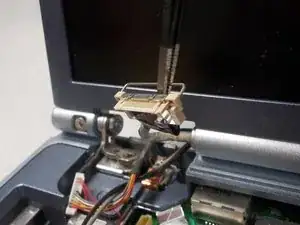

    • Use tweezers to grab onto the lever to remove the chip from the motherboard.

  14. UdffYIgMcKeqKPuY

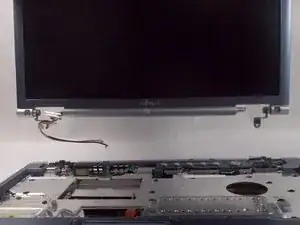

    • Lift the screen up vertically

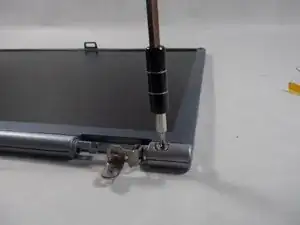

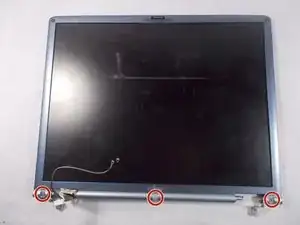

  15. YlOQA2LFrqLD5L4y
    YlOQA2LFrqLD5L4y
    Ku4qdJjNODWlTNUt
    gQIvR4BDkyPm3bk4

    • Remove rubber tabs with hands

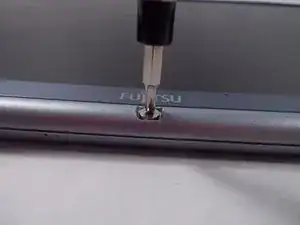

    • Use a Philips head #0 to remove the 3mm screws

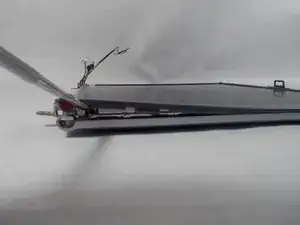

  16. GSdlnT3AkybFd5OI
    GSdlnT3AkybFd5OI
    WNMDKJvwivhUD4Lj

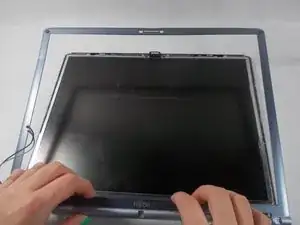

    • Use the metal spudger to pry up the edge of the plastic casing up.

    • Remove the plastic frame from the screen.

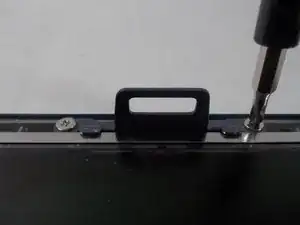

  17. GeGImNOujkNURSRa

    • Remove the 3mm screws with a Philips head #00

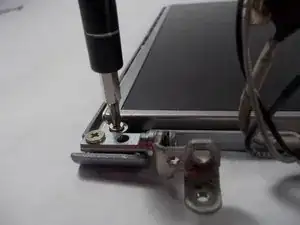

  18. G1W4P1E1PuvtCWHd

    • Remove the 2.5mm screws with a Philips head #0 on both sides of the laptop

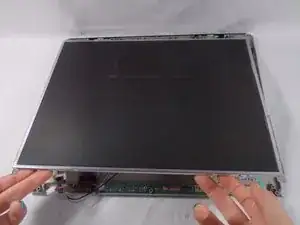

  19. ejoHJUVCcpTiZOOL
    ejoHJUVCcpTiZOOL
    fotRhHFAQ4tqQ6iD

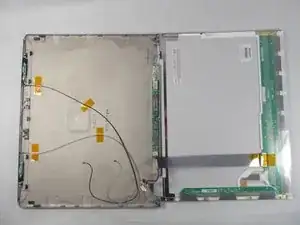

    • Lift the screen from the frame

  20. NXnQ5R2JkucP2Qvc
    NXnQ5R2JkucP2Qvc
    QjyjSmFycdSZDa4A

    • Remove the ribbon from the back of the screen

  21. WDeGQps4dpaa6dyn
    WDeGQps4dpaa6dyn
    dPrQyWNVdRZYbaNs
    dZZwkSJslG4s5M6F

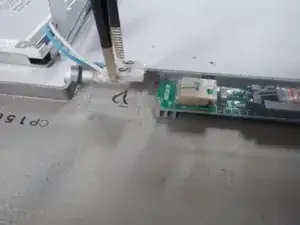

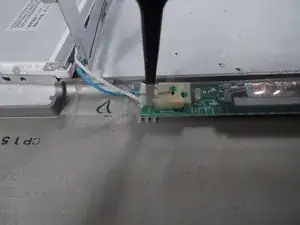

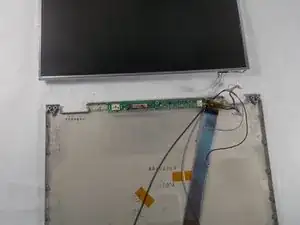

    • Use a pair of tweezers remove the white connector

Abschluss

To reassemble your device, follow these instructions in reverse order.
