Einleitung
If the power port stops working you can use this guide to replace it. During this guide be careful as you are working on electronics as you remove the wires indicated in this guide to ensure no further damage to your device.
-
-
Remove the white sticker covering the screws (if applicable).
-

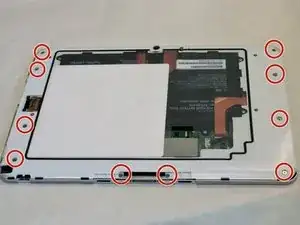

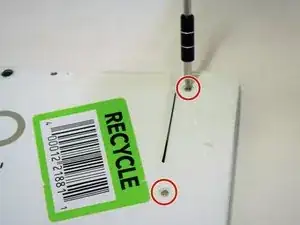

Use the PH1 screwdriver to remove the four 2 mm screws from the the backside of the device.
-
-
-

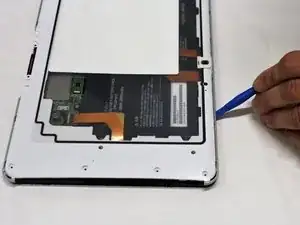

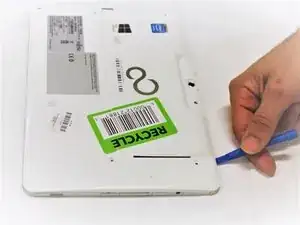

Insert the plastic opening tool along the seam of the back case.
-

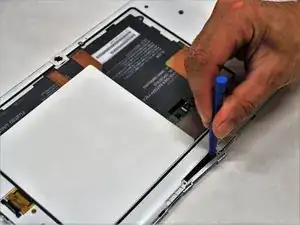

Gently slide the plastic opening tool along the entire seam popping the clips free.
-
-
-

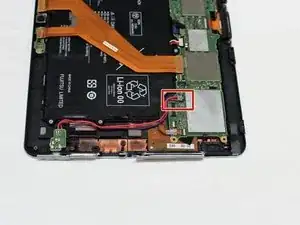

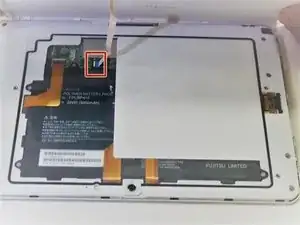

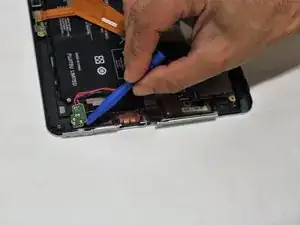

Lift the shield away from the device and remove the fingerprint scanner's ribbon from the motherboard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
