Fujitsu Lifebook Stylistic Q584 Buttons Replacement

Geschrieben von: Connor Stanton
  • Kommentare: 0
Fujitsu Lifebook Stylistic Q584 Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

If one of your buttons is not working and needs to be replaced this guide will give you step-by-step instructions.

  1. 2gN3ZT1LcTcDtYKb

    • Remove the white sticker covering the screws (if applicable).

    • Use the PH1 screwdriver to remove the four 2 mm screws from the the backside of the device.

  2. XqGwyZCPSvPIuTdS

    • Insert the plastic opening tool along the seam of the back case.

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  3. qfg4IOgJlri6pRnq

    • Carefully lift the back case and remove the smartcard ribbon from the motherboard.

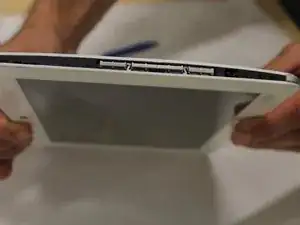

  4. LxHvHLJaI6kPdeGx

    • Locate the plastic buttons on left side of the device.

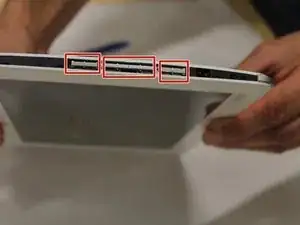

  5. jEyA2dOAMTNEZxDW

    • Gently remove the plastic buttons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
