This guide will allow you to replace the motherboard if it is burnt up or to upgrade.

  1. 2gN3ZT1LcTcDtYKb
    • Remove the white sticker covering the screws (if applicable).

    • Use the PH1 screwdriver to remove the four 2 mm screws from the the backside of the device.

  2. XqGwyZCPSvPIuTdS
    • Insert the plastic opening tool along the seam of the back case.

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  3. qfg4IOgJlri6pRnq
    • Carefully lift the back case and remove the smartcard ribbon from the motherboard.

  4. YbmKFvFqTfCMniNw
    • Remove the ten 3mm screws with a PH00 screwdriver from the shield.

  5. 1qTxHcIZc5FZ5gRh
    • Remove the grey docking station port cover.

  6. FsCMAvueYsT1yIPB
    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  7. VakGTMiHnkGUFgXF
    • Lift the shield away from the device and remove the fingerprint scanner's ribbon from the motherboard.

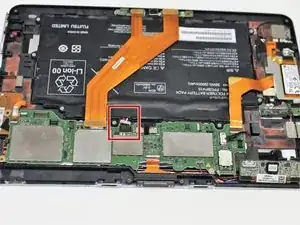

  8. QwDEjM225WJNuIMc
    • Pull up the cord that connects the battery to the motherboard

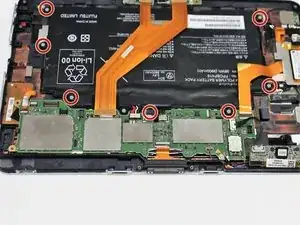

  9. 6ZmmEIHPJkXsYQJc
    • Remove seven 1mm screws using a PH00 screwdriver.

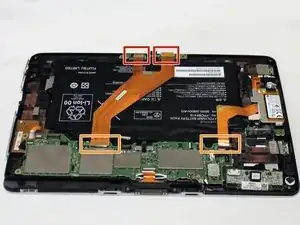

  10. s1kkvuViCVv3HFsH
    • Disconnect upper peripheral ribbons from motherboard.

    • Disconnect left peripheral ribbon from motherboard.

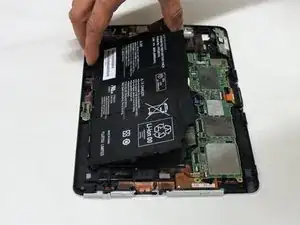

  11. LDiYX1HN1eDmUMHH
    • Gently lift the battery from the casing.

  12. sFlTIr2uWeHyyL6U
    • Remove three 3mm screws using a PH00 screwdriver.

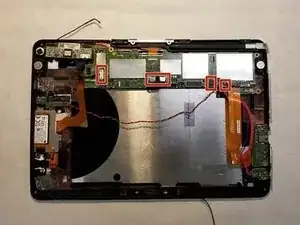

  13. h5aVMGgsPfLba1Er
    • Remove all of the ribbon connector cables from the motherboard using an ESD-safe spudger.

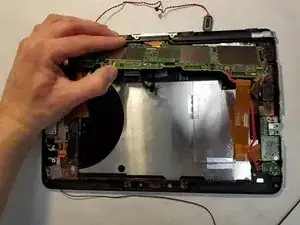

  14. HMdqiAes36J4OyUa
    • Gently pry up the motherboard.

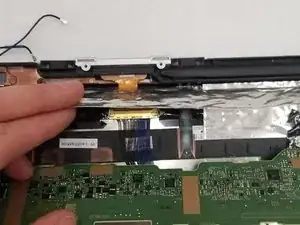

  15. eGs2wJ5pUbxkanks
    • Gently lift the foil tape under the motherboard to reveal the connector.

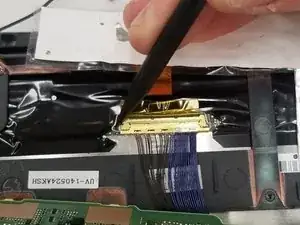

  16. tPGjSKSZHA5AGokF
    tPGjSKSZHA5AGokF

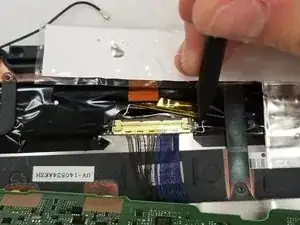

    TBVJ15Kfp2oBdIMU

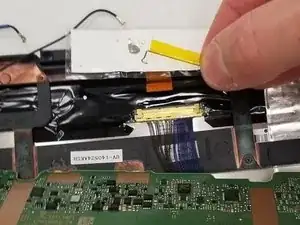

    X5xcQpkG6dQfXR3c
    • Remove the clip holding in the connector with an ESD-safe spudger.

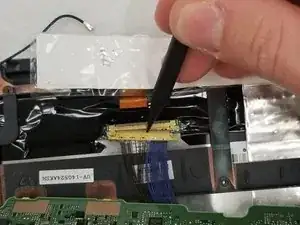

  17. BPdUIYQa24B1ZwsU
    • Remove the connector with an ESD-safe spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
