Fujitsu Lifebook T1010 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 Minuten

Einleitung

The goal of this guide is to show how to replace RAM in the Fujitsu Lifebook T1010.

  1. gPdOWFVVplIK1JDY

    • Remove the two Phillips #0 screws from the cover.

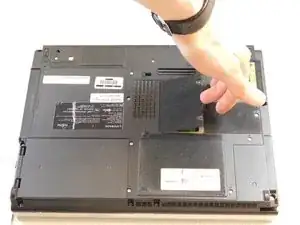

  2. 1tOQIgjhr6yXBogK

    • Remove the cover.

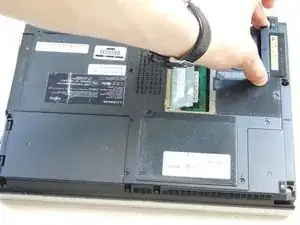

  3. FdBhbY1hwDrnZmZG

    • Two clips secure the RAM module in place, one on each side. Using your fingers, spread the clips away from the RAM module.


    • When released, the RAM module will pop up at a slight angle.

    • Lift the RAM module to an angle of about 30 degrees and slide it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
