If your Fujitsu Lifebook model a6110 laptop is overheating, or if the fan in the laptop is louder than it used to be and using compressed air didn't resolve the problem, then you will likely need to replace your fan. This guide will show you a step-by-step process on how to replace the fan in the computer.
Werkzeuge
-
-
Flip your laptop so that the bottom of the laptop is facing up and the hinges of the screen are closest to you.
-
-
-
Place your fingers under the two clips, and lift them up simultaneously, pulling the cover towards you to remove the battery.
-
-
-
Position the laptop like you would if you were to use it. Open the screen to a 180 degrees angle. The screen and the keyboard needs to face up before proceeding.
-
Remove the plastic piece in the red square by using the flat edge of the plastic spudger by prying between the inner edge marked by the arrow.
-
-
-
Using a Phillips #1 screwdriver, remove the four 6 mm screws that were covered by the plastic piece that was just removed.
-
-
-
Lift up on the inner edges of the hinges for the screen. This will detach the face-plate from the computer. Use a spudger to make this process easier.
-
The ribbon is in the top left hand corner and must be carefully removed from the motherboard as shown in the next step.
-
-
-
Detach the ribbon from the motherboard, which will allow you to finish removing the face-plate from the computer.
-
To detach the ribbon, grip the ribbon at the base that is attached to the motherboard, which is the large green circuit-board in the body of the computer.
-
-
-
Detatch the ribbon from the motherboard
-
To detach the ribbon, grip the ribbon at the base that is attached to the motherboard, which is the large green circuit-board in the body of the computer.
-
-
-
Close the screen of the laptop, then flip the computer over so that the bottom side is facing up.
-
-
-
Using a Phillips #1 screwdriver, remove the eleven 1 cm screws located around the edge of the laptop.
-
-
-
Flip the computer over again, like it was before removing the screws. The screen must be opened and pushed down so that it lies flat with the keyboard. Both the keyboard and screen must face up.
-
-
-
Using a Phillips #1 screwdriver, remove the six 6 mm screws located on the top right and top left corners of the laptop.
-

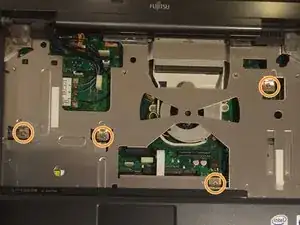

Using a Phillips #1 screwdriver, remove the four 6 mm screws located around the motherboard.
-
-
-

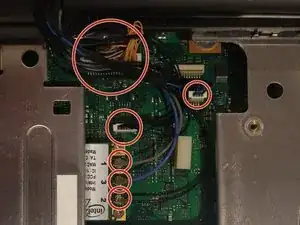

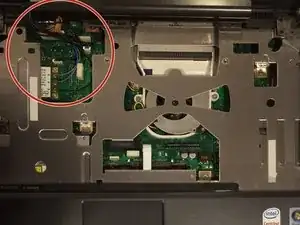

At the top left hand corner of where the keyboard used to be, you will find a grouping of wires.
-

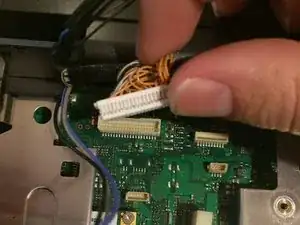

Carefully remove all the wires that are grouped together from the motherboard using either your hands or a spudger.
-
-
-

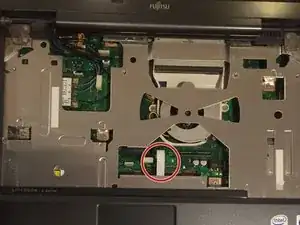

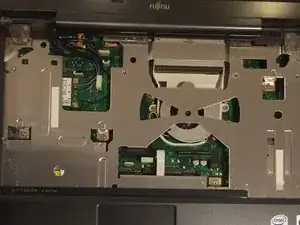

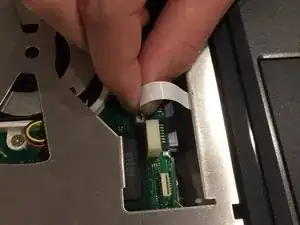

Before you can remove the keyboard's metal under carriage you must first remove the track-pad's ribbon. Take a firm grip at the base of the ribbon that is connected to mother board and firmly pull it upward away from the motherboard.
-
-
-

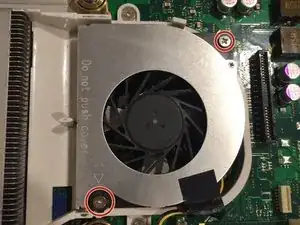

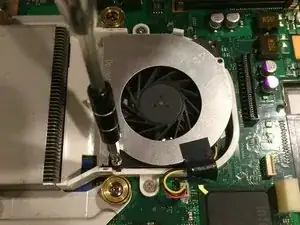

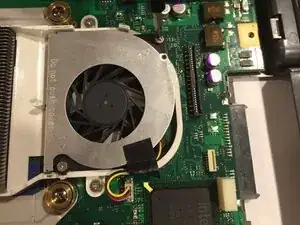

There are two 3 mm screws around the fan that need to be removed. Using a Phillips #1 screwdriver, remove these screws by turning them counter-clockwise.
-
-
-

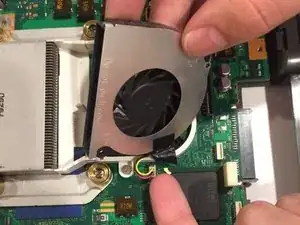

The fan is now held in place by a wire, and a piece of anti-static tape.
-
Remove the wire by pulling it from the motherboard, using either your hands or a spudger.
-
The tape can simply be peeled away.
-
To reassemble your device, follow these instructions in reverse order.
