Fujitsu M2011 Hard Drive Replacement

Geschrieben von: Brandon Stowers
  • Kommentare: 0
Fujitsu M2011 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

The tools you will need to replace the hard drive will be a Phillips screw driver. This repair may be required if your computer is running slow, or you have received an error for hard drive corruption.

  1. sYmwePjVxK6DMMOw
    sYmwePjVxK6DMMOw
    fKFFunYWjPqU2mFf

    • Slide switch #1 (shown) to the left.

  2. DRaVVgDVam3MTTfu
    DRaVVgDVam3MTTfu
    ZhQrmJNEM2jJsQ62

    • Slide switch #2 (shown) to the right and hold.

  3. oxyyKDB2OdXQSW3S

    • Pull the battery straight back out.

  4. PqnXiPZTGMUvFhCP
    PqnXiPZTGMUvFhCP
    ULvGeVSdapCAXXrp

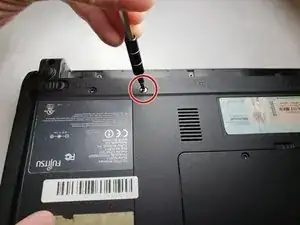

    • Remove the two 3 mm PH0 screws holding hard drive in place.

  5. wPeoBVYGUPYPhg3U

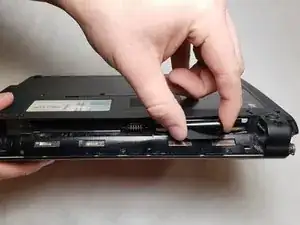

    • Unfold the black tab attached to hard drive.

  6. LIOvasd5vFMlVQOA

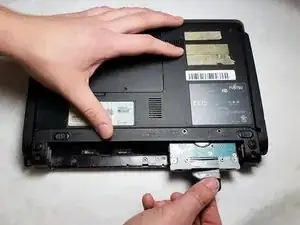

    • Remove the hard drive by pulling the black tab.

Abschluss

To reassemble your device, follow these instructions in reverse order.
