Fujitsu Siemens Amilo Pro Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

A repair manual for the Fujitsu Siemens Amilo Pro 2010 and 2020 and 2030 which shows you how to replace the keyboard!

  1. lvoIvInwUeCQRbll

    • Remove AC adapter and battery.

    • Battery: pull the latch with a battery symbol beside it.

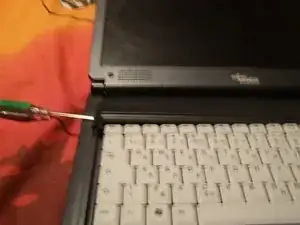

  2. TKKtJyPIksrSdgdj

    • Use a flat head screwdriver to pry out the hinge cover.

    • (Caution do not pull to hard as this could snap the plastic!)

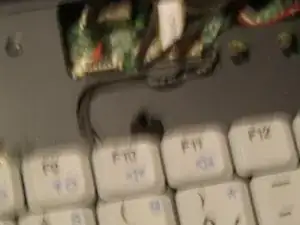

  3. VsEVMZMDvwKABveG

    • Remove the one screw holding in the keyboard.

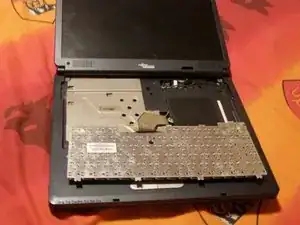

  4. DAipQom3yykAioSB

    • Pull the keyboard up towards you.

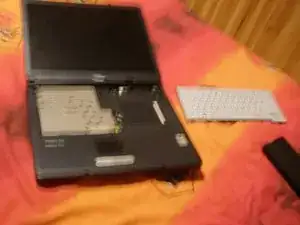

  5. 3NUHoCfESCShkTBB

    • Pull the ribbon cable and the keyboard will come out.

    • (Caution this ribbon is very delicate)

Abschluss

To reassemble your device, follow these instructions in reverse order.
