Fujtsu Lifebook Model A6110 Keyboard Replacement

Geschrieben von: Cody Moniz
  • Kommentare: 0
Fujtsu Lifebook Model A6110 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

They keyboard is an important component of a laptop and helps the user write text on a computer. If the keys on your laptop are not registering, you may need to replace your keyboard. This guide will walk you through the steps to complete this replacement in your Fujitsu Lifebook Model A6110 Laptop.

  1. bQBaHANyeKEQMCee
    bQBaHANyeKEQMCee
    hHPSskgaI4C2Thyf

    • The computer should be fully turned off and disconnected from the power source.

    • Before handling electronic components, you should ground yourself. This will prevent damage to the components from a static charge. You can do this by touching any metal object.

    • Flip your laptop so that the bottom of the laptop is facing up and the hinges of the screen are closest to you.

  2. fRZyfr1IKqv2HKMO

    • Place your fingers under the two clips, and lift them up simultaneously, pulling the cover towards you to remove the battery.

  3. aGpIIl62FZCKOK3f
    aGpIIl62FZCKOK3f
    W1MGtoaWoQrIOclS
    kcSN1lFBdEGvSJQA

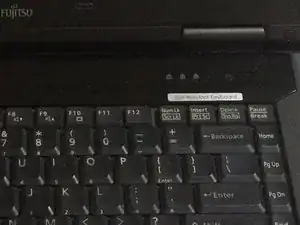

    • Position the laptop like you would if you were to use it. Open the screen to a 180 degrees angle. The screen and the keyboard needs to face up before proceeding.

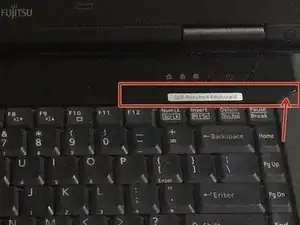

    • Remove the plastic piece in the red square by using the flat edge of the plastic spudger by prying between the inner edge marked by the arrow.

  4. xdmjGhqPfaNLOmxo
    xdmjGhqPfaNLOmxo
    Je2M2RTrXwMWjXnq
    3JRYpg6hMUAvEIOl

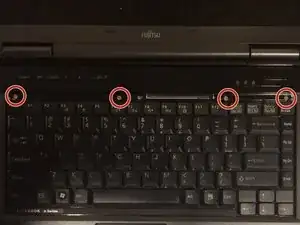

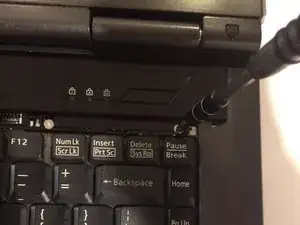

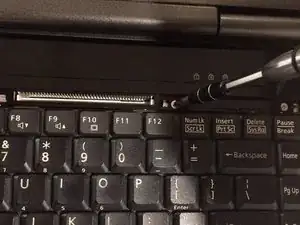

    • Using a Phillips #1 screwdriver, remove the four 6 mm screws that were covered by the plastic piece that was just removed.

  5. qbBRr6yfLX2RwDlT
    qbBRr6yfLX2RwDlT
    yPEBTNnIDYhIREcn
    3eBpE5dvyEXuWKZB

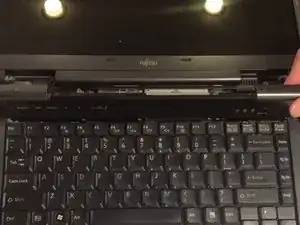

    • Lift up on the inner edges of the hinges for the screen. This will detach the face-plate from the computer. Use a spudger to make this process easier.

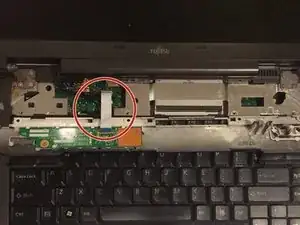

    • There is a ribbon underneath this panel that attaches to the motherboard. Be careful to not rip this ribbon.

    • The ribbon is in the top left hand corner and must be carefully removed from the motherboard as shown in the next step.

  6. vusX3VXQNBIHgmF1
    vusX3VXQNBIHgmF1
    RybOXk1JMyFDLGhn

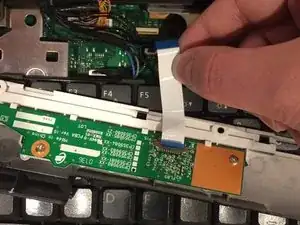

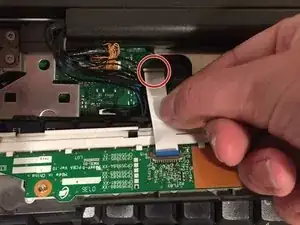

    • Detach the ribbon from the motherboard, which will allow you to finish removing the face-plate from the computer.

    • To detach the ribbon, grip the ribbon at the base that is attached to the motherboard, which is the large green circuit-board in the body of the computer.

    • When reassembling the computer, make sure to reconnect the ribbons.

  7. scGGRoocev5gXDxj
    scGGRoocev5gXDxj
    xPZLlWhAWllNc3Xw

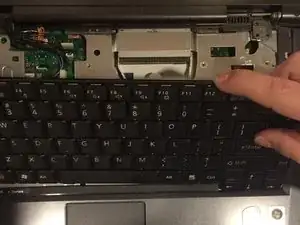

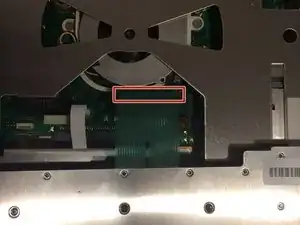

    • There is another ribbon connecting the keyboard to the motherboard. Be careful not to rip it

    • The keyboard is now free. Lift up on the keyboard.

  8. JWPleTokLtIZYECp

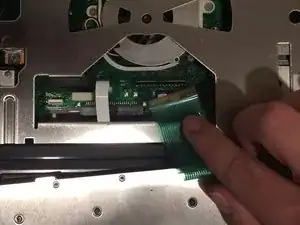

    • This ribbon may be difficult to remove, so be careful in pulling it. You could accidentally break it.

    • Detatch the ribbon from the motherboard

    • To detach the ribbon, grip the ribbon at the base that is attached to the motherboard, which is the large green circuit-board in the body of the computer.

    • When reassembling the computer, make sure to reconnect this ribbon.

Abschluss

To reassemble your device, follow these instructions in reverse order.
