Furbo Dog Camera USB Power Jack Replacement

Remove the lid from the top of your Furbo Dog Camera.

Rotate your Furbo so that the bottom faces you.

Remove the rubber caps to reveal the four screws on the bottom of the Furbo.

Use a 2.5 mm Flathead screwdriver to remove the four 5 mm screws from the bottom of the Furbo.

Use a 2.5 mm Flathead screwdriver to remove the single 5 mm screw under the silver sticker.

Rotate your Furbo so that the side is facing towards you.

Use an opening tool to separate the two plastic coverings.

Once you have separated the two plastic coverings, remove one side by pulling on it and carefully separating it from the adhesive.

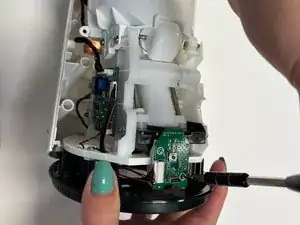

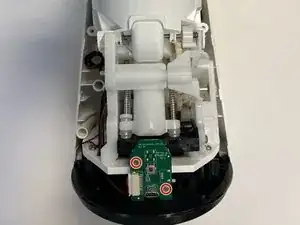

Use a Phillips #000 screwdriver to remove the two 5 mm screws from the USB power jack.

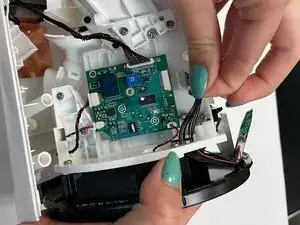

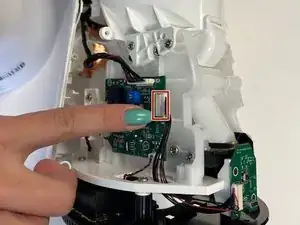

Once you have removed the screws, gently pull the bundled cable connector free from the motherboard.

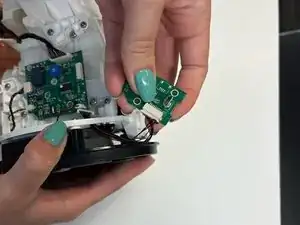

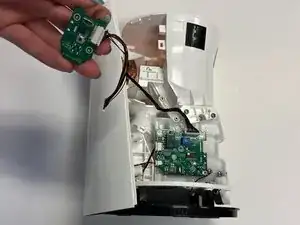

The USB power jack PCB can now be removed from your Furbo and replaced.
