Einleitung

This guide doesn't require you to remove the back panel. The parts in the base are relatively small so we suggest having a way to keep track of them. Cleaning is at your discretion although we recommend a mild detergent/dish soap.

  1. AfSbLEwBVgbWnBiO
    AfSbLEwBVgbWnBiO
    fGuqLLUmkaZCCMCZ
    qTsHkeJFJcFTTBRv

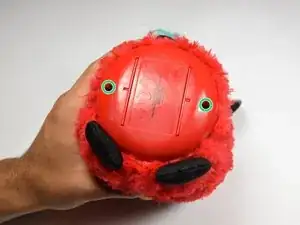

    • Flip Furby upside down so his feet are pointed towards you.

    • Unscrew the right and left screws on the base.

  2. KGwrfnexPMyDiVTF
    KGwrfnexPMyDiVTF
    AowvvuybaqUCqGWM
    C5WCxL2CRtbIOEAj
    • Remove the base from your Furby.

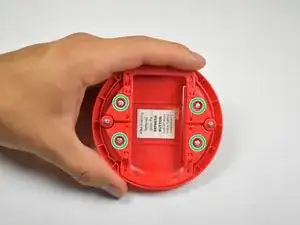

    • Flip over the base so the screws are on the right and left.

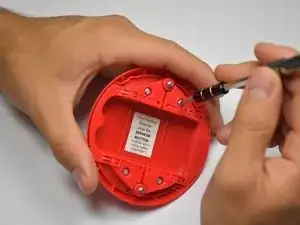

    • Unscrew the 2 right and 2 left inside screws.

  3. fkMBTjv4SSDd3dQH
    fkMBTjv4SSDd3dQH
    2UpRSWIeGpyjtDXl
    W2j5FFWZFnwHGa4L

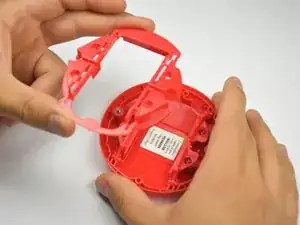

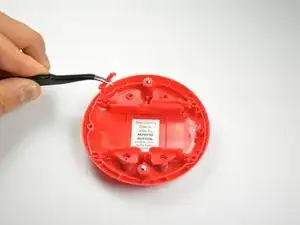

    • Lift the housing for the foot components.

    • Rotate the base 90 degrees.

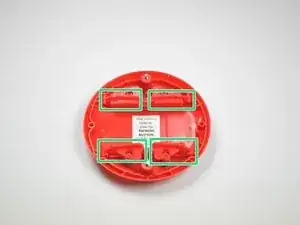

    • Locate all four of the foot activation levers. Remove them one by one from the base.

  4. SIwZmtsCrRBOVNPH
    SIwZmtsCrRBOVNPH
    F2uNTQGsCv4eB2ve

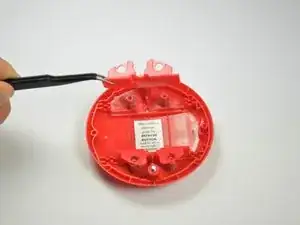

    • Locate the feet pieces and remove them.

  5. HAIDCdflIkBxL63B
    HAIDCdflIkBxL63B
    mcfeTkoEVUTIgmUN
    2kOAkAGIVq6XHy2s

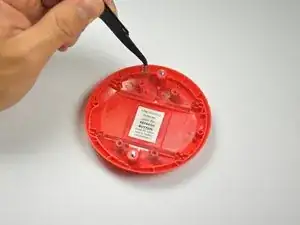

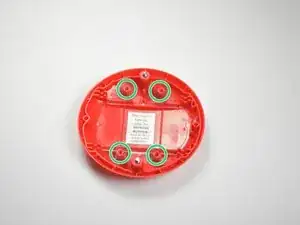

    • Locate and gently lift out the four small springs using tweezers.

    • Now that you have all parts are removed, they can be cleaned and reassembled into Furby's "feet".

Abschluss

To reassemble your device, follow these instructions in reverse order.
