Einleitung

The device has fabric and an outer shell that needs to be removed. Removing the connector tabs are the hardest part of this guide.

  1. 6aNXDZqbGsUxrxpv
    6aNXDZqbGsUxrxpv
    nUPqAY2sNLCjpAha
    V3MyhJmr6jNBAnTd

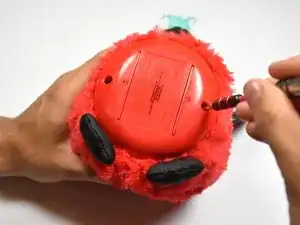

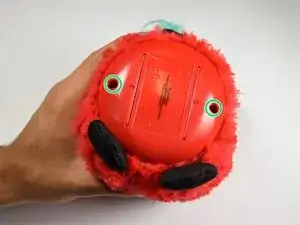

    • Use a flathead screwdriver to remove the two 10mm screws on the base of the Furby.

  2. LnSTnSEIAljqOLFX
    LnSTnSEIAljqOLFX
    YRJLDKHBtDjIQQwS
    REYv4GnwwKEADaqX

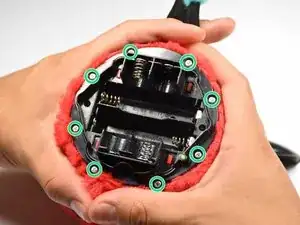

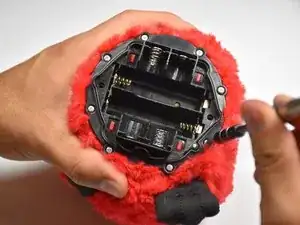

    • Use a Phillips #0 driver to unscrew the eight 10mm screws.

    • Remove the base ring after unscrewing all the screws.

    • Be careful when lifting the base ring from the Furby. There are sharp edges that hold the base ring in place.

  3. ftq4Pb2g2sijpMHs
    ftq4Pb2g2sijpMHs
    6LEhAhVO5jRAPOwm
    • Unhook the white ribbon from the tab on the base.

  4. tDGhJyQiZQmRHSuU
    tDGhJyQiZQmRHSuU
    BJDkrbY3dWadreKy
    TyhtqDcoMRae1TUe

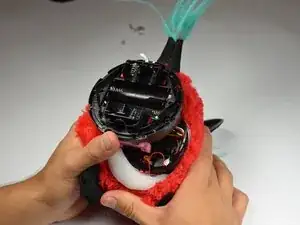

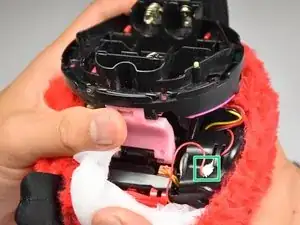

    • Roll the Furby's fur downward.

    • Disconnect the now exposed red wire.

  5. NyDmylAWtAZiOElw
    NyDmylAWtAZiOElw
    WDFO4LLpnUJnOF5g
    LkgS1CaNHhMGgp1V

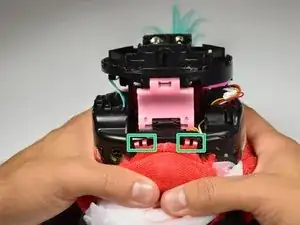

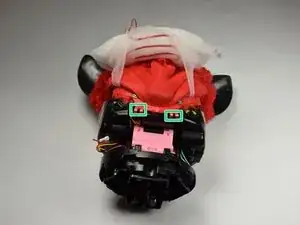

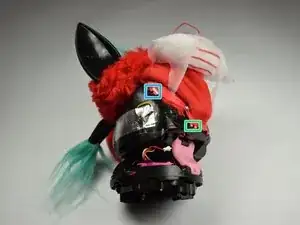

    • Locate the two middle clips first.

    • Locate the two remaining clips on Furby's sides, they are opposite each other.

    • Orient the Furby upside down with the tail facing away from you.

  6. 6XdDZFuBQR3EfuZJ
    6XdDZFuBQR3EfuZJ
    5EBAkTSOax4tXnRl
    rKLFUXh1u2l5kKQJ

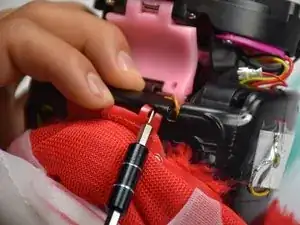

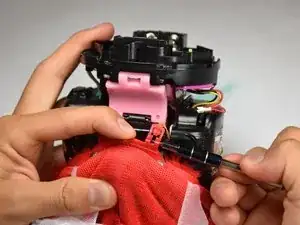

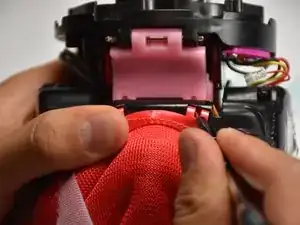

    • Insert a metal prying tool directly into the clip opening.

    • Press upward into the clip. At the same time, use your other hand to pull away the plastic seam from the Furby's body.

    • Repeat the previous step to remove the remaining three clips.

  7. DIMw6EuhNoYHCVVl
    DIMw6EuhNoYHCVVl
    gOWqbuCm1FMIMNjG
    ogMEBGgWIonUbGmp

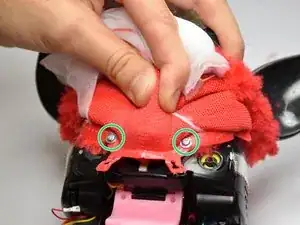

    • Locate the two 10mm screws and remove them with the Phillips #0 head screwdriver.

    • Lift up on the fur covering until the face of the Furby is exposed.

  8. QxljiCWNQm1kLZaX
    QxljiCWNQm1kLZaX
    LOHEmCOlsBIB5tN3
    tQubLHmky5FpSd1l

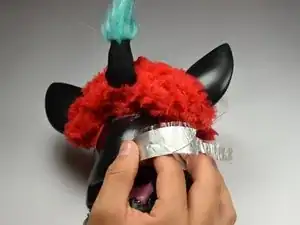

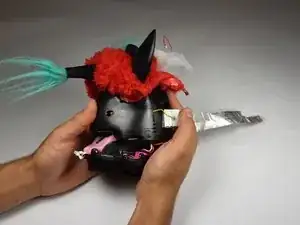

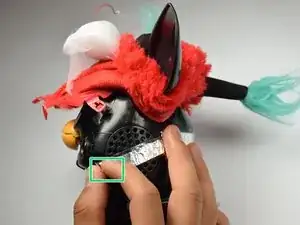

    • Orient the Furby on its side to where the beak is facing left and locate the edge of the aluminum tape.

    • Lift tape gently and peel back until the tape is nearly removed.

    • Do not pull on the yellow wire located on the opposite end of the tape.

  9. WGyuEd41lpqGavtl
    WGyuEd41lpqGavtl
    AJ4y14SeCPHIP1qo

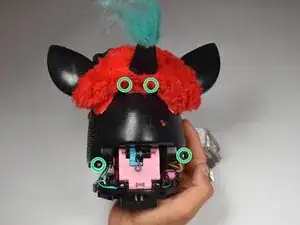

    • Locate the four 10mm screws. Two on either side of body, and two on top of back plate, around the tape.

    • Remove the 10mm screws with the Phillips#0 screwdriver.

  10. gip1Ei6FbQv13aLM

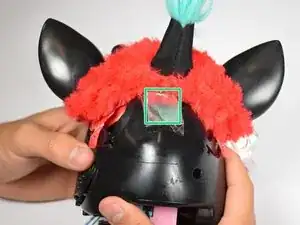

    • Peel the tape gently, grabbing it from the bottom edge and folding the tape upward.

    • Peel the tape up until it is nearly detached from the black case.

  11. INETkQuwm4JDcwe2
    INETkQuwm4JDcwe2
    BNCtABTDaPWOwDGh

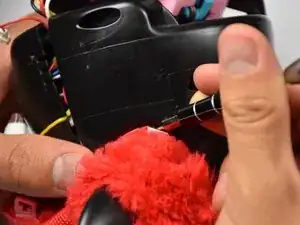

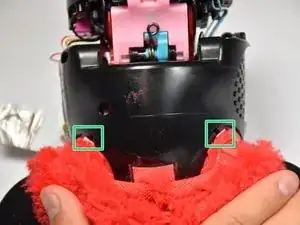

    • Orient the Furby face down, with the base facing away from you.

    • Locate the clips below the ears.

    • Repeat the technique used in Step 6. Create leverage using a metal prying tool to press upward into the clip, while also pulling back on the clip itself.

  12. DXFDScEQASBVlQnR
    DXFDScEQASBVlQnR
    KDMRgcZAWSBTVOJC

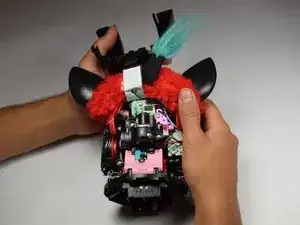

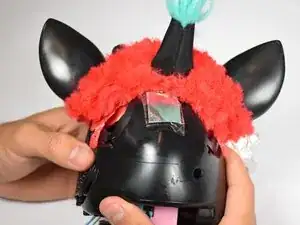

    • Remove the loose, plastic back panel by pulling the panel away from Furby's body.
