If you need to replace the fingerprint sensor on Fusion5 5.5 Gen II, this guide will walk you through how to replace the component with ease.
Before taking your device apart, you can determine if it’s necessary by referring to this troubleshooting page.
This guide will require delicate handling as you disassemble your device to access the fingerprint sensor.
You should make sure to turn off your device and ground yourself.
Please look into this EPA website on how to properly dispose of your electronic waste after finishing with the replacement of the fingerprint sensor.
-
-

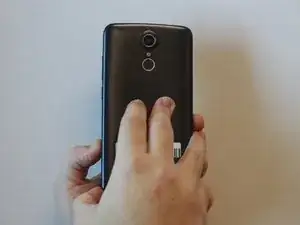

Hold the device with the screen facing away from you and the back of the device facing you.
-
Locate the groove at the bottom corner of the device.
-

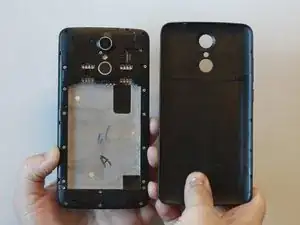

Begin prying the back cover of the device off from the groove and working your way around the outside edges of the device.
-
-
-
Remove thirteen 3mm Phillips #00 screws from the midframe.
-
Remove the single 5mm Phillips #0 screw below the camera.
-
-
-

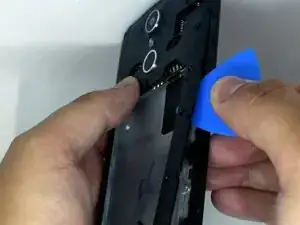

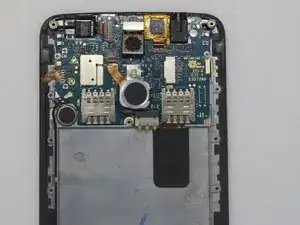

Using an opening pick, begin prying one of the top corners to remove the midframe from the device.
-
-
-

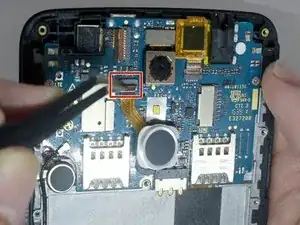

Using the tweezers, grab the ribbon cable and pull it out from its connector.
-

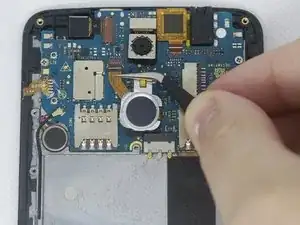

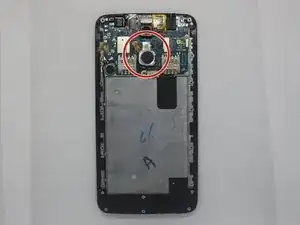

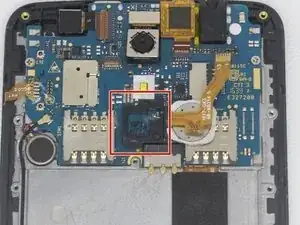

Remove the fingerprint sensor from its socket on the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
