G'z One Boulder New Antenna Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. jc6HxESaZreOuBpF
    jc6HxESaZreOuBpF
    u4hfOdfHhhGDFdxZ

    • Turn locking device on back side of phone marked by the rectangle counter clockwise.

  2. oZkRn5gBTVqwkpVB

    • Remove battery by grabbing the sides and pulling upward.

    • If battery was malfunctioning due to age or corrosion, there may be battery acid residue on the battery and the back of the phone. Wear gloves in order to prevent skin irritation.

  3. YJ4F5UOBdHyJqOLJ
    YJ4F5UOBdHyJqOLJ
    jq2FlbyLsoXRIWng
    G1TONgGA1of4haEQ

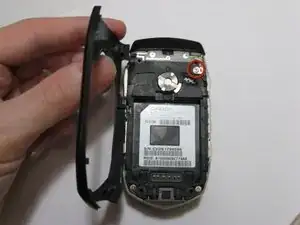

    • Remove back cover by taking out the four, five point star screws indicated in the picture. A 1.5mm flathead screwdriver can be used to remove the screws.

    • Once all screws are removed the case will easily lift off.

  4. PfnasZsSYL1ZcUdC
    PfnasZsSYL1ZcUdC
    Ms2pLQNVLuibPsO5

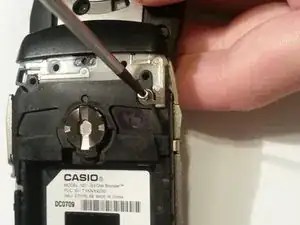

    • With the back cover removed, the antenna is now exposed. To remove it, take out the phillips screw holding it in place.

  5. NyRqpgTnSaylFWA3
    NyRqpgTnSaylFWA3
    SLkgMZuJPGKUtBta

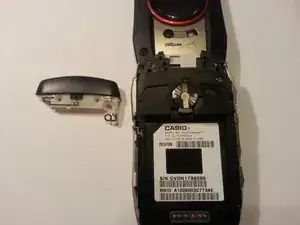

    • With screw removed, gently pull the antenna outward. It should slide out easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
