GATEWAY ML6720 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

15 Sekunden

Einleitung

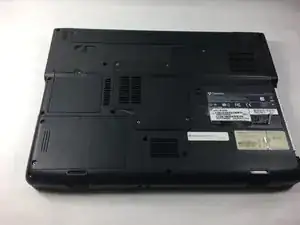

  1. Flip the laptop on to the backside.

    • Flip the laptop on to the backside.

  2. tM1WsAsAM1ZDLotD

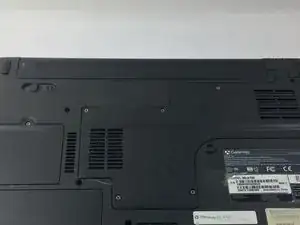

    • Locate the battery at the very top on the backside of the laptop.

  3. 2jegZZHUDBG5vTXv
    2jegZZHUDBG5vTXv
    6LVMSTgAr3G46KCD

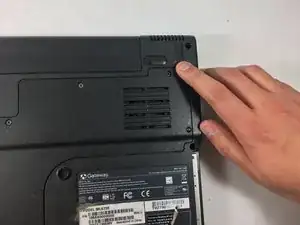

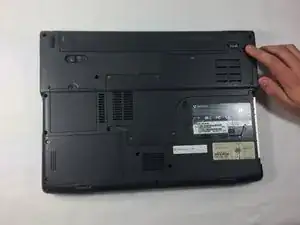

    • Slide the latch in the top right corner to the right, to set it to unlocked.

  4. ZJkEVFKihEMaWSLH
    ZJkEVFKihEMaWSLH
    ArTFMGd61AJIieqa

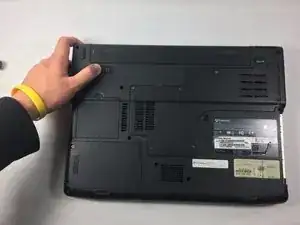

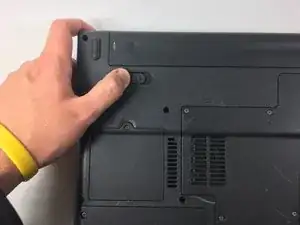

    • Hold the other latch in the top left corner to the left.

    • hold it in that place with your thumb until the completion of the next step. (This step unlocks the second latch.)

  5. PEvrhnWiUlDjXvBb
    PEvrhnWiUlDjXvBb
    MHMV3XJCVbSevX5h

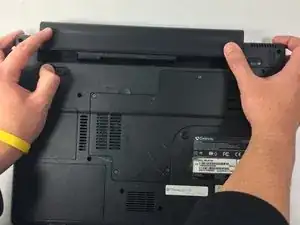

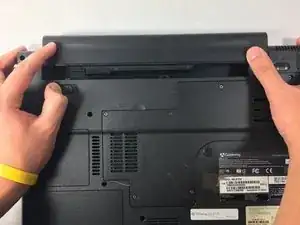

    • With both latches unlocked you can now slide out the battery, by pushing it off the top.

Abschluss

To reassemble your device, follow these instructions in reverse order.
