GATEWAY ML6720 Hard Drive Replacement

Geschrieben von: Nathan Da Silva
  • Kommentare: 0
GATEWAY ML6720 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

45 Sekunden

Einleitung

  1. n1JTyPKM13CRVnqT

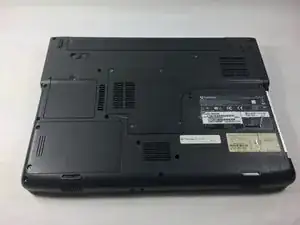

    • Flip the laptop on to its backside.

  2. WaCuMWXsmNIIbEyw

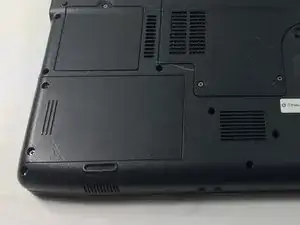

    • Locate the hard drive at the bottom left corner of the laptop's backside.

  3. g5E1CvfCBEaWoHOv
    g5E1CvfCBEaWoHOv
    WLflQ6AXMvBbCtpP

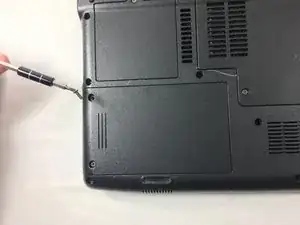

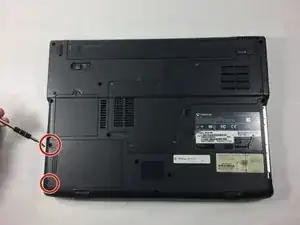

    • Insert the correct screwdriver mentioned in this guide.

    • Fully loosen and remove each of the two screws located at the top left and bottom left corners of the hard drive's cover plate.

  4. ZjLaKD3qSBDIUTDl

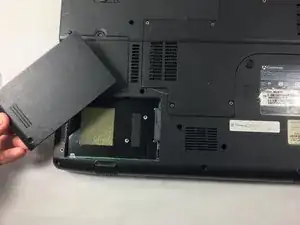

    • Slide the hard drive's cover plate out to the left and take it off.

  5. hDcgFYtOI5X5SJFD

    • Pop the hard drive out of the compartment.

Abschluss

To reassemble your device, follow these instructions in reverse order.
