Einleitung

The National Electrical Code and ​National Fire Protection Association requires that proper GFCI outlet receptacles need to be installed in places that have the danger of wetting the electronics (3’-6’ from source of the water). However, these receptacles were not widely installed in the buildings until the late 1990s.​ We believe this guide is necessary because it is a low-cost and effective repair that one can do. Electrical services can be expensive, but with our guide at your fingertips, you won’t need to call the property landlord or an electric company. Outlets are one of the most important features in any and every building. The guide will provide an easy 20 minutes steps that will make you safe from electrical shock and feel like an expert electrician.

  1. wCWqpIX21ZuH3ySt
    wCWqpIX21ZuH3ySt
    lBeAoNIgZY6p4IaV

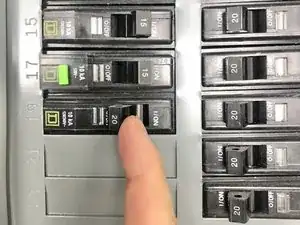

    • Find the breaker box and switch off the breaker that is labelled "GFCI receptacle"

    • If not sure, switch off all breakers.

  2. lUbuov3GR1BSTEgX
    • Push the "Test" button once.

  3. xbw3Mk6WLwM2xB5b
    xbw3Mk6WLwM2xB5b
    RwBYFyIWxZCMTDVM
    JXFEo5HDaRNbrW1I

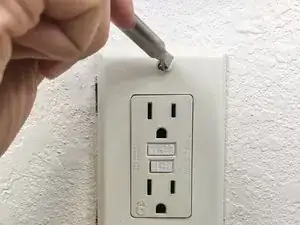

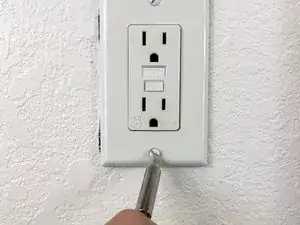

    • Using #2 flat-head screwdriver, remove the outlet cover by unscrewing the top and bottom screw.

  4. Ht5aHk4jA44NTN6E
    Ht5aHk4jA44NTN6E
    f6mjFofEGuRGBGkK

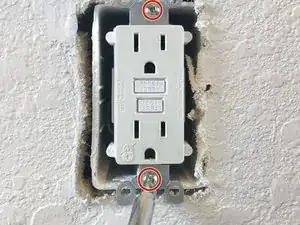

    • Using #2 flat-head screwdriver, unscrew the top and bottom screws holding the outlet onto the wall.

  5. WSVdlNlvLZMTedGn

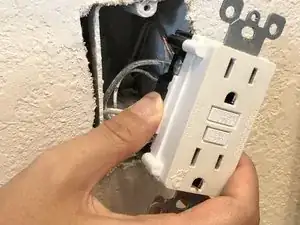

    • Pull the outlet out from the interior outlet box, exposing the wires that are inside the electrical box.

  6. MM1jQ1OeReXBRUfC
    MM1jQ1OeReXBRUfC
    ywiWj1dhoDy2btOs
    • Remove the 5mm Phillips #1 screw for the white wire (neutral wire) and free the wire from outlet.

    • The white wire (neutral wire) is typically located on the left side of the outlet.

  7. UIyKML5ABK1N1UFm
    UIyKML5ABK1N1UFm
    IXiVuYOlSVfKJNKM

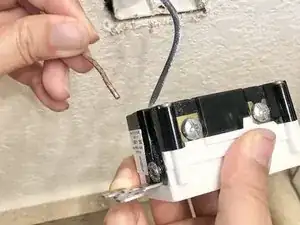

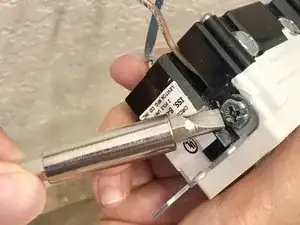

    • Remove the 5mm Philips #1 screw for the copper wire (ground wire) and free it from the outlet

    • The copper wire (ground wire) is typically located on the bottom of the outlet.

  8. 5m3SXm1VOMFtFNPC
    5m3SXm1VOMFtFNPC
    NbDRNqqOPekgNmqV

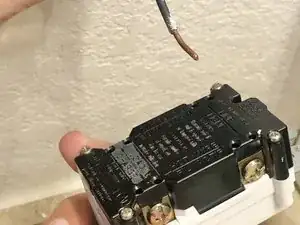

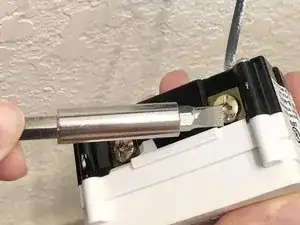

    • Remove the 5mm Phillips #1 screw for the grey wire (hot wire) and free it from the outlet.

    • The grey wire (hot wire) is typically located on right side of the outlet.

  9. qMiGpf6PTlKyxV1g
    qMiGpf6PTlKyxV1g
    nfAbNGoikBpxbwoM

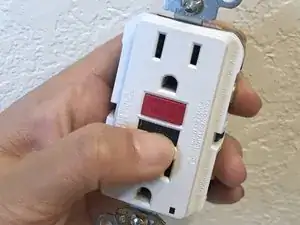

    • Push the "TEST" button on the new outlet.

  10. 3lAInCbqNXtn5irM
    3lAInCbqNXtn5irM
    fOvLOXCkfJIl3Gge
    JVMjtYCGBXlDPSpI

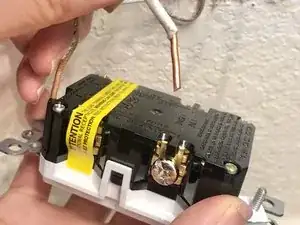

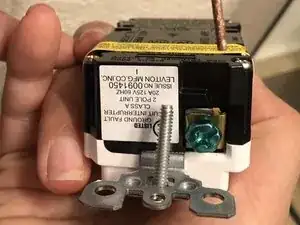

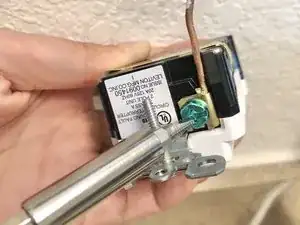

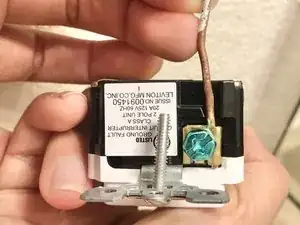

    • Retrieve the copper wire (ground wire) and slip it into the copper hole which is attached with the green screw located bottom of the outlet.

    • Tighten the screw down with flat-head screwdriver.

    • Make sure to use the original equipped screws that come with the new GCIF outlet.

  11. QQAUMl3MLtrPbxgi
    QQAUMl3MLtrPbxgi
    KjRvWTfCTvJd3RQM
    gofmQEiZsTvSRqPS

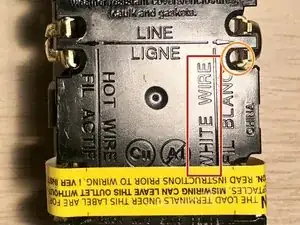

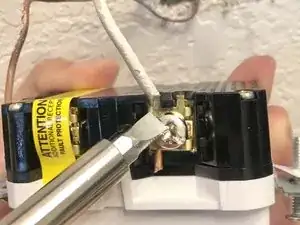

    • Locate a hole that is labeded white wire.

    • Slip in the white wire (neutral wire) into the hole located on left side of the outlet.

    • Tighten the screw down

    • The white wire (neutral wire) is typically located on left side of the outlet.

    • If there are two holes available, use the bottom hole.

  12. TXfchJyO4eoapJVQ
    TXfchJyO4eoapJVQ
    ULCQufYmVR3XgVRG

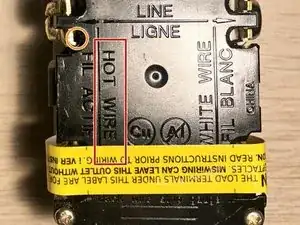

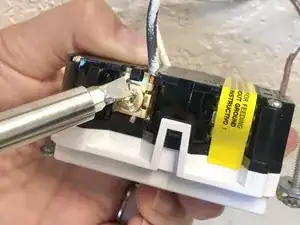

    • Locate a hole that is "HOT WIRE".

    • Slip in the grey wire (hot wire) into the hole located right side of the outlet.

    • Tighten the screw down.

    • If there are two holes available, use the bottom hole.

  13. hvKLZOoGZ2gTZRFq

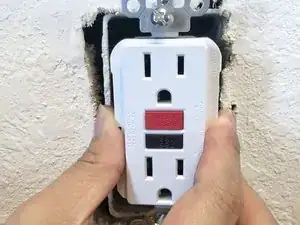

    • Push the outlet and wires back into the wall.

  14. dPdvldAKGKUhfdNN
    dPdvldAKGKUhfdNN
    3vATmQCiVNZPHRTs

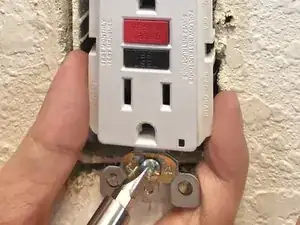

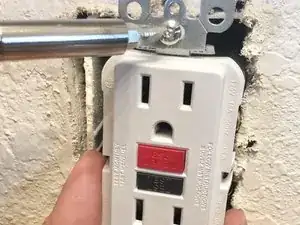

    • Tighten the screws on the top and bottom tabs, positioning the outlet so that it is vertically straight.

    • Make sure to use the original equipped screws that come with the new GFCI outlet.

  15. XROn1MZCdC6WR53v
    XROn1MZCdC6WR53v
    eLE535Rh2LAGYENq
    bs6CHVhSH6mrejtP

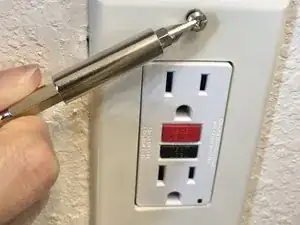

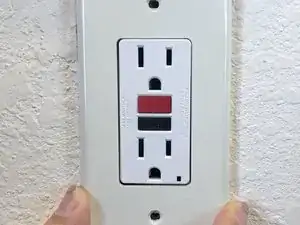

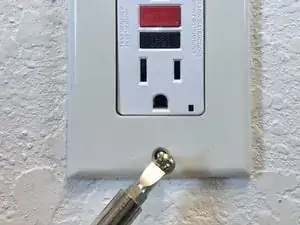

    • Install the outlet cover by tighten the top and bottom screws.

  16. MToqfdnZxnZlvHTD
    MToqfdnZxnZlvHTD
    nMRTJo5MrbFvOuJw

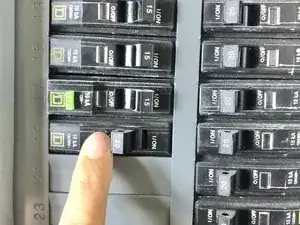

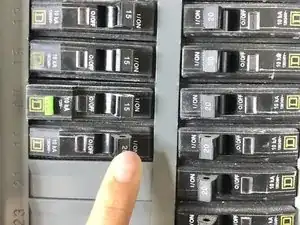

    • Turn on all the breakers that you turned off in step 1.

  17. LNOCD2LpW2vXfsGL

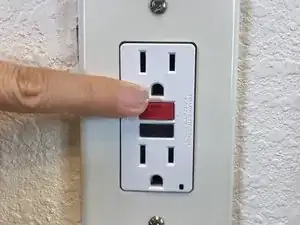

    • Push in the "RESET" button until you hear "click" sound.

    • If no "click" sound, check and make sure that the correct breaker is switched to on position.

    • If still not getting "click" sound, start over from step 1 and make sure all three wires are inserted fully into the correct holes.

  18. mLyQY1ADBVsviXob
    mLyQY1ADBVsviXob
    beKd56GmDqvlEwDW

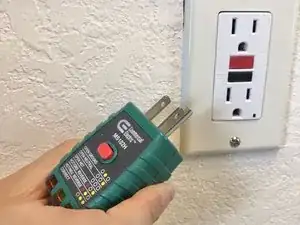

    • Plug in the circuit tester into one of the plug.

    • Two yellow led lights will light up if the new outlet is installed correctly.

    • If two yellow LED lights does not light up, go back to step 1 and make sure the wires are fully inserted in the correct spots.

  19. ixci1P1LwSGSYeqO
    • Congratulations, enjoy your functional GFCI outlet receptacle!

Abschluss

To reassemble your device, follow these instructions in reverse order.

Kee Choi

Mitglied seit: 04/02/20

478 Reputation

2 Kommentare

If the GFCI outlet has two sets of white and black wires, keep track of them. One set will be coming from the breaker and plug into the LINE labeled screws, and the other set (labeled LOAD on the GFCI) goes to other “downstream” outlets that also benefit from the GFCI outlet's protection.
