Einleitung
GPD WIN is a very good game console.
However, I was so absorbed in it that the controller got messed up.
At this rate, you will not be able to perform any tricks or reload!

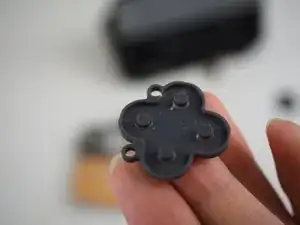

Replace the silicone pad immediately
Ersatzteile
-
-

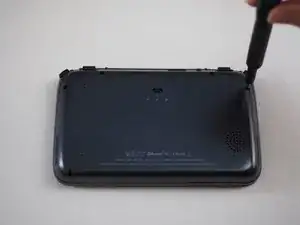

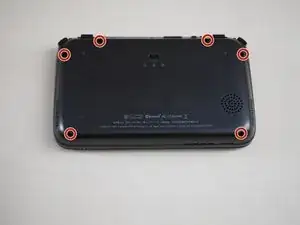

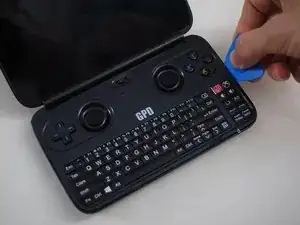

There is a small space beside the keyboard, insert the pick and remove the claw
-

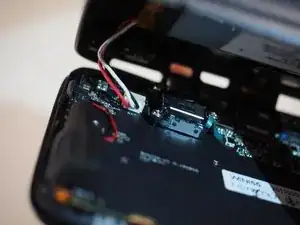

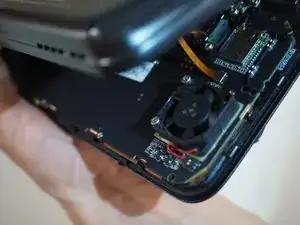

As you open the device, you can see that the flexible cable and the battery cable are connected. Then unplug the connector.
-
-
-

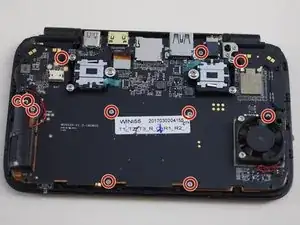

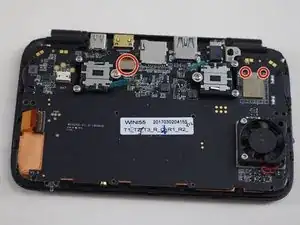

Remove screws on the logic board.
-

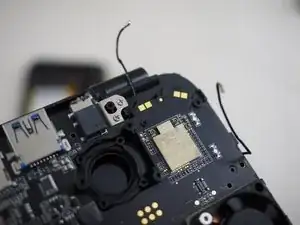

Because some black threads are mixed, do not forget to remove
-
-
-

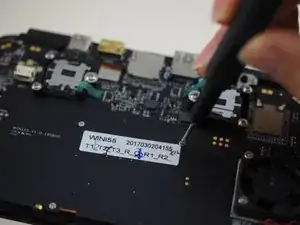

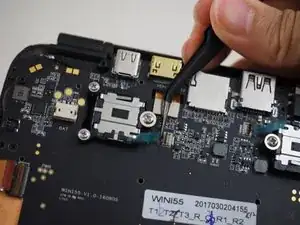

Remove the screws of the joystick and remove the flex cable from the connector.
-

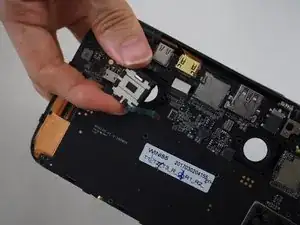

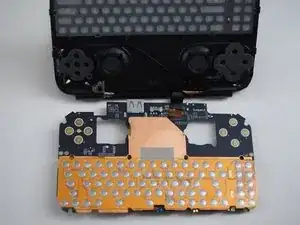

Then, it is ready to pull logic board out of the case.
-
Abschluss
To reassemble your device, please follow these steps in reverse order.
