GPU Replacement is something you do once your old GPU is obsolete, so we’re here to show you how to replace you old one with a new one, no special skills required.
This is an easy step by step guide on how to replace a Graphics Processing Unit (GPU) that is inside a Deepcool Kendomen, on an MSI Z97 Gaming 5 Motherboard.
- Before using this guide please ensure that you have your new GPU unpacked and ready to install.
- Please turn off your Desktop before starting.
Here is the user guide released by Deepcool for the Kendomen.
Werkzeuge
Ersatzteile
-
-

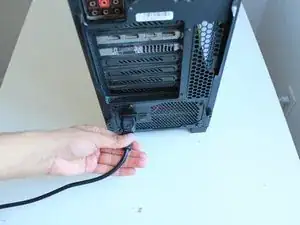

Unplug your desktop from the wall outlet.
-

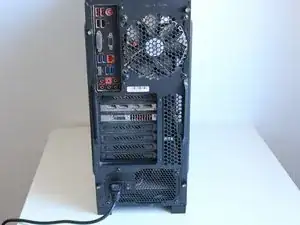

Turn your desktop so you have access to the back of the device.
-
-
-

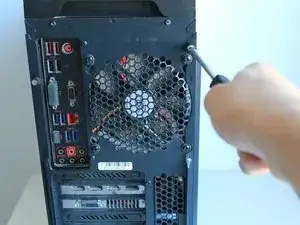

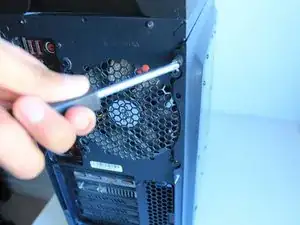

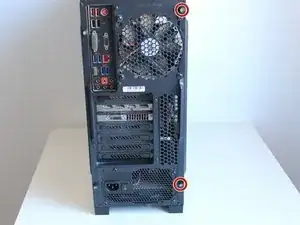

Use the Phillips #0 screwdriver to remove the two 15 mm screws on the glass panel side and remove the panel.
-
-
-

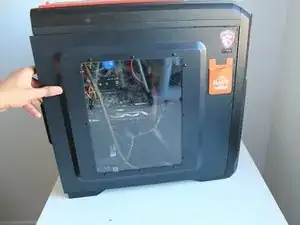

Gently remove the glass panel, by sliding it towards yourself.
-

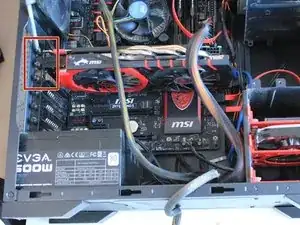

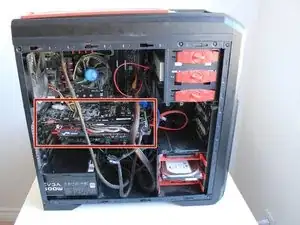

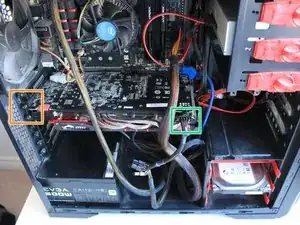

The GPU is highlighted.
-

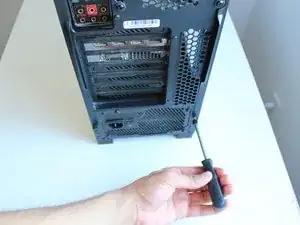

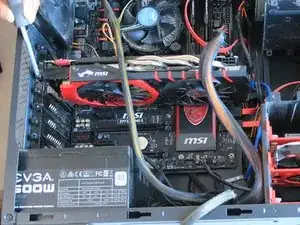

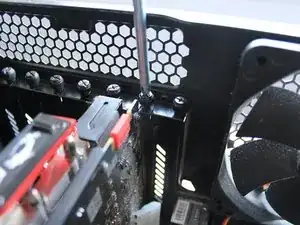

Using the Phillips #0 screwdriver, remove the three 14 mm screws connecting the GPU to the motherboard.
-

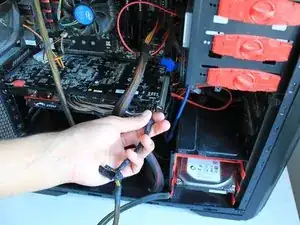

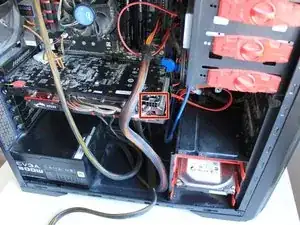

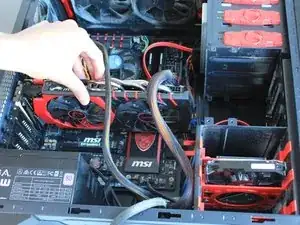

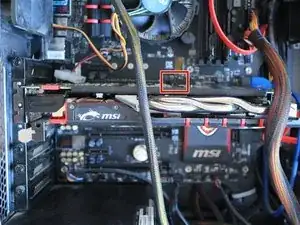

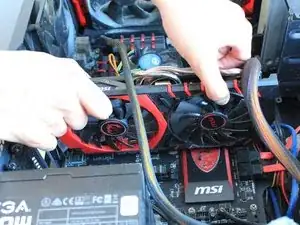

Unplug the power cable on the GPU.
-
-
-

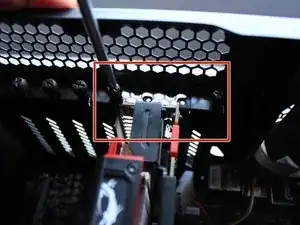

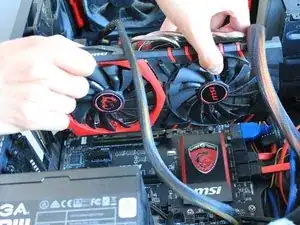

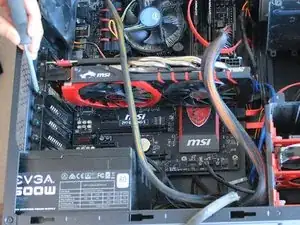

Use the Phillips #0 to remove the three 14mm Phillips screws from the GPU and motherboard so we can remove the GPU later.
-
-
-

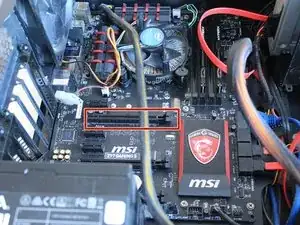

Line up the GPU with the PCI-E Slot.
-

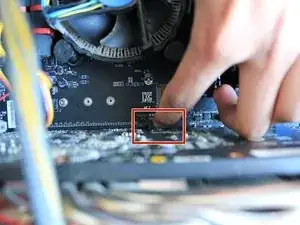

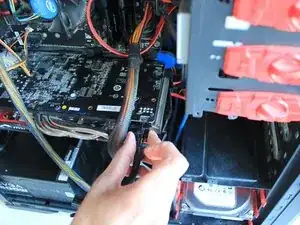

Push the GPU in, make sure to line it up properly with the PCI-E and the rear end of the case.
-
-
-

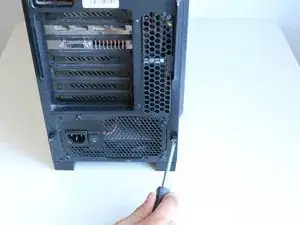

Using the Phillips #0 screwdriver, screw in the two 15 mm screws back into the case to lock the panel into place.
-
-
-

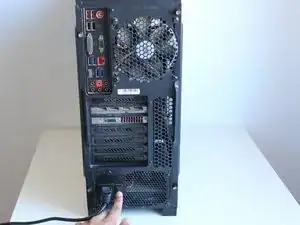

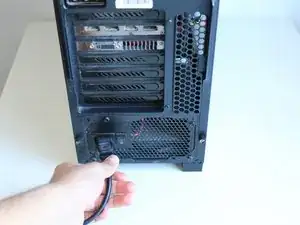

Connect the female part of the power cord into the PSU.
-
Turn on the switch and power on your PC.
-
The brand or generation of GPU you intend to install does not matter, as long as it can fit the PCI-E slot located on your motherboard.
