GameSir T4 Pro Directional Pad Replacement

Geschrieben von: Madison Puckett
  • Kommentare: 0
GameSir T4 Pro Directional Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

This guide will help you repair the directional pad on your GameSir Pro T4.

Directional pads need replacement after wear and tear over time or if it somehow cracks.

  1. EKYDuOuhGH3IVs2m

    • Using the Phillips 1 screwdriver, gently turn the screw to the left (repeat this step until all four screws are taken out).

  2. Z253w1hw1YAOjJxm

    • Use your iFixit opening tool to break the seam of the back of your controller.

    • Be careful when pulling apart, as the charging port wires are connected to both sides of the controller.

  3. jUg1fYhBZi5jeRCv

    • Using the plastic spudger, wiggle the connection out of place.

  4. eFTIEf6Ls2hFPq6f

    • Apply a slow, but consistent pull to the old 600 maH battery.

    • Attach new battery onto the pad

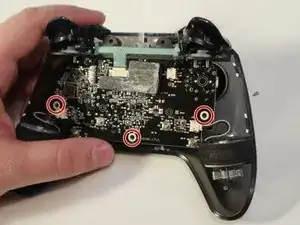

  5. 4RBW2YohlQcFijic
    4RBW2YohlQcFijic

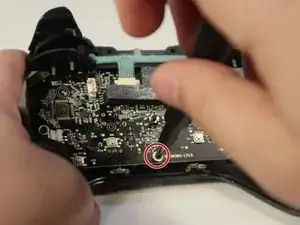

    stljQlR1ZrsvdgSe

    • To get to the directional pad (d-pad), remove the three 5mm screws on the motherboard.

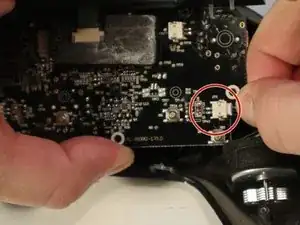

  6. MGnlVlXg2P1UWhyb

    • Disconnect all white connectors from the motherboard.

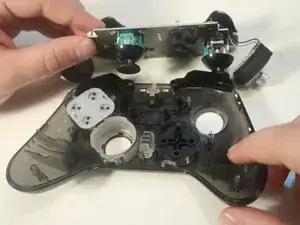

  7. kGVRUTBFYYapZtLG

    • Carefully pull the motherboard away to reveal the front panel.

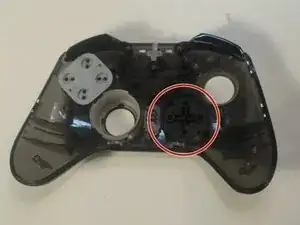

  8. QruOohZLlvnlnxA5

    • Remove the d-pad from the front panel.

  9. jWRRZMaZkSIGEiXa

    • Place your new d-pad in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
