Einleitung
Hi!
Just created a guide on how to install a AGS-101 screen in the Gameboy Advance.
It’s not hard to do and it’s pretty neat to have blacklight screen build in.
Hopefully you will enjoy doing this with using my guide!
Good luck!
-
-

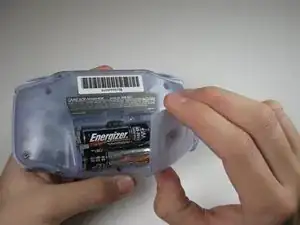

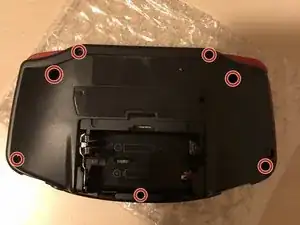

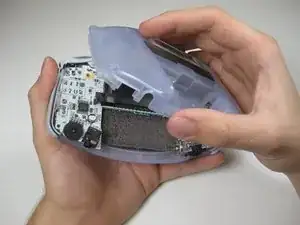

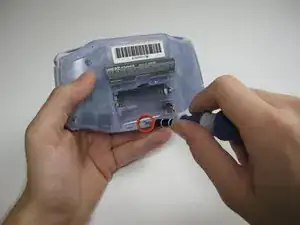

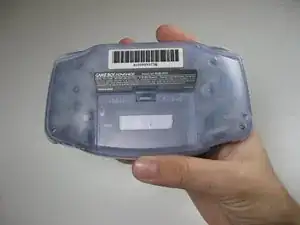

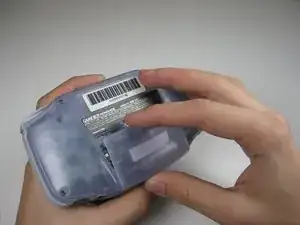

Remove the back panel by pulling away with one hand and the front secured in the other hand.
-
-
-

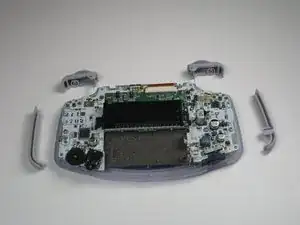

Remove left and right triggers by lifting and pulling them away from the system.
-
Do the same for side panels.
-
-
-

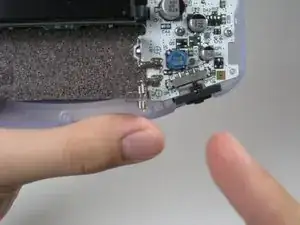

Remove the gray On/Off Switch by pulling up and away from the unit. Replace with another switch if necessary.
-
-
-

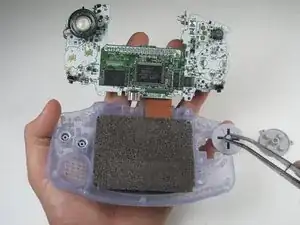

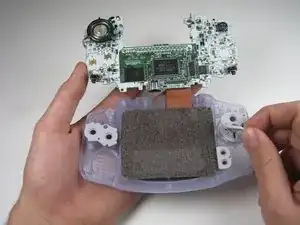

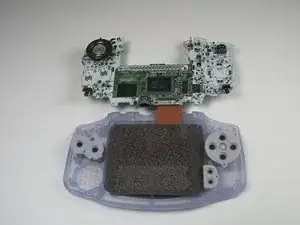

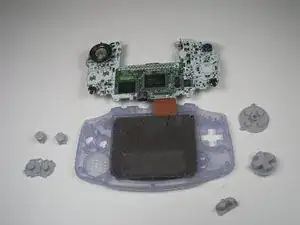

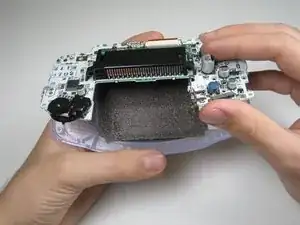

Pull circuit board away from the front panel by pulling up at the bottom of the circuit board, keeping the top ribbon still connected.
-
-
-

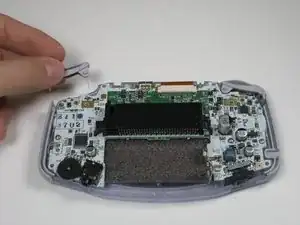

Remove the rubber button pads from their pockets.
-
Remove the plastic buttons and the D-pad from beneath the rubber pads with tweezers or by hand.
-
-
-

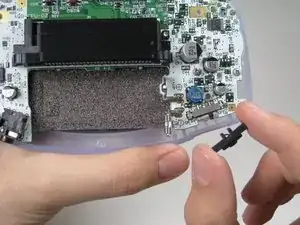

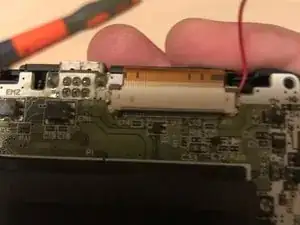

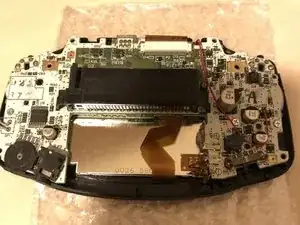

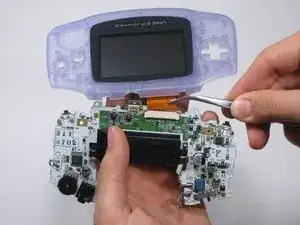

Use a spudger/tweezers/fingernail to unlatch the LCD ribbon port by pulling the grey tabs on the sides upwards (towards the top edge of the PCB).
-
Once the LCD ribbon port has been unlatched, the LCD ribbon should very easily slide out and can be removed with zero force using fingers or tweezers.
-
-
-

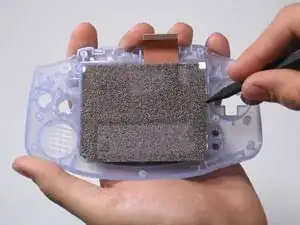

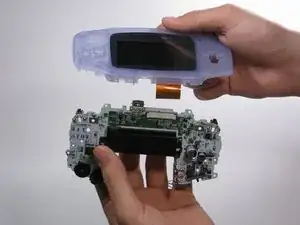

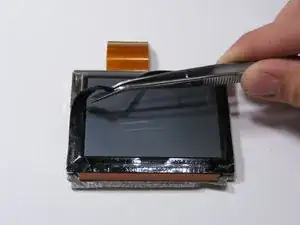

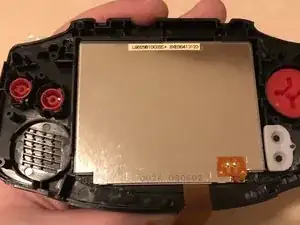

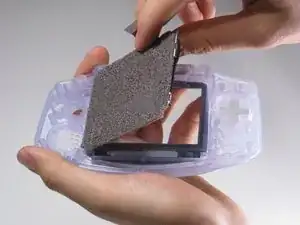

Use the spudger to lift the screen from the front panel. Place the spudger in the space directly left of the D-pad.
-
-
-

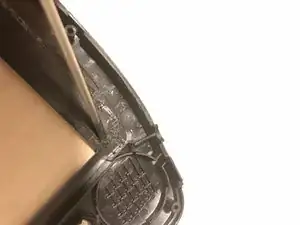

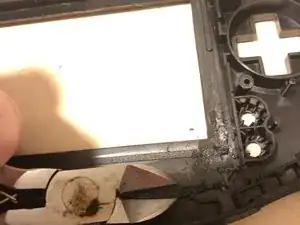

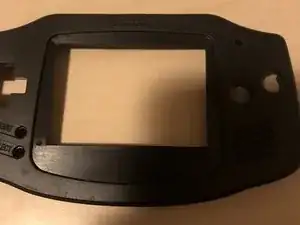

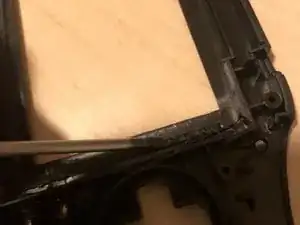

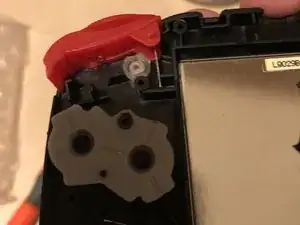

Cut the plastic from the shell, aligned with red markers.
-

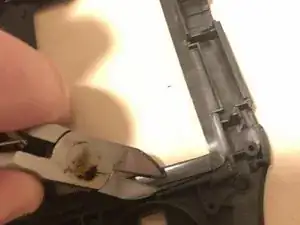

Use a cutter to cut the big pieces of plastic.
-

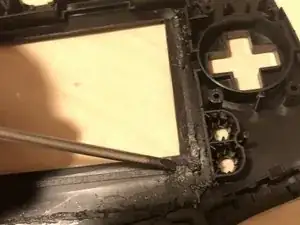

Use the cutter again to cut some plastic from the shell. This is required for the LCD to fit properly.
-
-
-
Use a knife or a flathead screwdriver to flatten it. Make it as flat as possible and take all the plastic away.
-
Do this for all sides which you have cut before.
-
-
-

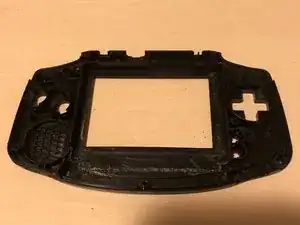

Inspect if everything is cut and if everything is flat. If it looks good, then proceed!
-
Don't worry about the front. Most of the times the front is still good, the cutting at the back side won't be visible when everything is in. But please check before you proceed.
-

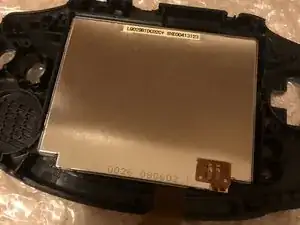

Test if the screen sits flush.
-
-
-

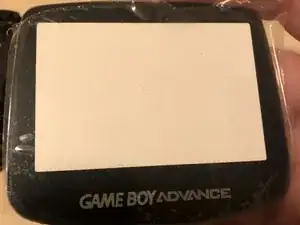

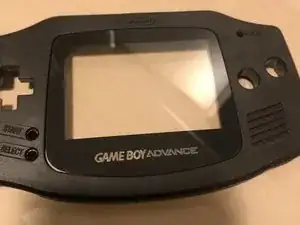

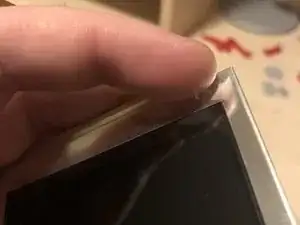

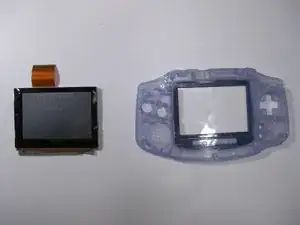

Place a new lens in the shell.
-

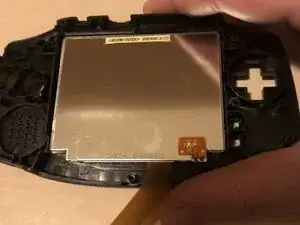

It should look like the 2nd picture. It should be attached with the tape that's already on the lens. Make sure that the lens is clean and not damaged!
-
-
-

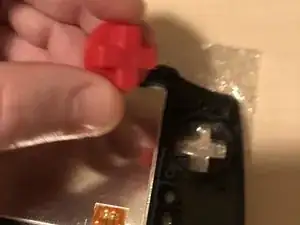

Put the rubbers in.
-
You can also place the L/R buttons in already, but it won't be a problem to do this later if you want.
-
-
-

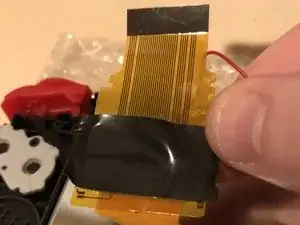

Fold the LCD cable in a "Z" form. The cable is too long, this needs to be done, otherwise it won't fit.
-
-
-
Now it's a good time to take the adapter with you!
-

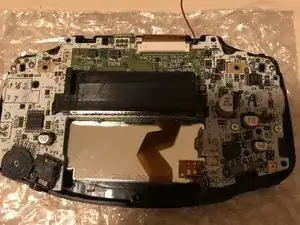

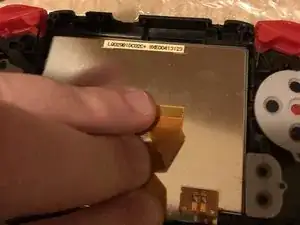

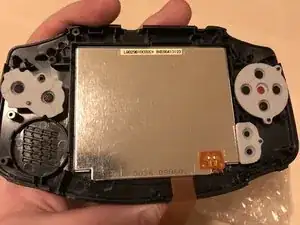

Plug the LCD cable in the ZIF socket as displayed in the 2nd picture.
-

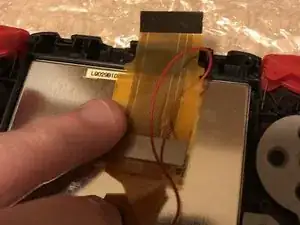

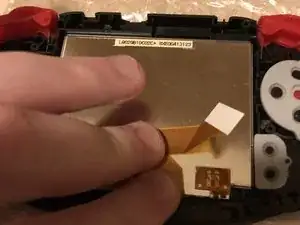

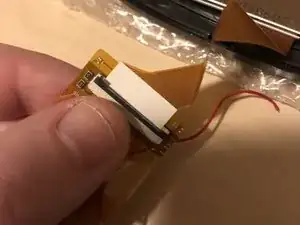

Fold the LCD cable in the "Z" form again and place the adapter on the screen as displayed in the 3rd picture.
-
-
-

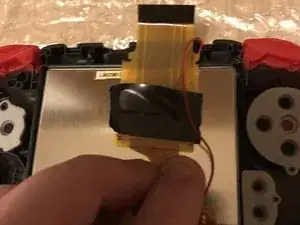

Usually there is tape on the bracket, but if not, just place some anti-electrical tape to secure it.
-
Don't forget to fold the cable in the "Z" form.
-
-
-
Place the motherboard in. WHEN the motherboard is at place, then proceed.
-

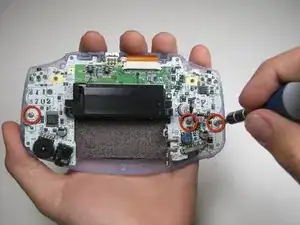

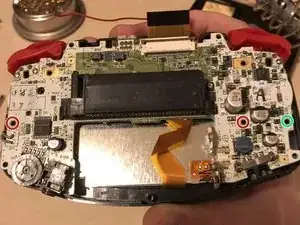

Put the screws back in, highlighted in red.
-
Some models have a third screw.
-

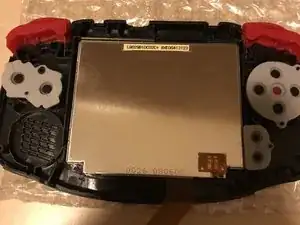

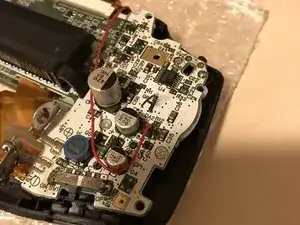

The 2nd picture shows when everything is in place with the screws in.
-
-
-

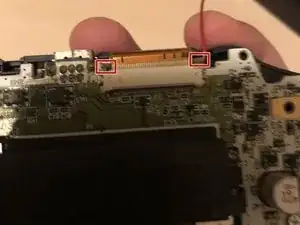

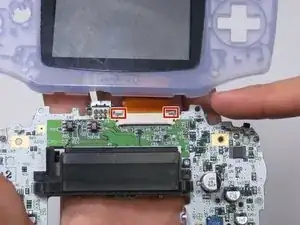

Open the ZIF connector again and put the cable back in.
-
Close the ZIF connector with the LCD ribbon cable in. Make sure the red cable from the adapter is at it's place as shown in the 2nd picture.
-
The 3rd picture shows how it needs to be.
-
-
-

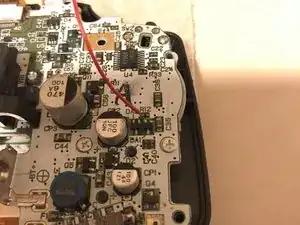

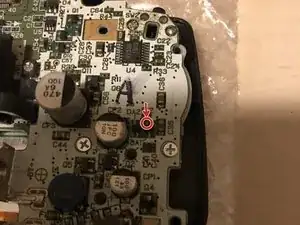

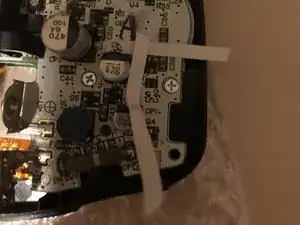

This is the pin you need! It's the LEFT leg of DA1 !
-
Put tape on the other IC's. Just to prevent bridges and just to be sure that you have the correct pin.
-
-
-

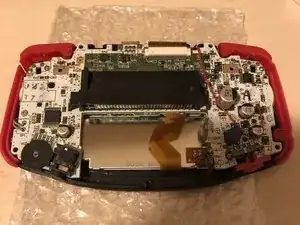

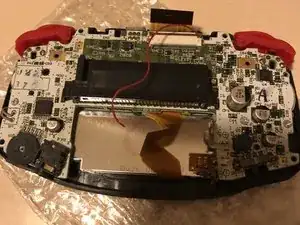

Route the cable as shown in picture 1.
-
The 2nd picture shows when it's all good and finished.
-
Now place the bumpers and the L/R buttons (if not done earlier). Don't forget to place the on/off button back too!
-
-
-

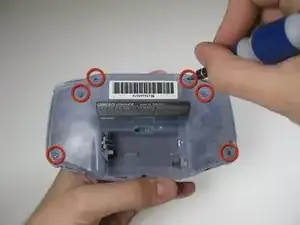

Place the backplate back and put the screws back in.
-

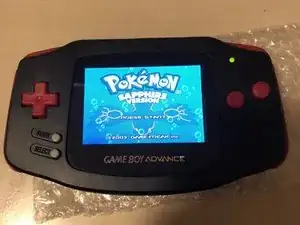

That's it! If everything is done it should work now. Have fun gaming!
-
That’s it! If everything went as it should, you can play the GBA/GBC/GB games with your blacklight screen!
