Gaming PC CPU Cooler Replacement

Geschrieben von: Jonathan Nunez
  • Kommentare: 1
Gaming PC CPU Cooler Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

Use this guide to replace the CPU cooler. The CPU cooling fan is very important as it cools down the computer; preventing it from overheating and causing it to slow down. Replacing it will help your CPU to have a longer life time and reduce e-waste.

  1. i4wnUmq1jqiJrefO

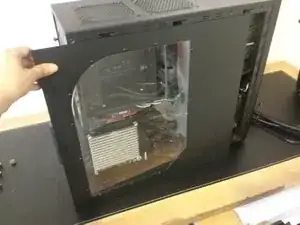

    • Unplug the computer and any connecting cables before starting.

    • Remove the screws holding the side panel from the back side of the computer case.

  2. LRWAPg6y6yCiEefK
    LRWAPg6y6yCiEefK
    JoKKgcWwEsKRoGyK
    h4AbKnX3TRM2C6nm

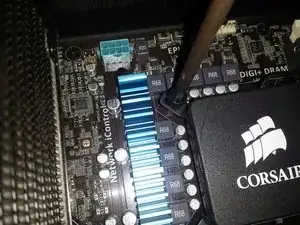

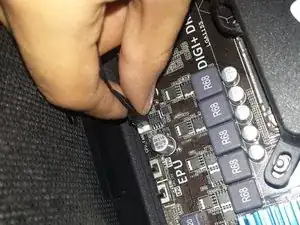

    • There is a cable connected to the cooler unplug it from the motherboard.

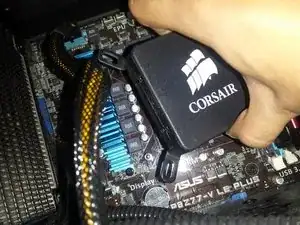

    • Unscrew the screws holding the cooler at the corners of the CPU.

    • Take out the cooler and place it at a reasonable location, underside up.

    • Remember the location of where the cable connected to the cooler is.

  3. oTFdKm1EyVsCOSZp
    oTFdKm1EyVsCOSZp
    4ArXbhvdC4t6U5Qe
    VJLsV2ElV5eHxVZ6

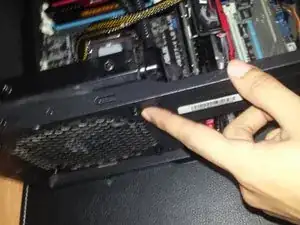

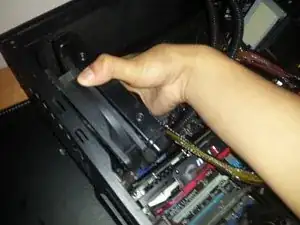

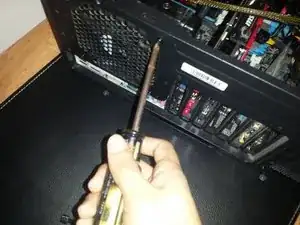

    • Find the location of the radiator and locate the screws holding it.

    • Remove the screws and being to hold both the radiator and fan as the last screw is coming off.

    • Remove the radiator and fan.

  4. LvQbE1QPDjZYj2JI
    LvQbE1QPDjZYj2JI
    AIrZfudWVKEUnPPl

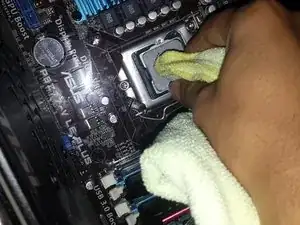

    • Put a little bit of isopropyl alcohol on the microfiber.

    • Clean all of the thermal paste residue from the CPU.

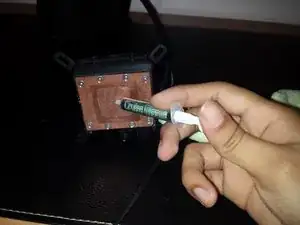

    • The new cooler usually comes with its own thermal paste, but if it doesn't or you want to add better thermal paste, clean the cooler the same way as the CPU.

    • Add a small amount of thermal paste at the center of the cooler.

    • Make sure that the surface of the CPU and cooler is dry before applying the thermal paste.

  5. BaUSQMlRYdPglKWU
    BaUSQMlRYdPglKWU
    1SgdfIedjCr5PL2q
    YVQGZDPFS6BnNih4

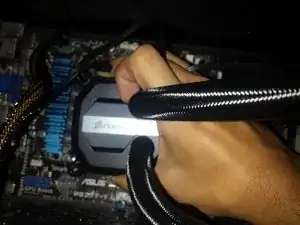

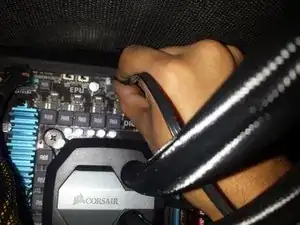

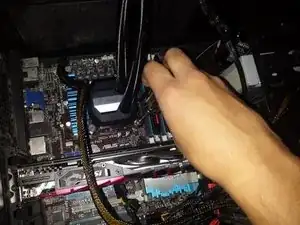

    • Place the new cooler over the cpu and align it with the four corners where the previous cooler was attached to.

    • Screw in the cooler, start at a corner and then move on to the corner diagonal from it, making an "X" shape as you screw them in.

    • Dose not have to be tight, just as long as the cooler does not move, and both cooler and CPU are touching.

    • Plug in the power of the cooler in the same location of the previous cooler.

  6. EM3EIWFDgZ4lIVMF
    EM3EIWFDgZ4lIVMF
    3JinsounqiJ5eEGf
    cQglkoYD4WlWZyOw

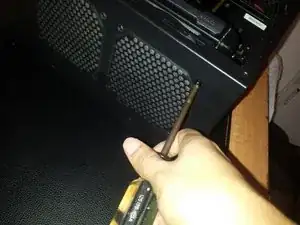

    • Locate a suitable location for the new radiator(May not be the same location as the original one).

    • Fans should be facing out.

    • Screw the fans and radiator to the location together.

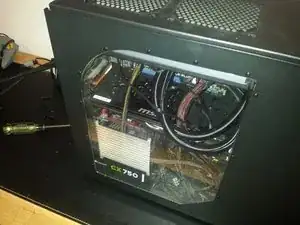

    • Put the side panel back in place.

    • Once the computer is on, listen for the fan to make sure it is working or place hand over the location of where the fan is to feel for the wind from the fans.

Abschluss

By replacing the CPU cooler the lifespan of the computer will be lengthen with the small upgrade. By replacing certain parts within a computer it would no longer be necessary to buy a new computer and increase e-waste. By lowering the amount of e-waste it would help the environment.
