Garmin Approach S2 Screen Replacement

Geschrieben von: Evan Miller
  • Kommentare: 1
Garmin Approach S2 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 - 30 Minuten

Einleitung

In this guide there are delicate parts that will very easily break under tension. Keep this in mind as your move forwards.

  1. x1CuXMZxxL6rvLpN
    x1CuXMZxxL6rvLpN
    ryIVNjkO52ndt1lW

    • Remove the six T5 Torx 6.32mm screws securing the back cover to the watch.

    The bracelet on the same side as the S2 logo must be removed as well. 2 very small allen wrenches must be used to removed the bracelet screw.

    Thomas Glasgow -

  2. BjJCUABca2WclENk

    • Remove the back cover carefully.

    • Even after the screws have been removed, the back cover can still be quite difficult to take off. Moderate to extensive prying may be required. Be gentle, but firm.

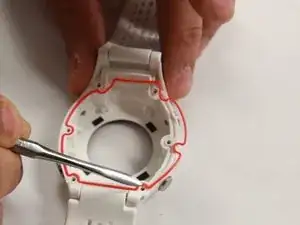

  3. XSffhNlePf4SMQQQ

    • Remove the orange gasket.

  4. yMlcPYkaUB2qImor

    • Remove the screen and motherboard assembly from the case.

  5. BICJOId3shPcFMdC

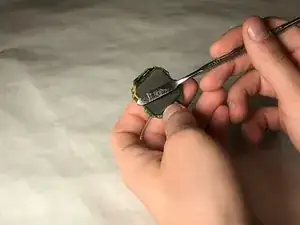

    • Use a metal spudger to remove the golden retaining clip from the screen. There will be some adhesive to break.

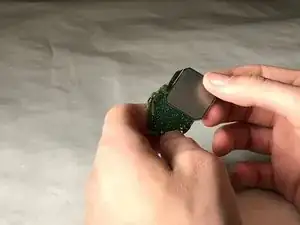

  6. aEbKA1vPO5yoI1PB

    • Remove the screen from the golden metal clip.

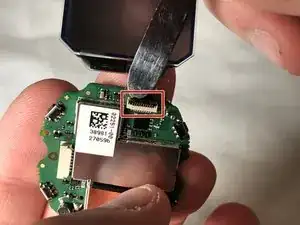

  7. 1DXRXNeNGNyRlypq

    • Unhinge the black retaining hinge by prying it open with the metal spudger; Your fingernails will work as well.

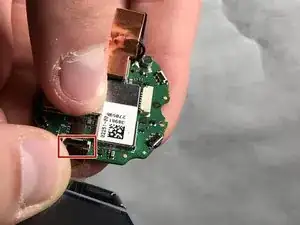

  8. ReScvugS5OXejIwL
    ReScvugS5OXejIwL
    HCdmsnrc1GaLBKtu

    • Remove the connector from the motherboard by pulling it free at the base.

    • Make sure to pull from the base of the connector wire, as it is very easy to rip the wire from the screen.

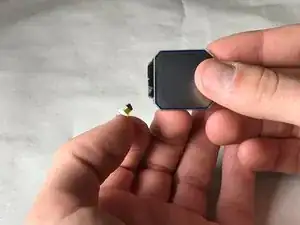

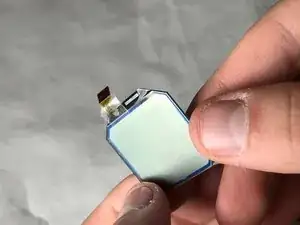

  9. fTyBFw1jEVVtcIie

    • Remove the screen from the motherboard.

    • Notice our tape retaining the connector to the screen. This is so easy to rip!

Abschluss

To reassemble your device, follow these instructions in reverse order.
