Garmin Dash Cam 20 Screen Replacement

Geschrieben von: Jesse Hillman
  • Kommentare: 0
Garmin Dash Cam 20 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

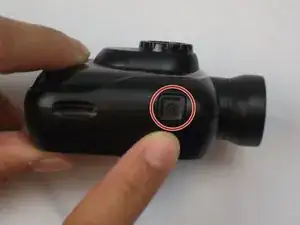

  1. aAUZZHquFKtTeUqW
    aAUZZHquFKtTeUqW
    3CAOaGXV3YTXiala

    • Be sure to turn off the Dash Cam by pressing the power button.

  2. XhoDtg1fAOVNKaYY
    XhoDtg1fAOVNKaYY
    GDrJ233xnlsvjRk6

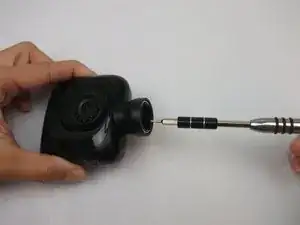

    • Rotate the Dash Cam to where the socket faces you.

    • Remove the 9 mm screw using the Torx T6 screwdriver.

  3. TVWp2O5QcQkMNyD3
    TVWp2O5QcQkMNyD3
    1EFIMOaFGxGMRNBv

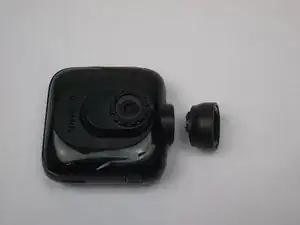

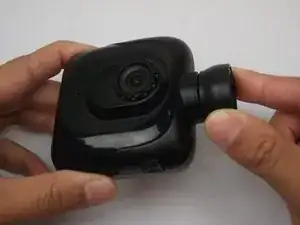

    • Remove the Dash Cam socket piece.

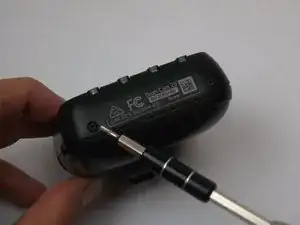

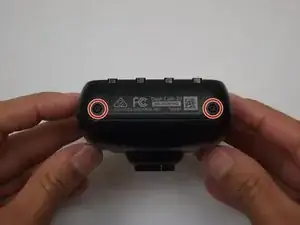

  4. jRvlnbBoWNutfIQf
    jRvlnbBoWNutfIQf
    fCRpdudxDksQTFsw

    • Rotate the Dash Cam to where the product information faces you.

    • Remove the two 5 mm screws using the Torx T5 screwdriver.

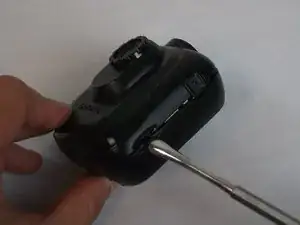

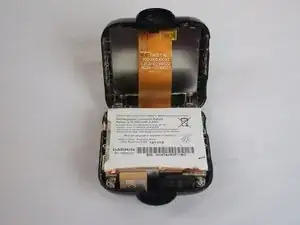

  5. cSAIJknpDoOLh5or
    cSAIJknpDoOLh5or
    xPb5qWucM4HhcOCg
    EVvZqJiBWLYvqyKf

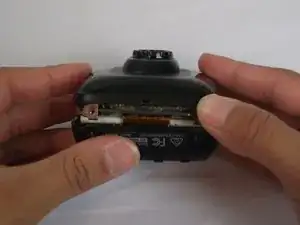

    • Remove top case from the bottom case.

    • The compact nature of the casing requires use of the metal spudger for needed leverage.

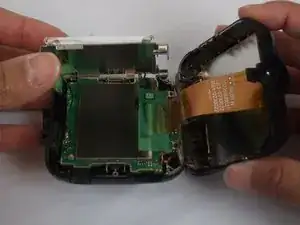

  6. J1oZQEoYQbhFOhLN
    J1oZQEoYQbhFOhLN
    KqAR2sNKlJHFkTrC
    HSMUZdIskTAKP3JJ

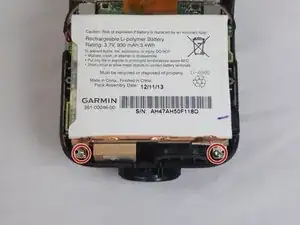

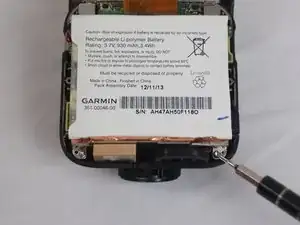

    • Remove the two 5mm screws using the Torx T5 screwdriver

    • By removing the screws, the metal battery frame will now become free from the rest of the device.

  7. jXNUg3sDa2J3Uo6m
    jXNUg3sDa2J3Uo6m
    K23AtNfW1m2xPBoU
    iBk4i5asocV1yyqC

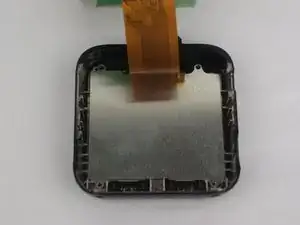

    • Use the Phillips screwdriver to remove the four 5mm screws.

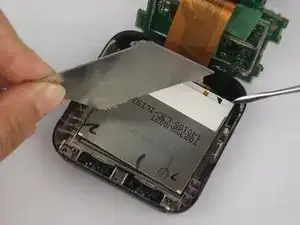

  8. xBcJZh24mLwbqdZE
    xBcJZh24mLwbqdZE
    VHIyYMuBWjSqGDVT

    • Use the metal spudger to remove metal plate from device. This will reveal the screen.

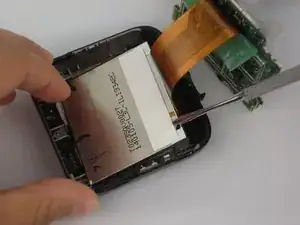

  9. gKte3eOEqXuPQIZk
    gKte3eOEqXuPQIZk
    KowKAtCmkLj6pdcm
    sDhm1ADWfcQbTNde

    • Use the metal spudger to remove screen from device.

  10. 3RAialrw5rlpILYR

    • The screen is now detached.

Abschluss

To reassemble your device, follow these instructions in reverse order.
