This guide will show you how to properly and safely remove the Garmin Dezl 760LMT's screen from the motherboard and its casing.

  1. GhElHAIExlyB1wvE
    GhElHAIExlyB1wvE
    UQhMt3VXsYuB2VGC

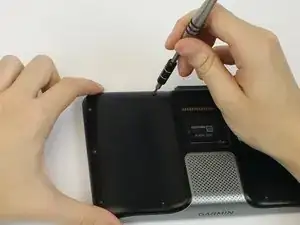

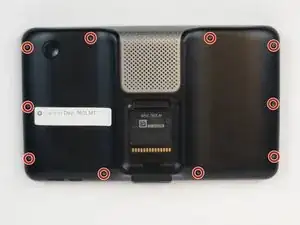

    • Using a Torx T6 Screwdriver, remove the ten 7mm screws from the back panel.

  2. hfoSQwaKyKwUwQuO
    hfoSQwaKyKwUwQuO
    egwKBpGKadySIGOG
    q1URsYLumjL52fEe

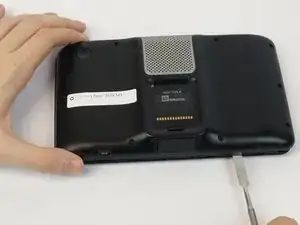

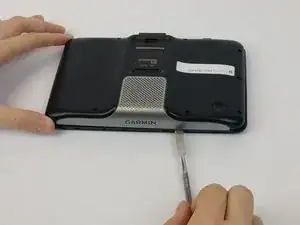

    • Using a metal spudger, pry the device apart.

    • To recombine them, line up the two halves of the device and press them together.

  3. xApZnQYHULdYFKxc
    • Turn the device over, laying it on its back with the screen facing upwards.

    • Lift the front panel away from the silver part of the back panel.

    • Make sure not to rip the ribbon cable that is connected to the screen and the motherboard.

  4. 6GgkPg4aeNZdaHoN
    6GgkPg4aeNZdaHoN
    CAD4Uk1CfifV4CGW

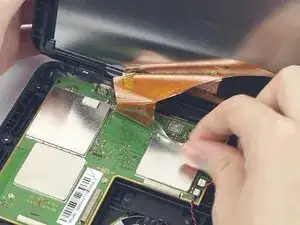

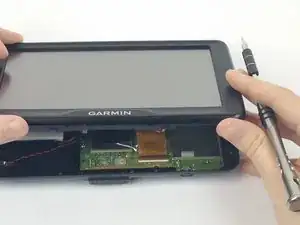

    • Lift the screen opposite where the "GARMIN" logo is located. Remove the clear tape holding the ribbon cable to the motherboard.

  5. yKUoE5TAGRP5ZfS4
    yKUoE5TAGRP5ZfS4
    kUYrZqKMPDNhOeBK
    • Find and lift the small grey hinge at the end of the ribbon cable.

    • When handling the motherboard, make sure to wear an anti-static wrist strap.

  6. GA5GEE1LlmRrbIXp
    GA5GEE1LlmRrbIXp
    WMTXuRbw2ipAescx

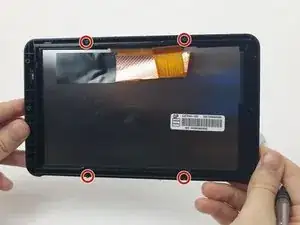

    • Using a Torx T5 screwdriver, unscrew the four 7mm screws from the back plate of the screen.

  7. 26UiWlPTGUgKjKjj
    26UiWlPTGUgKjKjj
    pDYWusJQ6U4HL1ZG
    isGwubuXfIK5vLy3

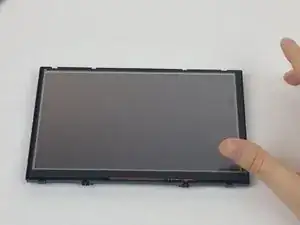

    • Turn the screen over so that it is facing upwards.

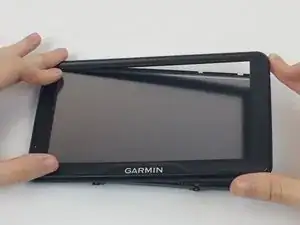

    • Remove the front plate of the screen.

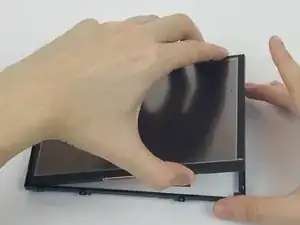

    • Lift the screen from its back casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
