Garmin Dezl 770LMT Speaker Replacement

Geschrieben von: Francisco Rosado
  • Kommentare: 3
Garmin Dezl 770LMT Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

  1. RglrkRhuoCGGuCjc
    RglrkRhuoCGGuCjc
    ohI5QHOP6pGHoQSP

    • Turn the device screen down and using the screwdriver remove all eight screws from the back plate.

  2. 5MGKAG2ogTGE4PhZ

    • Place a nylon spudger in the seam between the front and back panel and carefully lift around the edge of the device.

  3. 4DRpGtWOZeB3IoGP

    • Use the spudger to pry apart the screen from all around the device.

    • Gently lift the screen so not to disconnect the ribbon attaching the screen to the motherboard.

  4. IlOPUCJUGxDwNbWy
    IlOPUCJUGxDwNbWy
    HSy3RvbwNGZ4DJmd

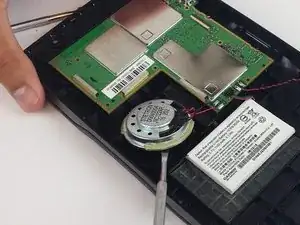

    • Using the sharp side of the spudger, scrape away the adhesive surrounding the speaker.

    • Slide the spudger beneath the speaker and pull it away from the case.

    • The regular black nylon spudger should be used whenever possible, especially around sensitive internal components.

    Hi where can I get the speaker part from please?

    Noel Borg -

  5. oHtU1nMURc6tePoB
    oHtU1nMURc6tePoB
    SBS2vP2NOTdxRrp4

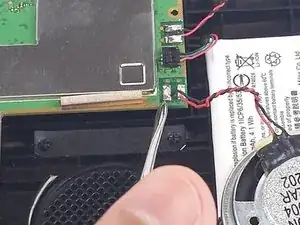

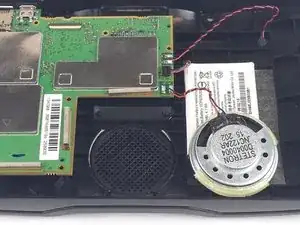

    • Grasp the wire connecting the motherboard and pull the wares connecting it.

    • Remember to wear an anti-static wrist strap when handling the motherboard.

    Where can you find a replacement speaker? Garmin does not offer

    Brian Smith -

Abschluss

To reassemble your device, follow these instructions in reverse order.
