Garmin Drive 60LM Speaker Replacement

Geschrieben von: Andy Flores
  • Kommentare: 0
Garmin Drive 60LM Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

To replace the speaker in your device you will need a T4 Torx screwdriver, a metal spudger, a plastic spudger, and a replacement speaker. Be sure to have a large workspace to avoid mishandling or damaging the device components.

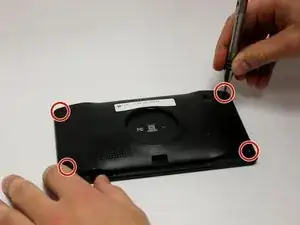

  1. ZUhDwHEQslFRYmkc
    ZUhDwHEQslFRYmkc
    6hAOrqlINNGXyhvh

    • Using the T4 Torx screwdriver, unscrew all four of the screws (1/4 inch, 6.35 mm) from the back panel of your device.

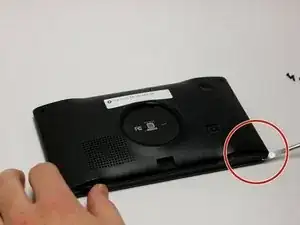

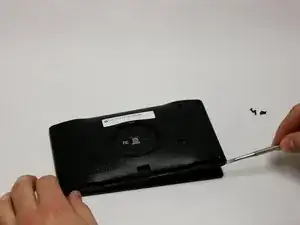

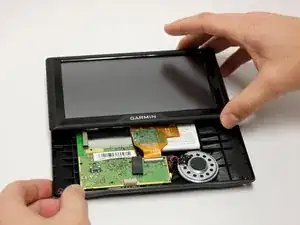

  2. kJxtWq1QwHOKKWsb
    kJxtWq1QwHOKKWsb
    sySNBJmP4fydUcrd
    WPOPugc2txRTlPn1

    • Remove the back panel using the metal spudger tool.

    • You will not be able to remove the back panel entirely. Make sure to separate the back panel slowly so that you do not rip the orange ribbon inside.

    • The metal spudger tool can cause damage to internal components.

    • Flip the device over with the screen facing upward and open the device.

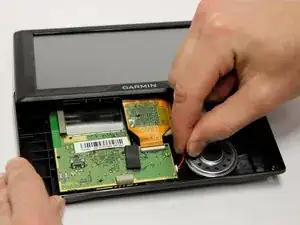

  3. unV5ALNvrnXYFny6
    unV5ALNvrnXYFny6
    AkBFS2d26EJct2GE
    nBVSGfIMj14Q6BoW

    • Use a plastic spudger tool to lift the wires from behind the motherboard.

    • Carefully disconnect the wires attaching the speaker to the motherboard using your fingers.

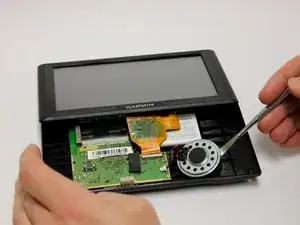

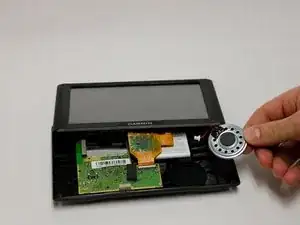

  4. WJtrrCBHbZDhjLPQ
    WJtrrCBHbZDhjLPQ
    oMasTT4vKemHxGvU

    • Using a plastic spudger and your fingers, remove the speaker from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
