Garmin Edge 1000 Back Cover Replacement

Geschrieben von: Taylor McNees
  • Kommentare: 3
Garmin Edge 1000 Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

If there is an issue with your Garmin 1000 Edge (M/N F4ACGQ00) mount, use this guide to replace the back cover of your unit.

The back cover houses the device’s SIM card and battery as well. This guide can be used to gain access to these components as needed.

  1. LMpyDXrhLPaDCsCA
    LMpyDXrhLPaDCsCA
    cPA3wsFIfsh3NHdl

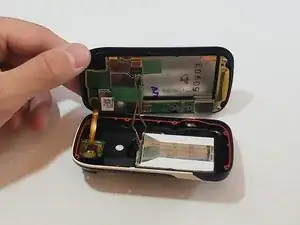

    • Be sure the device is properly powered all the way off before starting the replacement.

    • Hold the device front side down. Remove the eight T6 Torx screws along the backside of the device.

    • Pull the front side of the device apart from the back side.

    Does anyone know where to get this part? Garmin Edge 1000 Micro SD+SIM Card Tray Holder Replacement

    legist1 -

  2. qhsCJW2hcFL42lHM
    qhsCJW2hcFL42lHM
    4rMxHXKGFFIiOheK

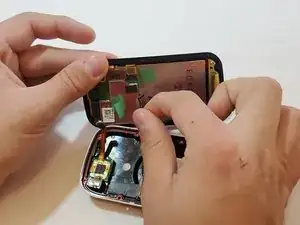

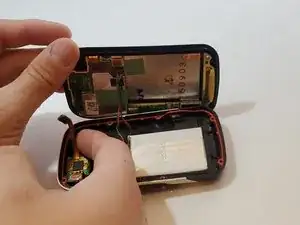

    • Disconnect the bronze SIM card flex cable from the motherboard with your finger.

    • Disconnect the battery cord to completely separate the front cover from the back cover of the device with your finger.

    does it require any glueing ?

    Grant Goodman -

    Is the power button part of the cover? My button has dallen apart.

    A Dullard -

Abschluss

To reassemble your device, follow these instructions in reverse order.
