Garmin Edge 1000 Micro SD+SIM Card Tray Holder Replacement

Geschrieben von: Taylor McNees

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

If your Garmin Edge 1000 has stopped charging, or holding a charge, use this guide to replace the Micro SD+SIM card tray holder.

Be sure the device is properly powered all the way off before starting the replacement.

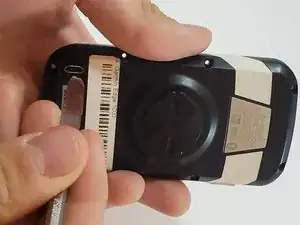

Hold the device front side down. Remove the eight T6 Torx screws along the backside of the device.
Pull the front side of the device apart from the back side.

Does anyone know where to get this part? Garmin Edge 1000 Micro SD+SIM Card Tray Holder Replacement

Disconnect the bronze SIM card flex cable from the motherboard with your finger.
Disconnect the battery cord to completely separate the front cover from the back cover of the device with your finger.

does it require any glueing ?

Is the power button part of the cover? My button has dallen apart.

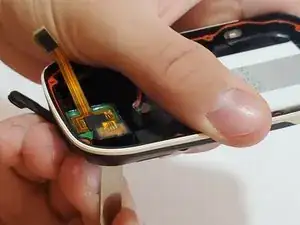

Take a metal spudger and use force to push the micro USB port out of its socket on the other end.

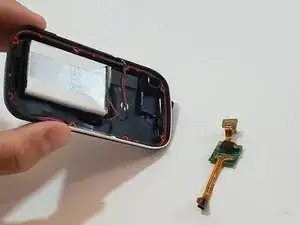

Use the metal spudger once again to use force and push the SIM card port out of its socket. This will allow you to remove this piece entirely and insert a new charging port into the same place.
