Garmin Edge 1000 Motherboard Replacement

Geschrieben von: Taylor McNees
  • Kommentare: 6
Garmin Edge 1000 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

7 Minuten

Einleitung

If your Garmin Edge 1000 has started to malfunction, its motherboard may need replacement. In this guide, you will learn how to replace the Garmin Edge 1000 motherboard. The motherboard is the part of the computer that allows communication between all of the parts of the computer so be careful replacing this part, as it the most crucial part of a computer.

  1. LMpyDXrhLPaDCsCA
    LMpyDXrhLPaDCsCA
    cPA3wsFIfsh3NHdl

    • Be sure the device is properly powered all the way off before starting the replacement.

    • Hold the device front side down. Remove the eight T6 Torx screws along the backside of the device.

    • Pull the front side of the device apart from the back side.

    Does anyone know where to get this part? Garmin Edge 1000 Micro SD+SIM Card Tray Holder Replacement

    legist1 -

  2. qhsCJW2hcFL42lHM
    qhsCJW2hcFL42lHM
    4rMxHXKGFFIiOheK

    • Disconnect the bronze SIM card flex cable from the motherboard with your finger.

    • Disconnect the battery cord to completely separate the front cover from the back cover of the device with your finger.

    does it require any glueing ?

    Grant Goodman -

    Is the power button part of the cover? My button has dallen apart.

    A Dullard -

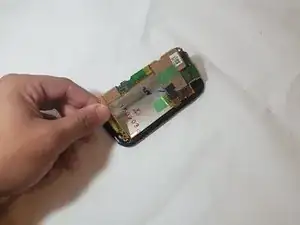

  3. 2EfmQ6N5c4QrJ1rI
    2EfmQ6N5c4QrJ1rI
    4Fvi1bZwOsaRhT5M
    G2GJnyh6tY1XgG1G

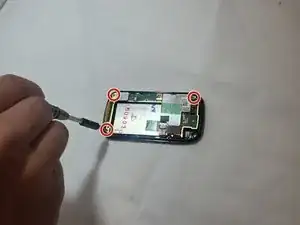

    • Remove the three T6 Torx screws to release the motherboard.

  4. adXASUhbDFPAGATw
    adXASUhbDFPAGATw
    hKSL3ovdTNtF1Y2F

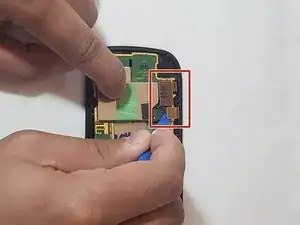

    • Disconnect the two bronze tabs connected to the motherboard using an opening tool.

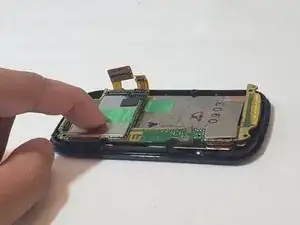

  5. TXfXPt2HdEAobLTq
    TXfXPt2HdEAobLTq
    eEn5wIdjpBGKCEHy

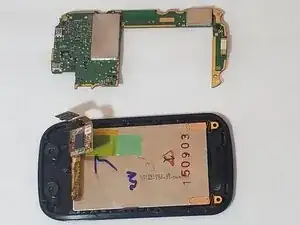

    • Pull the motherboard out from the device.

    Garmin Edge 1000 scheda madre prezzo

    Marco Tramonto -

Abschluss

To reassemble your device, follow these instructions in reverse order.
