Garmin Fenix 3 HR Motherboard Replacement

Geschrieben von: Jacob Smiley
  • Kommentare: 3
Garmin Fenix 3 HR Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

This guide will give you all the necessary steps to change your old motherboard for a new one.

  1. x3eSfnOsa6umwpmD
    x3eSfnOsa6umwpmD
    AioGKNVCbOEOhROM

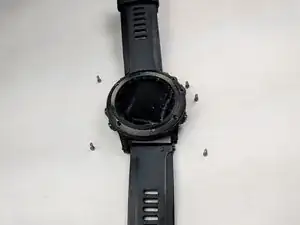

    • Remove the five 7mm screws with H1.3 hex screwdriver.

  2. W4u645ST1SUJMZ4d
    W4u645ST1SUJMZ4d
    LBfkW3NiHoPVT6D3

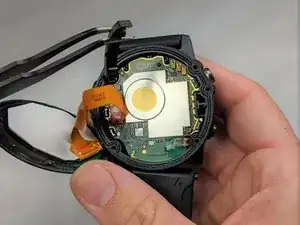

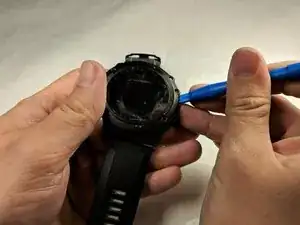

    • Use a plastic opening tool to remove the face of the device to expose the inner components.

    • There is one metal piece at the top of the face that is loose. This is the GPS antenna which will need to be removed as well.

    • Be careful of the ribbon that connects the motherboard to the display.

  3. 4n6bwimciOfqMxLw

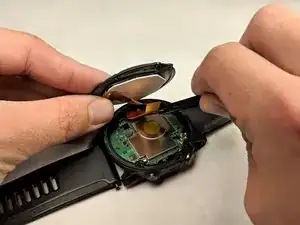

    • Disconnect this ribbon from the motherboard using tweezers.

  4. if2XYpLvnIYCNR2F
    if2XYpLvnIYCNR2F
    TfeohqoMBNtJYn6q

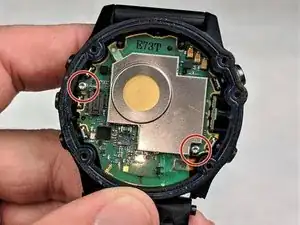

    • Using a T5 screwdriver, remove the two 5mm screws.

    • The motherboard should move freely.

  5. nMHOOGYyGHkEWGpV

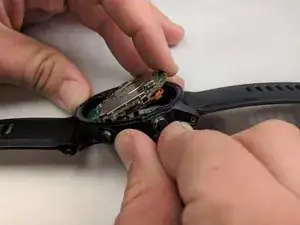

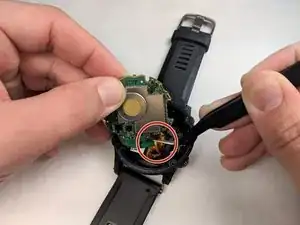

    • Another ribbon is attached from the underside of the motherboard. Disconnect this ribbon.

  6. USwYDPkTOjOkMfCf

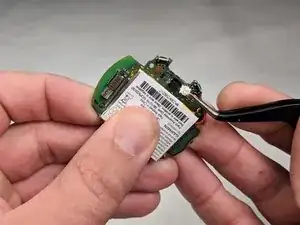

    • Disconnect wires connecting battery to motherboard.

  7. DhGFNcMYVE3NxvQY

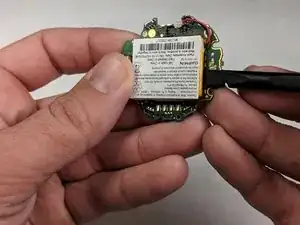

    • The battery is glued to the motherboard and will need pried off with a nylon spudger.

  8. xySRRnnKwSlQKfX6

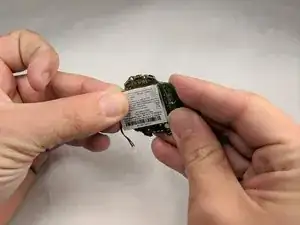

    • Now attach battery to new motherboard and reassemble.

    Where can i get a new motherboard

    merlion chan -

Abschluss

To reassemble your device, follow these instructions in reverse order.
