Garmin Fenix 3 Motherboard Replacement

Geschrieben von: Adam Estabrook
  • Kommentare: 16
Garmin Fenix 3 Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

5 Minuten

Einleitung

Even the best electronics die out over time, especially devices used in harsh conditions. This guide will show how to replace the motherboard of your Garmin Fenix 3 if the electronics are showing signs of failure. You will need a T6 Torx screwdriver, a T5 Torx screwdriver, and a spudger.

  1. gFNKTS25ByksjIbN
    gFNKTS25ByksjIbN
    ieYarQMW54mYIDHk

    • Use a T6 screwdriver to remove the five 1.7 mm screws from the watch face.

  2. hGP4TKAUKaHPxtVZ

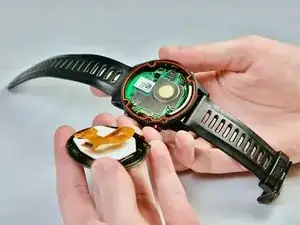

    • Carefully lift the face off the watch base.

    • Do not yank the face. A ribbon connector connects the face and the motherboard, and yanking could result in damage to the motherboard or ribbon.

  3. YcTiahGxtqjcqb16

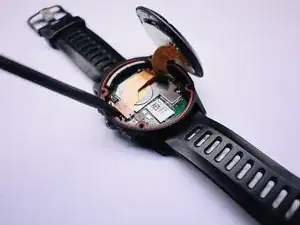

    • Use a spudger to lift up and free the screen ribbon cable's press-fit connector from the motherboard.

  4. JaOWBZPorPLZUMdt

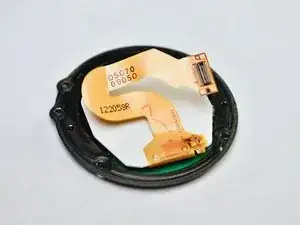

    • Set the watch face aside.

    Hi can i replace only lcd because my sapphire glass is ok

    Drazen Popadic -

  5. PW4eDJu2SFb2WBPX

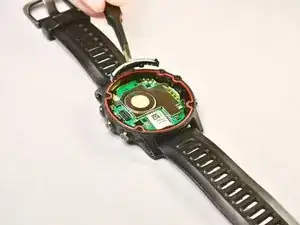

    • Locate the antenna, which is located on the motherboard.

  6. yvSJPkI5DKMbH1Yf

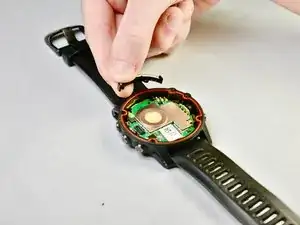

    • Carefully remove the antenna, and set it aside.

  7. w2QXMIXYEBsxhHTE
    w2QXMIXYEBsxhHTE
    qVMgXUFDq2GPGqft
    PF5iYbXIQqOBRbu3

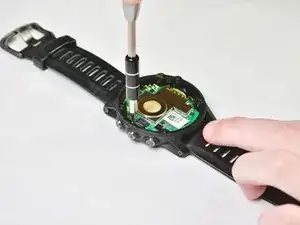

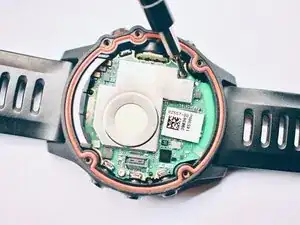

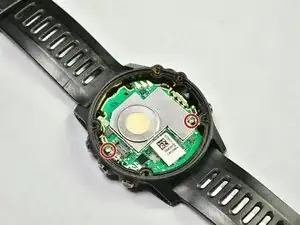

    • Locate the two silver 1.4 mm T5 screws, and carefully unscrew them.

    • To avoid losing or dropping the screws once they are loose, use tweezers to extract them.

  8. wm5UvQMxmIhk5fpe
    wm5UvQMxmIhk5fpe
    Mo2rIALs1hTqcVoU

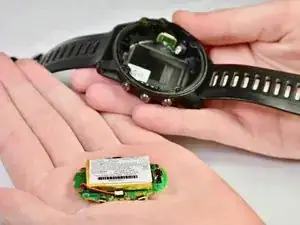

    • Lift the watch and turn it over one hand. The motherboard should fall out easily.

    • When reinserting your motherboard, slide it in instead of pressing it. The motherboard must go beneath a lip at the base of the watch body.

  9. VdJP63OFDrteWbJN

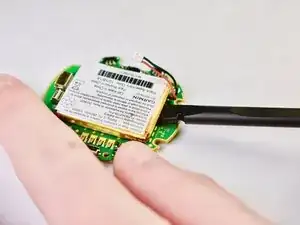

    • Using the spudger, separate the motherboard from the battery, which are both held together with a mild adhesive.

  10. mebgMgwakGFHj6xZ

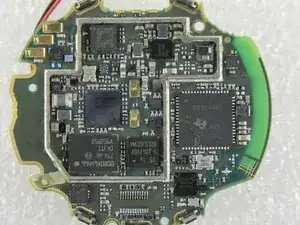

    • Motherboard without metal cover

    Where can I buy one as replacement ?

    arnaud.lhote -

Abschluss

To reassemble your device, follow these instructions in reverse order.
