Garmin Fenix 3 Wrist Strap Replacement

Geschrieben von: Adam Estabrook
  • Kommentare: 1
Garmin Fenix 3 Wrist Strap Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

This replacement will require use of both hands and unusual hand placement. Pay close attention to the images to ensure success in replacing this part.

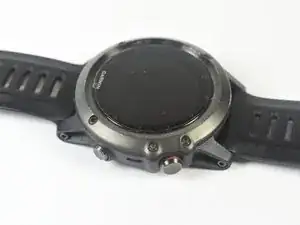

  1. ZdZPXyulvrRB5ifZ

    • Identify the screws near the bases of two wrist straps.

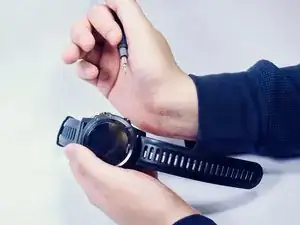

  2. wFOJOkxjg1mkoP6Y

    • Hold one screwdriver firmly in one hand, as demonstrated in the image.

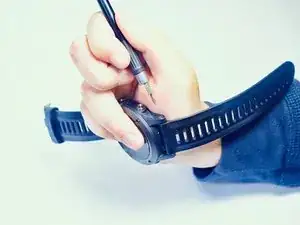

  3. Ne5DrNWcEVUwHvtT

    • Secure the watch in the same hand, positioning the screwdriver over the screw.

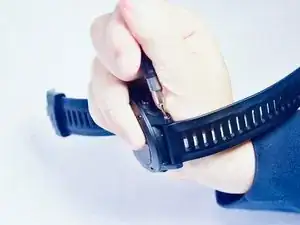

  4. ILvBJB2Q4hdsHuTR

    • Once the watch is secure, insert the screwdriver into the screw, and hold firmly.

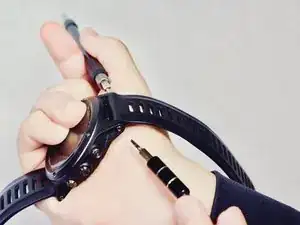

  5. WmPQPBymdi2kxwfv

    • With the watch and the first screwdriver secure, insert the second screwdriver into the opposite screw.

    • Holding the first screwdriver firmly, unscrew using the second screwdriver.

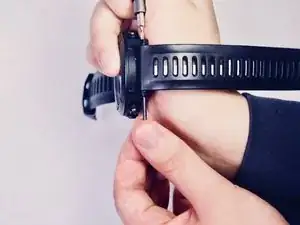

  6. XVLBnB3S4eQiZAgA

    • Remove the bar from the wrist strap to release.

    • Depending on which side the bar is inserted, you may end up loosening the screw instead of the bar. Keep this in mind to avoid losing your screws.

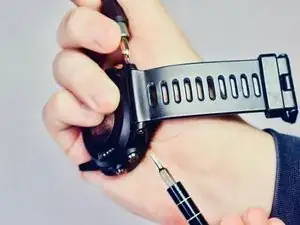

  7. OYP62CsvMEHcY4FJ

    • Repeat this process for the other side, adjusting the position of the watch accordingly.

    If you can't manage the hand contortions, you can cut the old strap off with a sharp knife and use needle-nose pliers to grip the bar.

    louisdillonsavage -

Abschluss

To reassemble your device, follow these instructions in reverse order.
