Einleitung

After months or years of sweat, dust and water your device can become very dirty.

A great problem is non-responsive buttons that can be easily cleaned.

  1. PsTRWRavB1DWELjS
    PsTRWRavB1DWELjS
    egd1G2WMLfBQ4lva

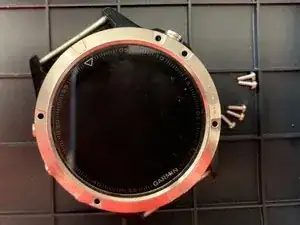

    • Remove the strap

    • Power-off the device

    • Remove the screws on the front using the Torx T4 screwdriver

  2. A1BdElvHwBHhFXg6

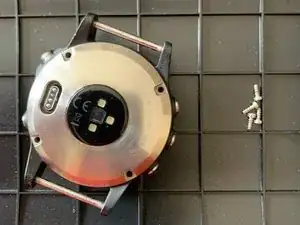

    • Remove the screws on the rear using the Torx T6 (or TR6) screwdriver

  3. TlvZ2Cv1eCaY5cXF
    TlvZ2Cv1eCaY5cXF
    thReaKvfIXENtBco

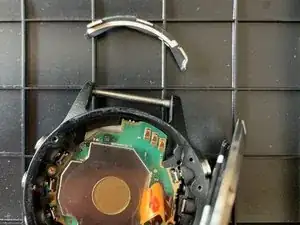

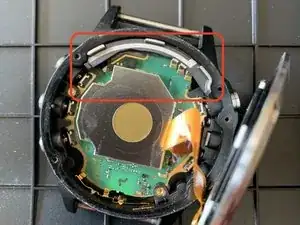

    • Remove the small grey arc on the top of the device with the tweezers

  4. f1TeNZpdSMMJJPrh

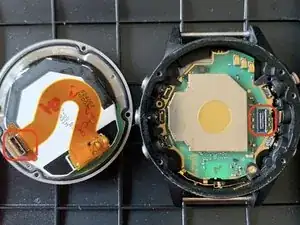

    • With the tweezers, remove the pin connector linked to the screen

    • Remove the screen

  5. ZAvLwAhpVX5r4WJI
    ZAvLwAhpVX5r4WJI
    1J12eFuaGCQwlWTF

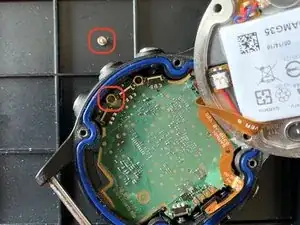

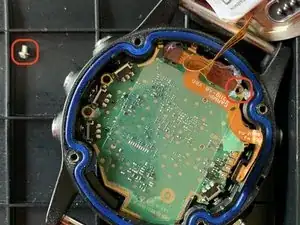

    • Remove the 2 screws on the motherboard using the PH #000 screwdriver

  6. fugO3MxuYg6u2MYy
    fugO3MxuYg6u2MYy
    YXfZQSA6VImwg15V

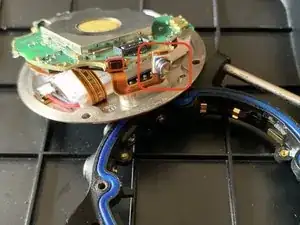

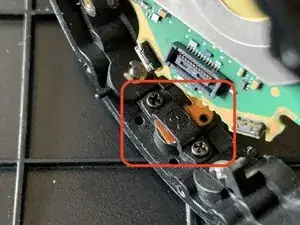

    • Remove the 2 screws holding the sensor between the buttons on the right side of the case

    • With the tweezers, remove the sensor and detach the case from the motherboard

  7. H24WjrtjiAbXcvjN
    H24WjrtjiAbXcvjN
    oEjjnZcTC6AeqWrv
    jOJ3fJgoxsWmlD5f

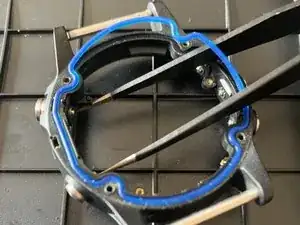

    • Remove the seal around the circumference of the watch casing, as you will be handling the casing a lot and you don’t want to risk tearing the gasket.

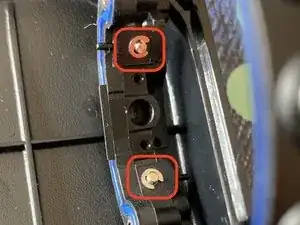

    • Using the tweezers, remove the circlips around every button very carefully.

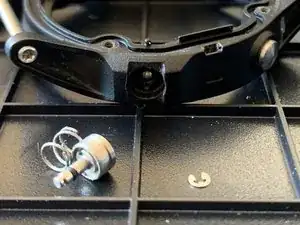

    • When the circlips are removed, you can pull the buttons off. Do this step carefully because you will also find a return spring inside every button hole

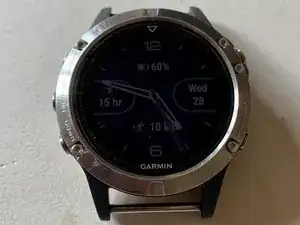

  8. B6fbryI1iyPjDXEa
    • Clean the case, including the hole of the buttons

    • Clean the buttons and the springs

    • (OPTIONAL) You can lubrificate the buttons before re-inserting them in the case

    • Reassemble the watch
