Garmin Forerunner 25 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

The screen is a vital component to a digital smart watch. With the right tools, replacing the screen can be done efficiently and effectively.

  1. Rb42WvUxVjfGnAat

    • Power off your watch before disassembling it.

    • Place the watch on a hard surface with the screen facing down.

    • Unscrew the four 7.0 mm screws located at each corner using a T5 screwdriver.

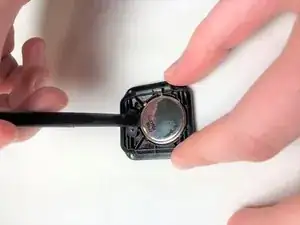

  2. hGZrRvHlHqkdKHEV

    • Pry the old battery out using a plastic spudger.

  3. nmBvNkpouysN2Egg

    • Unscrew the two T4 6 mm screws located on both sides of the motherboard.

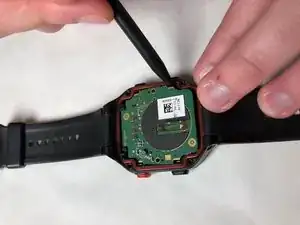

  4. ZofDnI2oEO2AOtNa

    • Lift the motherboard up using a plastic spudger.

    • Ribbon cables are still attached underneath—be careful when prying the motherboard up.

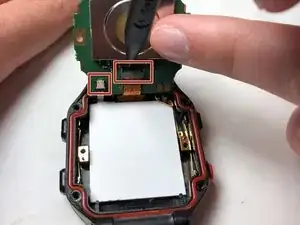

  5. wHZcSW3CmCisJyLv

    • Flip the ZIF connectors using a plastic spudger tool.

    • Remove the motherboard.

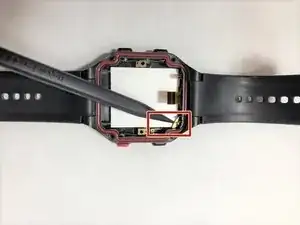

  6. RWsRDdNF3OfGFg3Z

    • Remove gold piece in the corner using the pointed side of the 4 spudger.

    • Any spudger with a pointed end should work to remove this piece.

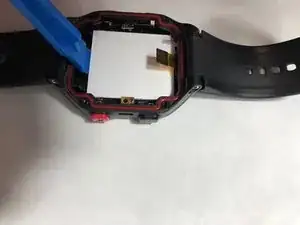

  7. qZyUZxGSgxBQTx3A

    • Pry the screen up with a plastic opening tool.

    • Any plastic tool with a flat edge should work to remove the screen.

    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
